SURFACE MOUNT SUPER FAST RECTIFIER
ES3A - ES3J

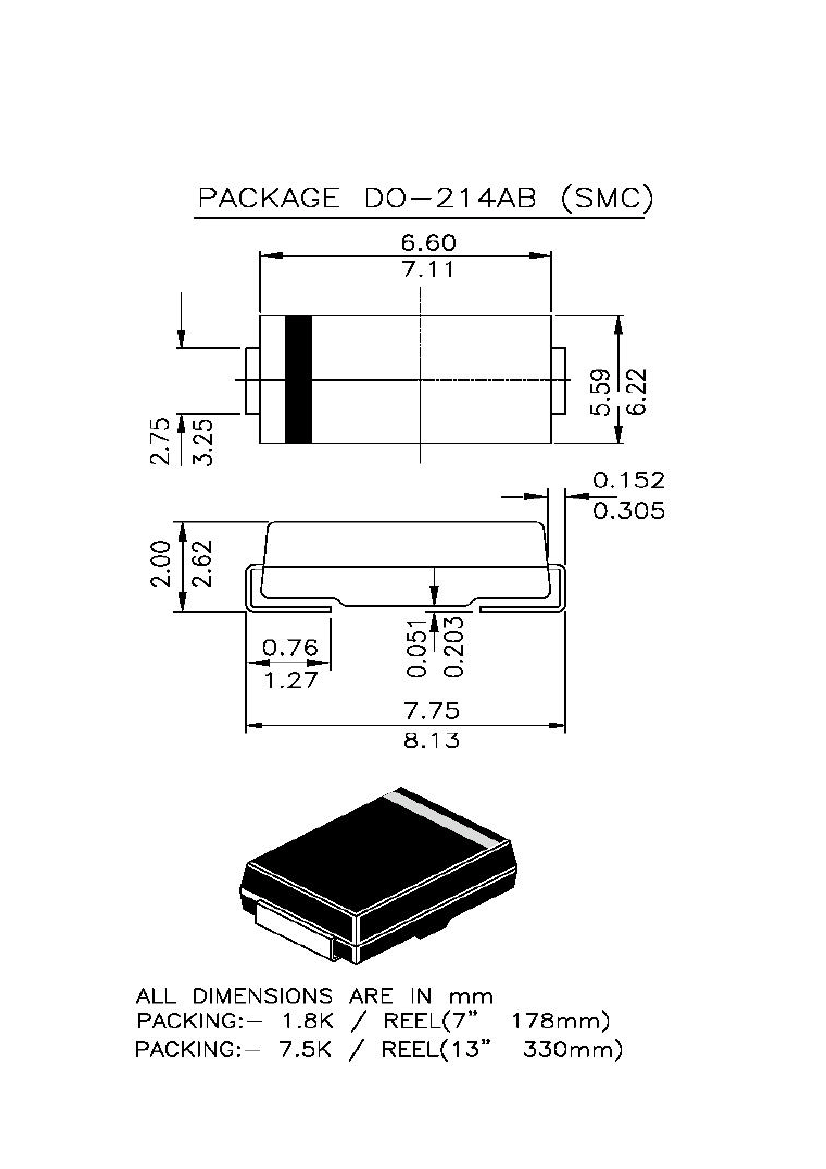

DO-214AB (SMC)
Surface Mount Package
Polarity: Colour band denotes Cathode end
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating at 25ºC Ambient Temperature unless specified otherwise. Single Phase, half wave 60Hz, Resistive or
Inductive Load, for Capacitive Load current derate by 20%)
DESCRIPTION
Maximum Peak Repetitive Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
L
=75
o
C
Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on
rated load
Maximum Instantaneous Forward Voltage at
I
F
=3.0A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction Capacitance
Thermal Resistance Junction to Ambient
Operating Junction and Storage Temperature
Range
T
a
=25
o
C
T
a
=100
o
C
SYMBOL ES3A ES3B ES3C ES3D ES3E ES3G ES3J
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
*t
rr
**C
J
***R
th (j-a)
T
j,
T
stg
0.95
5.0
100
35
45
TYP47
- 65 to +150
50
35
50
100
70
100
150
105
150
200
140
200
3.0
100
1.25
300
210
300
400
280
400
600
420
600
UNIT
V
V
V
A
A
1.7
V
µA
ns
pF
ºC/W
ºC
Maximum Reverse Recovery Time
*Reverse recovery condition I
F
=0.5A, I
R
=1A, t
rr
=0.25A
**Measured at 1MHz and applied reverse voltage 0f 4.0V D.C
*** Mounted on P.C.B with "0.2 x 0.2" ( 5 x 5mm ) Copper Pad Areas
ES3A_3J Rev300310E
