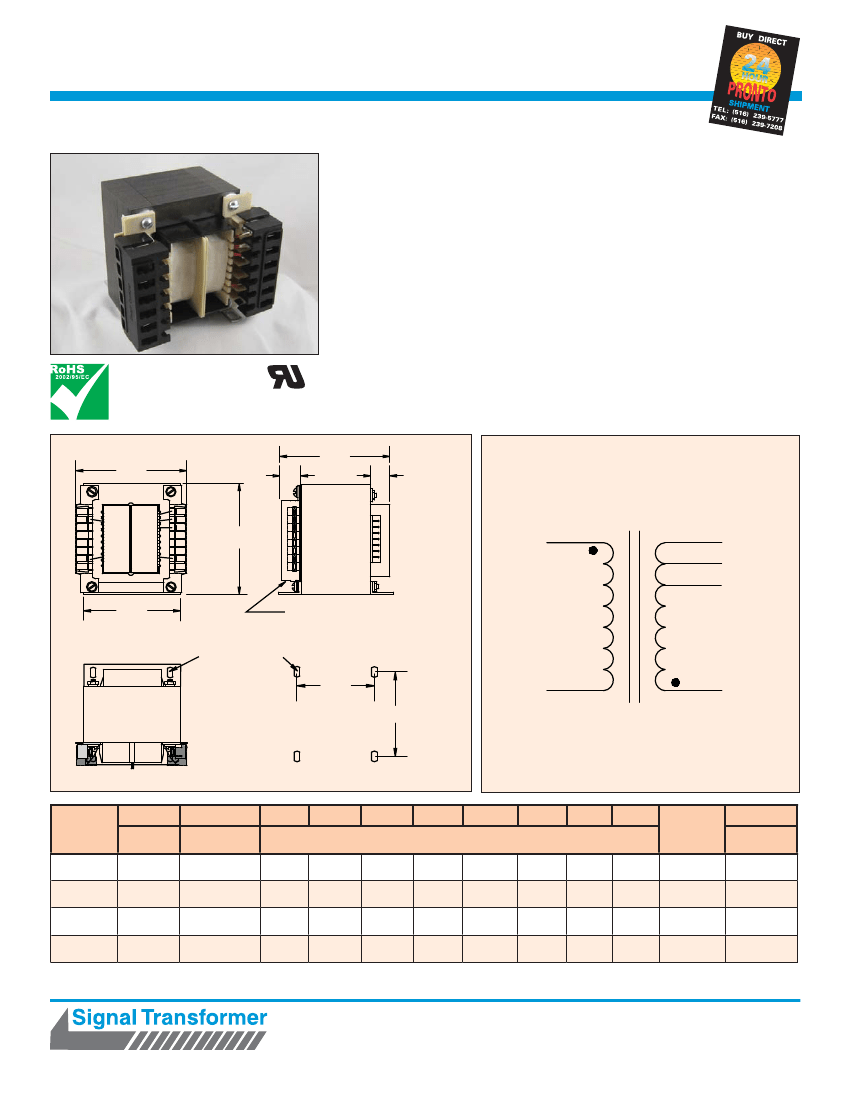

Signal 277V/120V Stepdown Transformers

Allows Installers to Derive a Fully Isolated 120V Source from a 277V Line

Ideal for power task lighting and service receptacles.

General Specifications

• Power - 300, 450, 600, and 1000VA ratings

• Dielectric Strength - 4000V

• Primary: 277V, 60 Hz

• Secondary:120V with taps at 115V and 125V for high/low line adjustment

• Insulation System - UL 1446 Class F (155º C)

• Leakage Current - <30 uA

• Touch Safe terminals (IP20 type) offer a screw/binding clamp for hard wiring and 3/16”

and 1/4” Fast-On connection

• Flame Rating - UL 94-V0

Agency Certifications:

• UL 1446 File #E66312

• Compliant with the following domestic and international standards

• UL5085-1-2, UL 506, UL 60950, UL 197, UL 1262

• IEC 60950, IEC 61558-2-4, IEC 61010-1

• CSA 22.2 #66-1-2

• VDE 0570, 0605, 0551, 0550

• CE

File #E66312

0V 1

125V

5 120V

4 115V

Modular terminal with 3/16" with

optional 1/4" quick connect and

screw-clamp connection capabilities.

Clearance slot (4)

for mounting screw

60Hz

277V 2

Contact techhelp@signaltransformer.com

for lower voltage applications.

Part

Number

Size

300

450

600

1000

Sec RMS

Rating

120V @ 2.5A

120V @ 3.8A

120V @ 5A

120V @ 8.33A

Inches

(mm)

Mounting

Screw

Weight

lbs

(kg)

7.0

(3.18)

11.0

(5)

14.3

(6.49)

22.0

(10.0)

SLT-300

SLT-450

SLT-600

SLT-1000

4.20

(106.68)

4.46

(113.28)

4.46

(113.28)

4.89

(124.20)

4.08

(103.51)

4.33

(110)

5.08

(129.03)

5.70

(144.78)

3.75

(95.3)

4.50

(114.3)

4.50

(114.3)

5.25

(133.4)

1.33

(33.8)

1.33

(33.8)

1.33

(33.8)

1.33

(33.8)

0.62

(15.9)

0.75

(19.1)

0.75

(19.1)

0.87

(22.2)

3.12

(79.4)

3.75

(95.3)

3.75

(95.3)

4.37

(111.1)

2.50

(63.5)

3.00

(76.2)

3.00

(76.2)

3.50

(88.9)

3.12

(79.4)

3.25

(82.6)

4.06

(103.2)

4.68

(119.1)

#10

1/4”

Custom versions available upon request.

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208

sales@signaltransformer.com • techhelp@signaltransformer.com

www.signaltransformer.com
