Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
SCHOTTKY BARRIER RECTIFIERS
SB120 - SB1A0

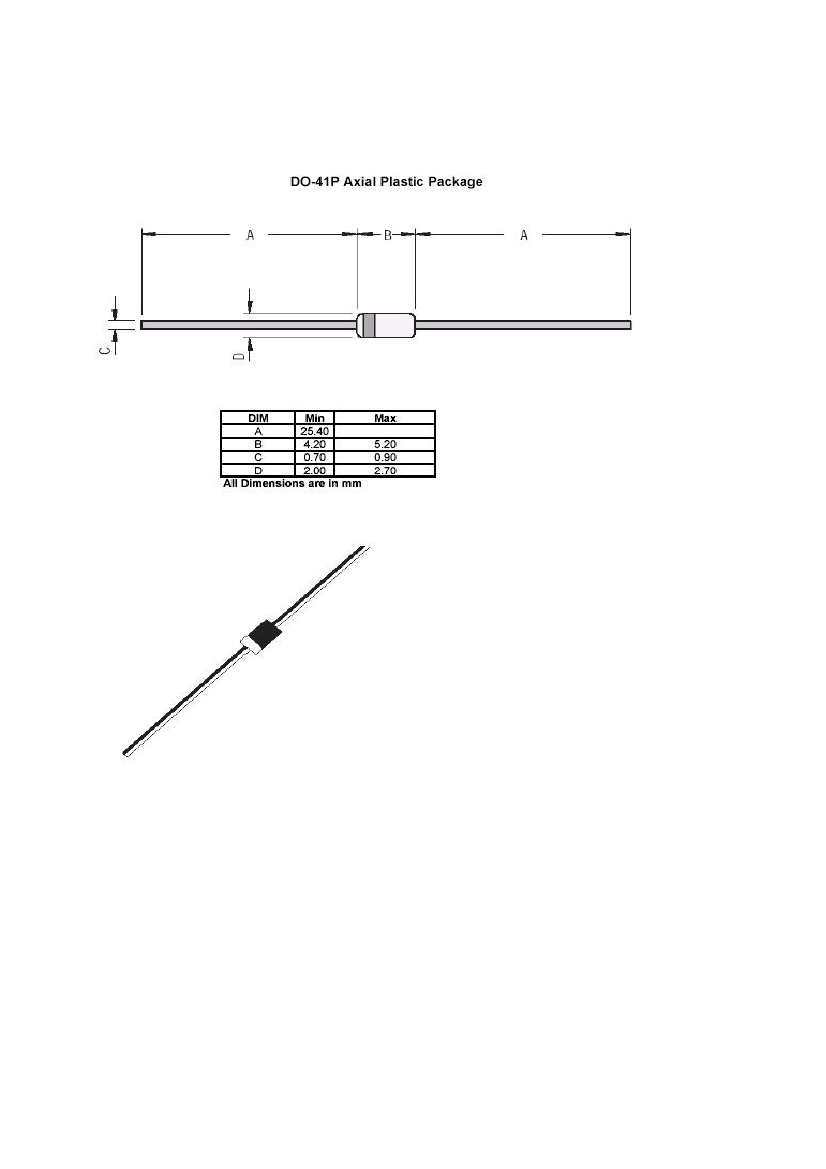

DO-41P
Axial Lead Plastic
Package
For use in Low Voltage, High Frequency Inverters, Free Wheeling Diodes and Polarity Protection Applications
Maximum RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating @ 25ºC Ambient Temperature unless specified otherwise. Single Phase, half wave Resistive or
Inductive Load. For Capacitive Load, Derate by 20%)
DESCRIPTION
SYMBOL SB120 SB130 SB140 SB150 SB160 SB180 SB1A0 UNIT
Maximum Peak Repetitive Reverse Voltage
V
RRM
20
30
40
50
60
80
100
V
Maximum RMS Voltage
Maximum DC Blocking Voltage
Average Forward Rectified Current
0.375"(9.5mm) Lead Length @ T
L
=75
o
C
Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on
rated load
Maximum Forward Voltage @ I
F
=1.0A
o
Maximum DC Reverse Current T
a
=25 C
@ Rated DC Blocking Voltage T
a
=100
o
C
Junction Capacitance
V
RMS
V
DC
I
(AV)
I
FSM
*V
F
*I
R
***C
j
**R
th (j-a)
**R
th (J-L)
T
j
T
stg
14
20
21
30
28
40
35
50
1.0
40
42
60
57
80
71
100
V
V
A
A
0.55
0.5
10
0.7
0.75
0.83
V
mA
mA
pF
ºC/W
ºC/W
TYP110
TYP50
TYP15
-65 to +125
- 65 to +150
-65 to +150
Thermal Resistance Junction to Ambient
Thermal Resistance Junction to Lead
Operating Junction Temperature Range
Storage Temperature Range
ºC
ºC
* Pulse Width=300µs, 1% Duty Cycle.
µ
** Thermal Resistance (from Junction to Ambient) Vertical P.C.B. Mounted with 1.5 x 1.5" (38 x 38mm) Copper
Pads
***Measured @ 1MHz and Reverse Voltage 0f 4V
SB120_SB1A01Rev200105E
Continental Device India Limited
Data Sheet
Page 1 of 5
Customer Notes
SB120 - SB1A0
DO-41P
Axial Lead Plastic
Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for
inaccuracies or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or
use of any CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not
designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as individual
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or
applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdilsemi.com
SB120_SB1A01Rev200105E
Continental Device India Limited
Data Sheet
Page 5 of 5
