2000 MODULAR CONSOLE- SERIES

ASSEMBLY INSTRUCTIONS FOR

BASE COVER TO BASE UNIT

BUL10071

REV.

PAGE 1 OF 1

PRE - ASSEMBLY INSTRUCTIONS:

Caution:

Check gasket on top of base unit for

damage before assembly. If cut or torn,

contact Hammond Manufacturing for

immediate replacement.

Note:

When assembling total modular system

build from the floor up for assembly ease.

Plinth > Base Unit > Desk Unit > Turret

SEE

STEP D

FOR

INSTRUCTIONS

GASKET

SURFACE

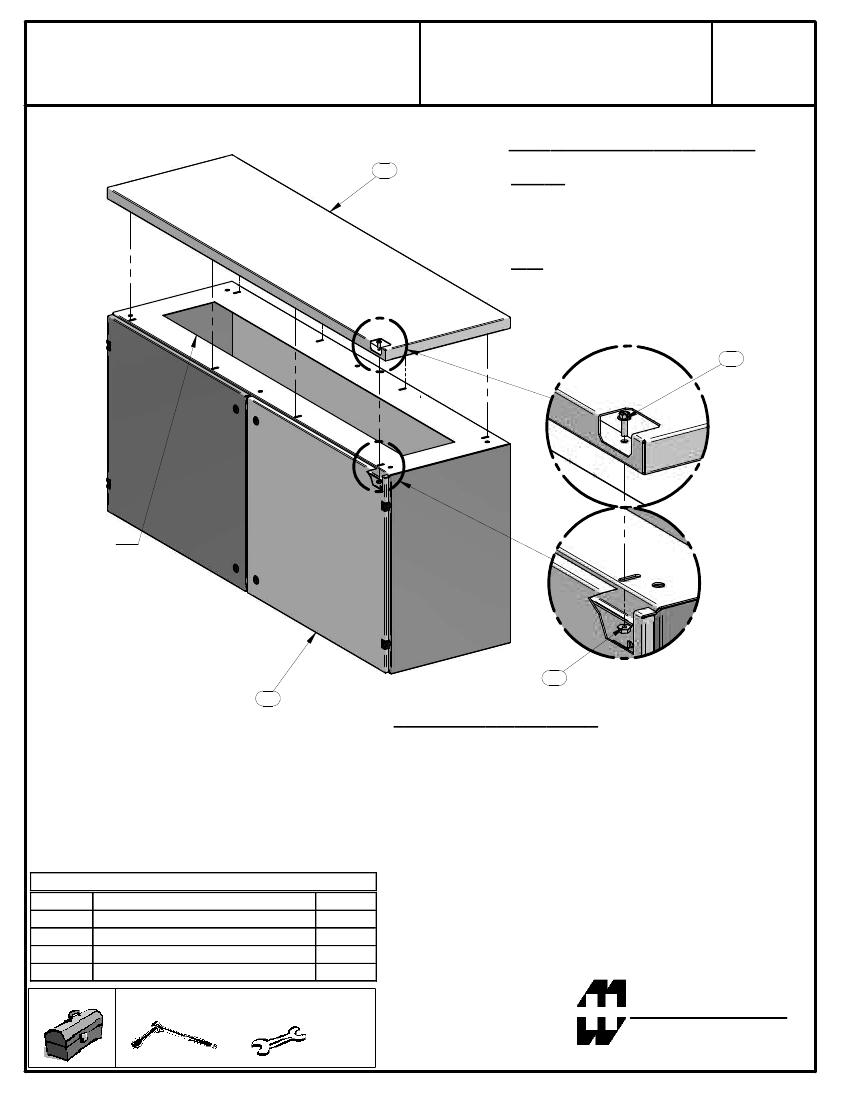

ASSEMBLY INSTRUCTIONS:

A) Open or remove doors for ease of assembly. This will allow for

visual alignment of mating parts. Avoid handling or hitting

gasket on objects.

B) Align base cover (item 1) over top opening in base unit (item 2).

Side edges of cover and base unit are to be flush.

PARTS LIST

ITEM No.

DESCRIPTION

BASE COVER

BASE UNIT

1/4-20 X 3/4 HEX CAP SCREW

1/4-20 KEP NUT

TOOL BOX

3/8, 7/16" Socket

Wrench

C) Front and rear holes in base cover bottom are to be aligned with

mounting slots on base top

QTY

4, 6, or 8

D) Once the base cover is seated properly on the base, assemble

using 1/4-20 x .75 hex hd. screws and 1/4-20 nuts (item 3 & 4)

provided. Torque screws and nuts to 115 in/lbs.

3/8, 7/16 Open

Wrench

HAMMOND

MANUFACTURING

ELECTRONICS GROUP

visit our website @

www.hammondmfg.com
