DC COMPONENTS CO., LTD.
R
BR805
THRU
BR810
RECTIFIER SPECIALISTS
TECHNICAL SPECIFICATIONS OF
SINGLE-PHASE SILICON BRIDGE RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts
CURRENT - 8.0 Amperes
FEATURES
* Surge overload rating: 125 Amperes peak
* Low forward voltage drop
BR-8/10
MECHANICAL DATA
*
*
*
*
*
*
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: MIL-STD-202, Method 208 guaranteed
Polarity: Symbols molded or marked on body
Mounting position: Any
Weight: 6.9 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

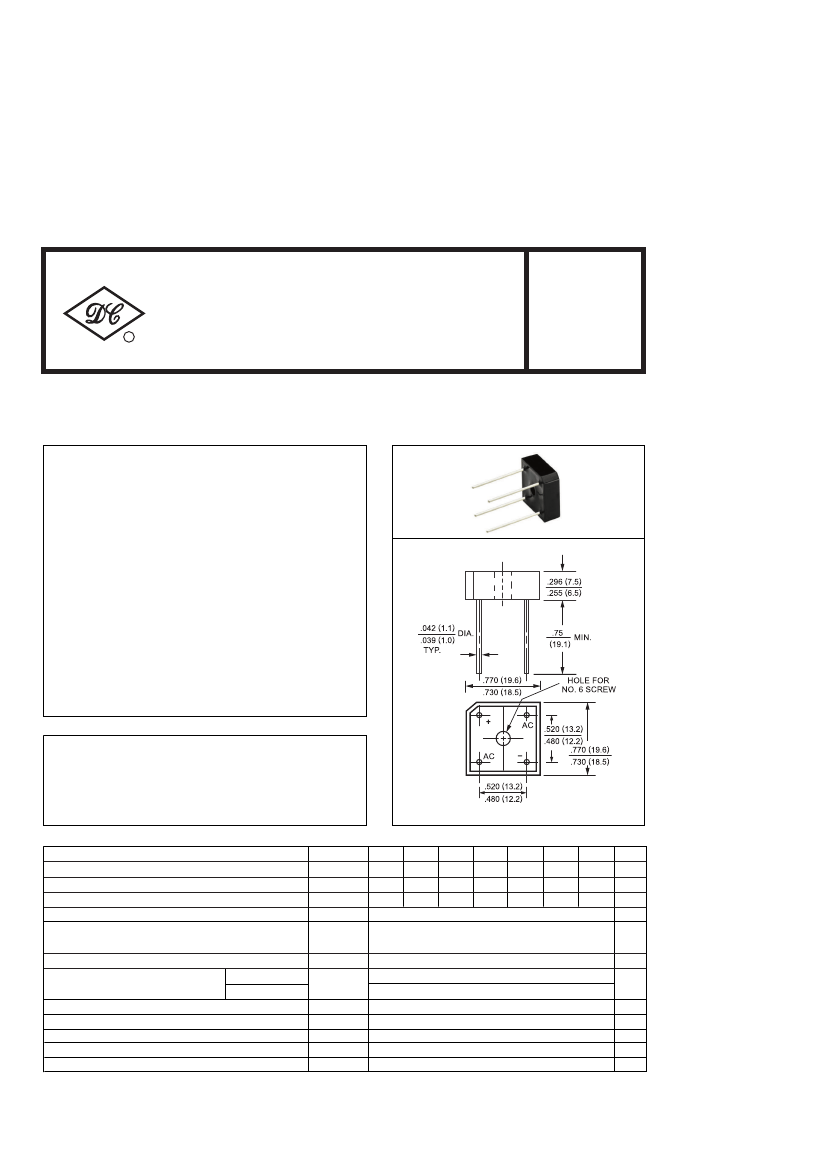

Dimensions in inches and (millimeters)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Output Current at Tc = 50 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Forward Voltage Drop per element at 4.0A DC
Maximum DC Reverse Current at Rated
DC Blocking Voltage per element
I
2
t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance ( Note1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Storage Temperature Range
NOTES : 1.Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
@T
A
= 25 C
@T
C
= 100 C
o
o
o
BR805
50
35
50
BR81
100
70
100
BR82
200
140
200
BR84
400
280
400
8.0
125
1.1
10
BR86
600
420
600
BR88
800
560
800
BR810
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
Volts
uAmps
A
2
Sec
pF
0
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
I
R
I
2
t
C
J
RθJ A
T
J
T
STG
500
166
200
21
-55 to + 125
-55 to + 150
C/W
0
0
C
C
2. Thermal Resistance from Junction to Ambient and from junction to lead mounted on P.C.B. with 0.5 x 0.5" (13x13mm) copper pads.

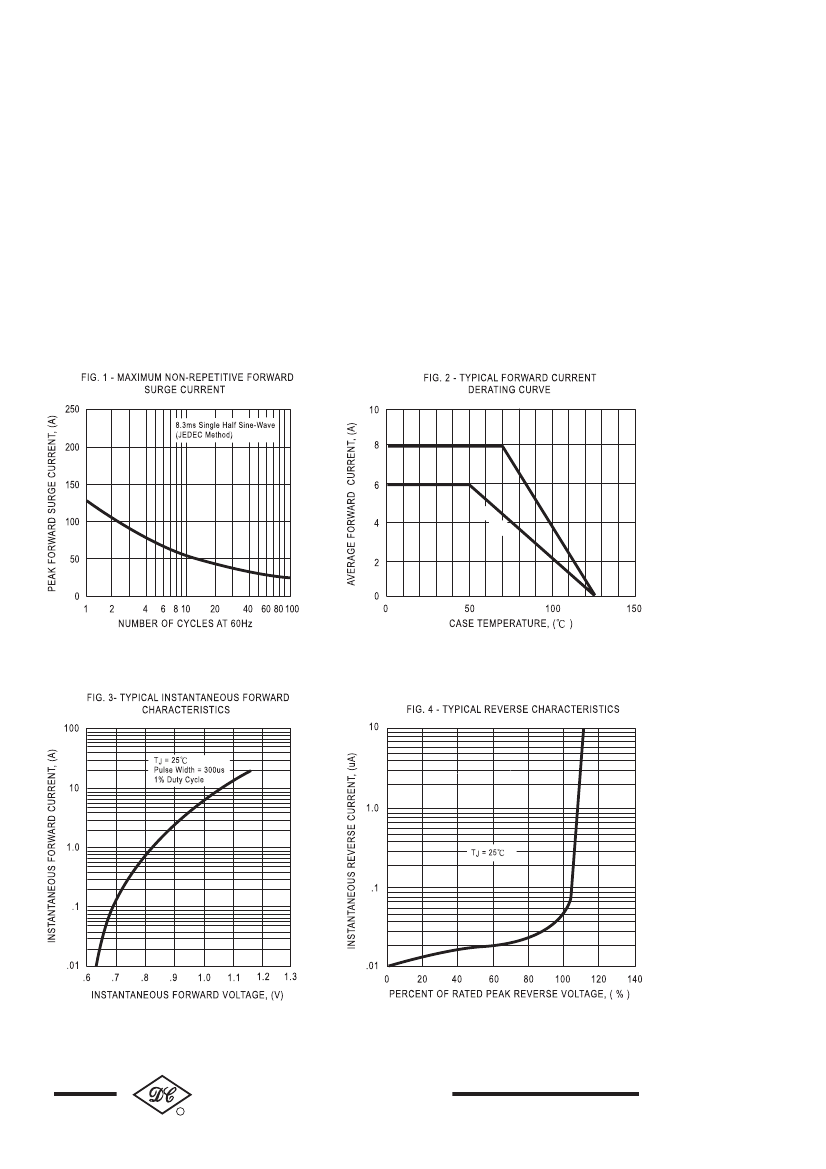

236
