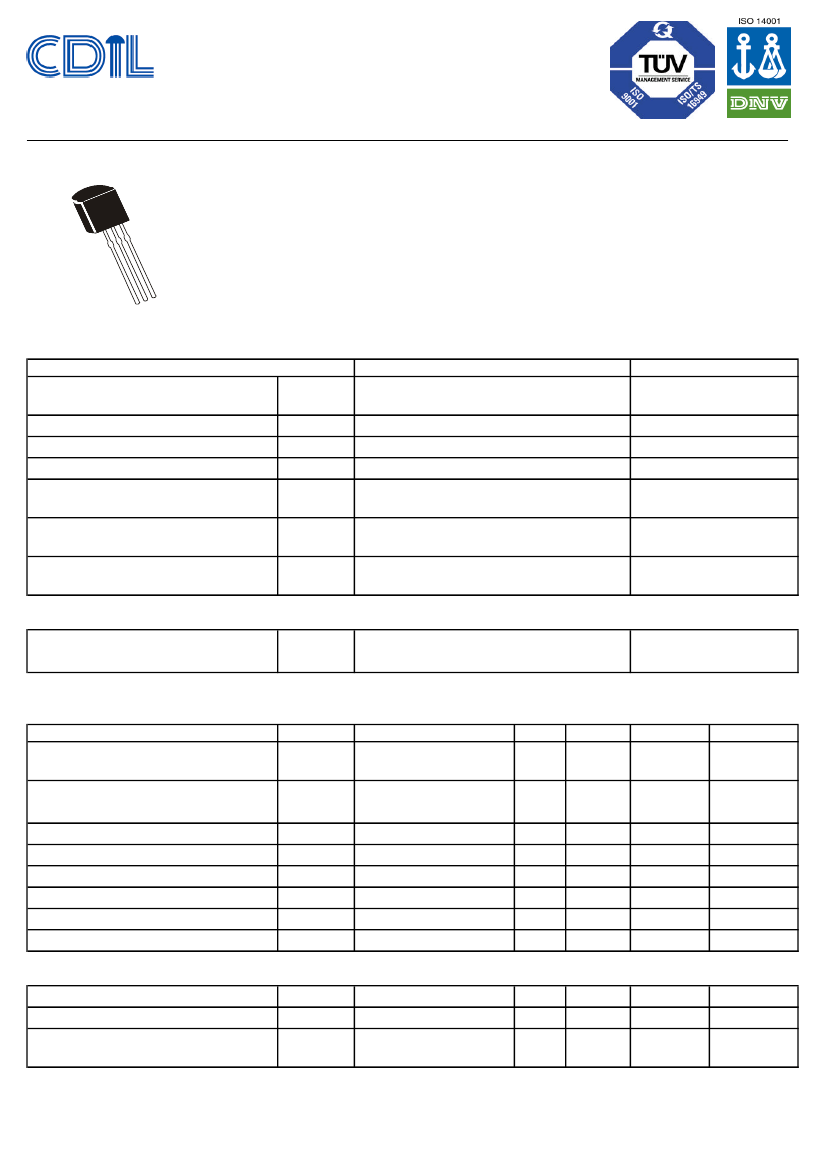

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
NPN SILICON PLANAR EPITAXIAL TRANSISTOR
2N5172
TO-92
Plastic Package
E
CB
ABSOLUTE MAXIMUM RATINGS(Ta=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
VALUE
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @ Ta=25ºC
Derate Above 25ºC
Power Dissipation @ Tc=25ºC
Derate Above 25ºC
Operating And Storage Junction
Temperature Range
THERMAL RESISTANCE
Junction to Ambient
Junction to Case
V
CEO
V
CBO
V
EBO
I
C
P
D
P
D
T
j
, T
stg
25
25
5
100
625
5
1.5
12
- 55 to +150
UNITS
V
V
V
mA
mW
mW/ºC
W
mW/ºC
ºC
R
th(j-a)
R
th(j-c)
200
83.3
ºC/W
ºC/W
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION
Collector Emitter Voltage
Collector Cut Off Current
Collector Cut Off Current
Emitter Cut Off Current
DC Current Gain
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
Base Emitter On Voltage
DYNAMIC CHARACTERISTICS
Current Gain-Bandwidth Product
Collector Base Capacitance
Small Signal Current Gain
SYMBOL TEST CONDITION
V
CEO
I
CBO
I
CES
I
EBO
h
FE
V
CE(sat)
V
BE(sat)
V
BE(on)
I
C
=10mA,I
B
=0
V
CB
=25V, I
E
=0
V
CB
=25V,I
E
=0,Ta=100ºC
V
CE
=25V, V
BE
=0V
V
EB
=5V, I
C
= 0
V
CE
=10V,I
C
=10mA
I
C
=10mA,I
B
=1mA
I
C
=10mA,I
B
=1mA
V
CE
=10V,I
C
=10mA
0.5
0.75
1.2
100
MIN
25
100
10
100
100
500
0.25
V
V
V
nA
µA
nA
nA
TYP
MAX
UNITS
f
T
C
Cb
h
fe
I
C
=2mA, V
CE
=5V
I
E
=0, V
CB
=0V,f=1MHz
V
CE
=10V,I
C
=10mA
f=1kHz
1.6
100
120
10
750
MHz
pF
Continental Device India Limited
Data Sheet
Page 1 of 3
2N5172
TO-92
Plastic Package

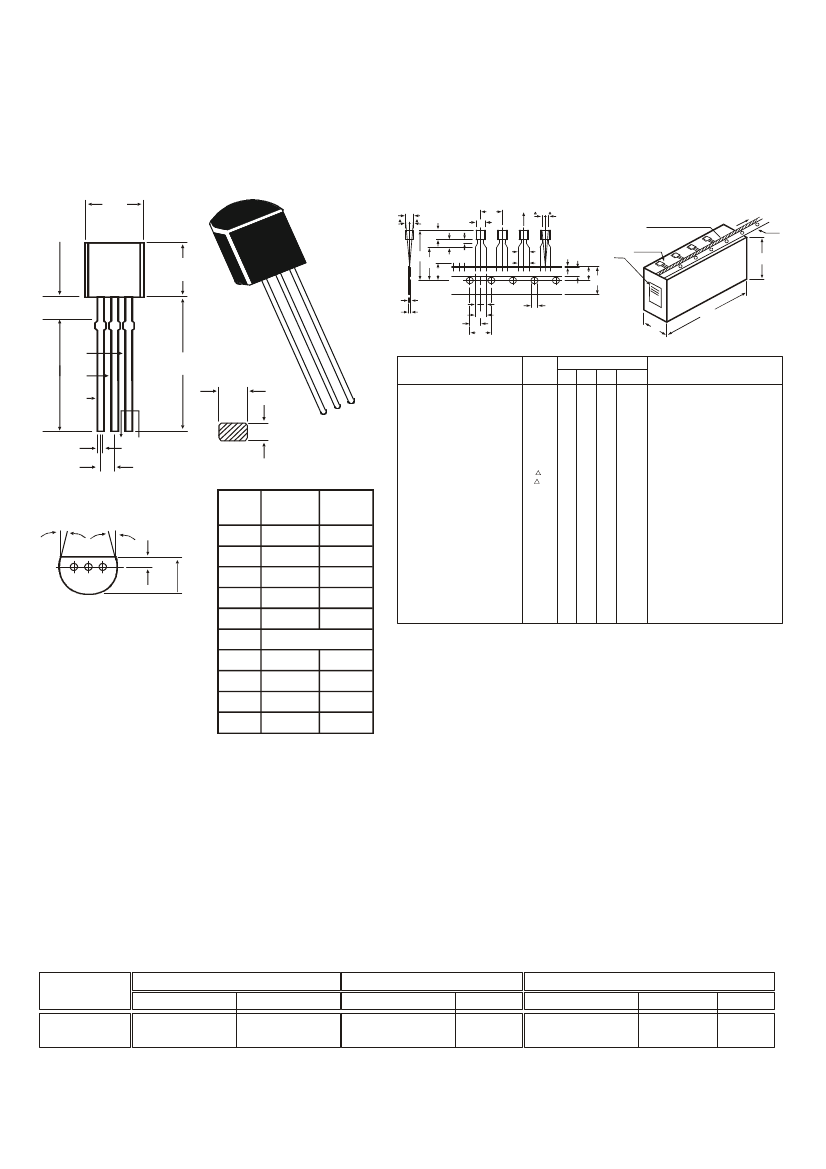

TO-92 Plastic Package
TO-92 Transistors on Tape and Ammo Pack
Dimension With 'L'
B
Uncontrolled
MECHANICAL DATA
h
T
h
A
H3 H2
H1
Ho
A1
P
(p)
h1
h1
Ammo Pack Style
Adhesive Tape on Top Side
D
FEE
Carrier
Strip
C1
C2
W2
Wo
W1
W
LABEL
FLAT SIDE
183
A
L
t1
t
F1
F
P2
Po
F2
Do
L
331
Solderability Ensured
42
Beyond 'L'
K
1
2
3
D
G
A A
Flat Side of Transistor and
Adhesive Tape Visible
2000 pcs./Ammo Pack
ITEM
SPECIFICATION
SYMBOL
A1
A
T
P
Po
P2
F
h
h1
W
Wo
W1
W2
Ho
H1
L
Do
t
F1, F2
H2
H3
| C1 - C2 |
(P)
MIN. NOM. MAX.
4.0
4.8
3.9
12.7
12.7
6.35
5.08
0
0
18
6
9
0.5
16
23.25
11.0
4
1.2
2.54
0.45
1.45
3.0
0.22
+0.4, -0.1
%%P0.2
t1 0.3 - 0.6
4.8
5.2
4.2
%%P1
%%P0.3
%%P0.4
+0.6
-0.2
1.0
1.3
%%P0.5
%%P0.2
+0.7
-0.5
%%P0.2
%%P0.5
CUMULATIVE PITCH ERROR 1.0 mm/20 PITCH
TO BE MEASURED AT BOTTOM OF CLINCH
TOL .
REMARKS
D
3
E
2
1
SEC AA
DIM
MIN.
4.32
4.45
3.18
0.41
0.35
5 DEG
1.14
1.14
12.70
1.982
1.40
1.53
—
2.082
MAX.
5.33
5.20
4.19
0.55
0.50
BODY WIDTH
BODY HEIGHT
BODY THICKNESS
PITCH OF COMPONENT
FEED HOLE PITCH
FEED HOLE CENTRE TO
COMPONENT CENTRE
DISTANCE BETWEEN OUTER
LEADS
COMPONENT ALIGNMENT SIDE VIEW
COMPONENT ALIGNMENT FRONT VIEW
TAPE WIDTH
HOLD-DOWN TAPE WIDTH
HOLE POSITION
HOLD-DOWN TAPE POSITION
LEAD WIRE CLINCH HEIGHT
COMPONENT HEIGHT
LENGTH OF SNIPPED LEADS
FEED HOLE DIAMETER
TOTAL TAPE THICKNESS
LEAD - TO - LEAD DISTANCE
STAND OFF
CLINCH HEIGHT
LEAD PARALLELISM
PULL - OUT FORCE
AT TOP OF BODY
AT TOP OF BODY
F
F
A
B
C
D
E
F
H
C
3 2 1
6N
PIN CONFIGURATION
1. BASE
2. COLLECTOR
3. EMITTER
G
H
K
L
NOTES
1. MAXIMUM ALIGNMENT DEVIATION BETWEEN LEADS NOT TO BE GREATER THAN 0.2 mm.
2. MAXIMUM NON-CUMULATIVE VARIATION BETWEEN TAPE FEED HOLES SHALL NOT EXCEED 1 mm IN 20 PITCHES.
3. HOLDDOWN TAPE NOT TO EXCEED BEYOND THE EDGE(S) OF CARRIER TAPE AND THERE SHALL BE NO EXPOSURE OF ADHESIVE.
4. NO MORE THAN 3 CONSECUTIVE MISSING COMPONENTS IS PERMITTED.
5. A TAPE TRAILER, HAVING AT LEAST THREE FEED HOLES IS REQUIRED AFTER THE LAST COMPONENT.
6. SPLICES SHALL NOT INTERFERE WITH THE SPROCKET FEED HOLES.
All diminsions in mm.
Packing Detail
PACKAGE
Details
TO-92 Bulk
TO-92 T&A
1K/
polybag
2K/
ammo box
STANDARD PACK
Net Weight/Qty
200 gm/ pcs
1K
645 gm/ pcs
2K
Size
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
INNER CARTON BOX
Qty
5K
2K
Size
17" x 15" x 13.5"
17" x 15" x 13.5"
OUTER CARTON BOX
Qty
80K
32K
Gr Wt
23 kgs
12.5 kgs
Continental Device India Limited
Data Sheet
Page 2 of 3
Notes
2N5172
TO-92
Plastic Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
email@cdil.com
www.cdilsemi.com
2N5172Rev_2 081101E
Continental Device India Limited
Data Sheet
Page 3 of 3
