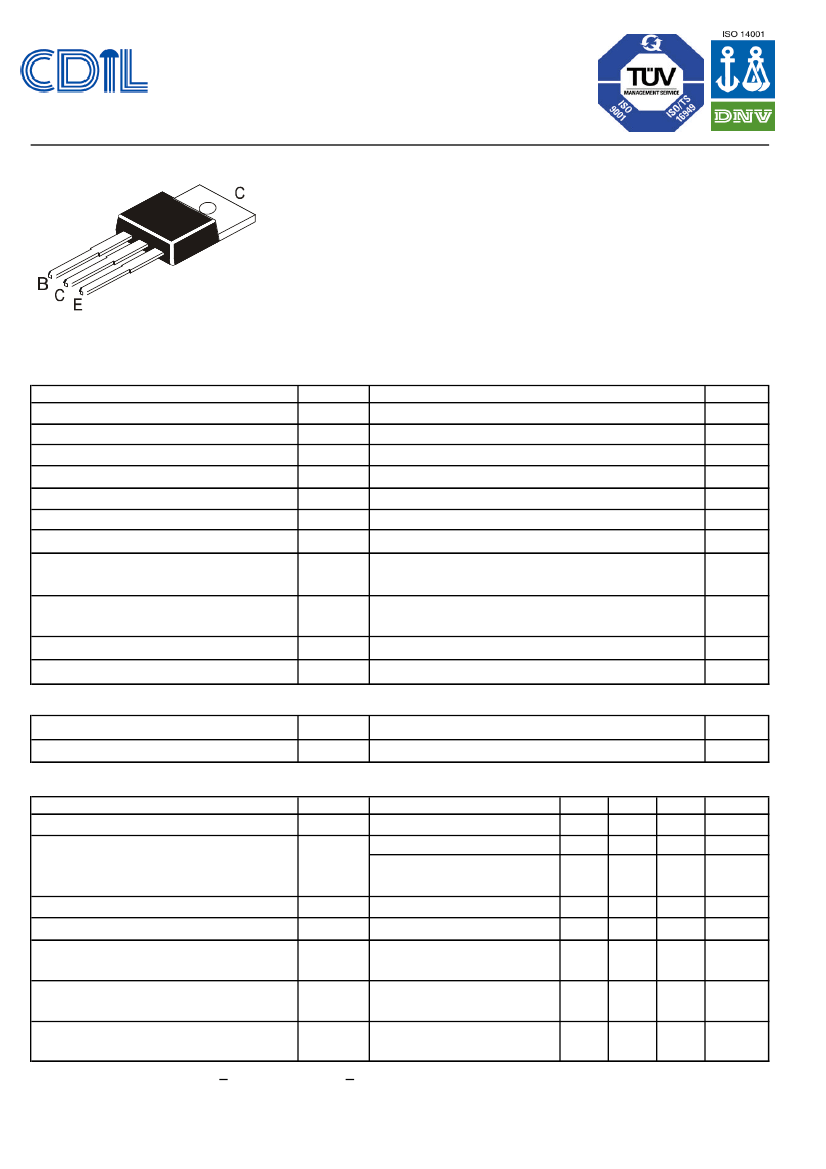

PLASTIC POWER TRANSISTORS
2N6107 PNP
2N6292 NPN

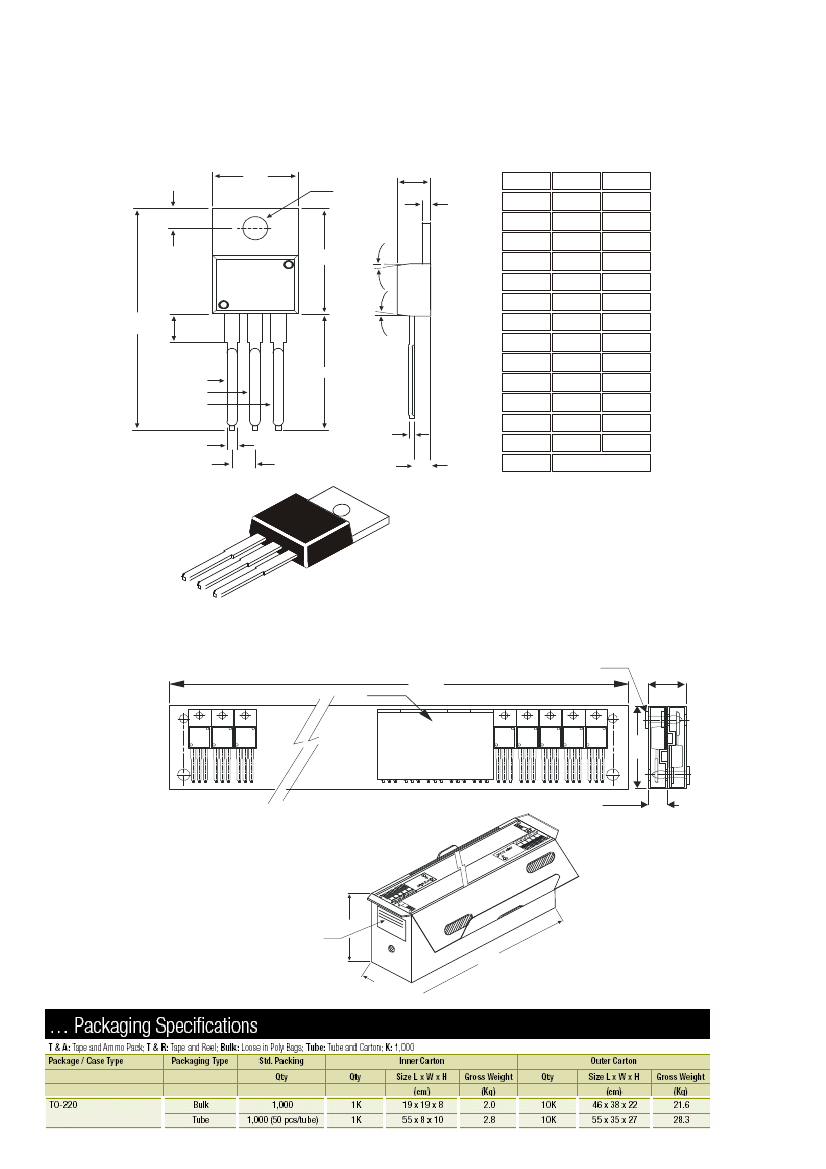

TO-220
Plastic Package
General Purpose Amplifier and Switching Applications
ABSOLUTE MAXIMUM RATINGS (T
a
=25ºC)
DESCRIPTION
SYMBOL
V
CBO
Collector Base Voltage
V
CEO
Collector Emitter Voltage
V
CER
Collector Emitter Voltage (R
BE
= 100Ω)
Ω
Emitter Base Voltage
Collector Current (Peak)
Collector Current Continuous
Base Current
Power Dissipation upto T
c
=25ºC
Derating factor above 25ºC
Power Dissipation upto T
a
=25ºC
Derating factor above 25ºC
Junction Temperature
Storage Temperature
THERMAL RESISTANCE
Junction to Case
Junction to Ambient
R
th (j-c)
R
th (j-a)
3.125
62.50
ºC/W
ºC/W
T
j
T
stg
V
EBO
I
CM
I
C
I
B
P
D
P
D
VALUE
80
70
80
5
10
7
3
40
0.32
2
16
150
- 65 to 150
UNIT
V
V
V
V
A
A
A
W
W/ºC
W
mW/ºC
ºC
ºC
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
TEST CONDITION
I
CEO
V
CE
=60V, I
B
=0
Collector Cut off Current
I
CEX
V
EB(off)
=1.5V; V
CE
=80V
Collector Cut off Current
V
EB(off)
=1.5V; V
CE
=70V;
T
c
=150ºC
Emitter Cut off Current
Collector Emitter (sus) Voltage
Collector Emitter Saturation Voltage
Base Emitter on Voltage
DC Current Gain
I
EBO
*V
CEO(sus)
*V
CE(sat)
*V
BE(on)
*h
FE
V
EB
=5V, I
C
=0
I
C
=100mA, I
B
=0
I
C
=3A, I
B
=0.3A
I
C
=7A, I
B
=3.0A
I
C
=2A, V
CE
=4V
I
C
=7A, V
CE
=4V
I
C
=2A, V
CE
=4V
I
C
=7A, V
CE
=4V
MIN
TYP
MAX
1.0
0.1
2.0
1.0
UNIT
mA
mA
mA
mA
V
V
V
V
V
70
1.0
3.5
1.5
3.0
150
30
2.3
*Pulse Test : Pulse duration<300µs; Duty cycle<1.5%
µ
2N6107_6292Rev_3 190905E
Continental Device India Limited
Data Sheet
Page 1 of 4
PLASTIC POWER TRANSISTORS
2N6107 PNP
2N6292 NPN
TO-220
Plastic Package
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
DYNAMIC CHARACTERISTIC
DESCRIPTION
Small Signal Current Gain
Output Capacitance
Transition frequency
2N6107_6292Rev_3 190905E
SYMBOL
h
fe
C
ob
f
T
TEST CONDITION
I
C
=500mA,V
CE
=4V, f =50KHz
I
E
=0, V
CB
=10V, f =1 MHz
I
C
=500mA,V
CE
=4V
2N6107
2N6292
MIN
20
10
4
TYP
MAX
250
UNIT
pF
MHz
MHz
Continental Device India Limited
Data Sheet
Page 2 of 4
