42.00 in
1067 mm
O
.28 in
7 mm
TYP
.62 in
16 mm
.62 in
16 mm
41.50 in
1054 mm
EIA SPACING
.50 in
13 mm
.88 in
22 mm
19.25 in
489 mm
TYP
1.75 in
44 mm
.88 in
22 mm
O
0.28 X 1.25
OBLONG
TYP
1.24 in
32 mm
.62 in
16 mm
2.55 in
65 mm
.62 in
16 mm
2.00 in
51 mm
O
.28 in
7 mm
TYP
41.50 in
1054 mm
EIA SPACING
.50 in
13 mm
.62 in
16 mm
.62 in
16 mm
RSRC00042
PART NUMBERS
PAINTED BLACK TEXTURED

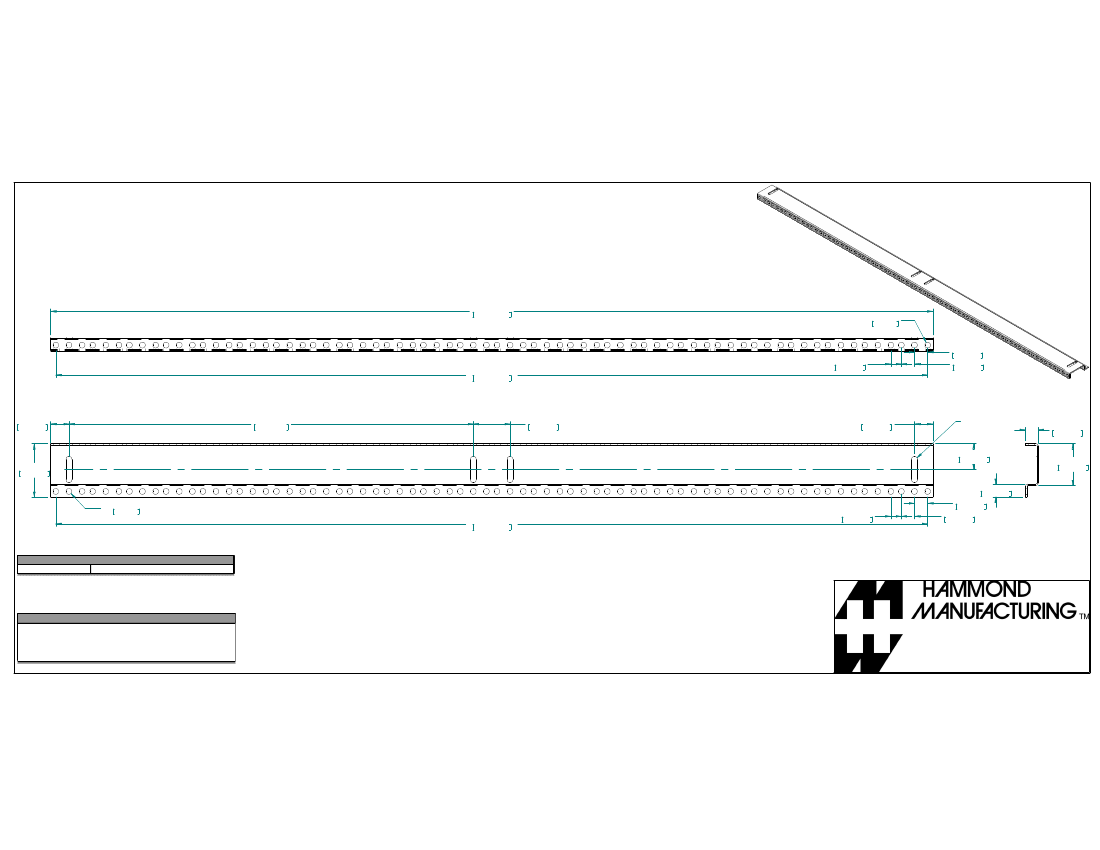

Data subject to change without notice. Isometric drawing not to scale.
NOTES
INCLUDES MOUNTING HARDWARE
SOLD IN PAIRS
www.hammondmfg.com
PART NO.
RSRC00042
