Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

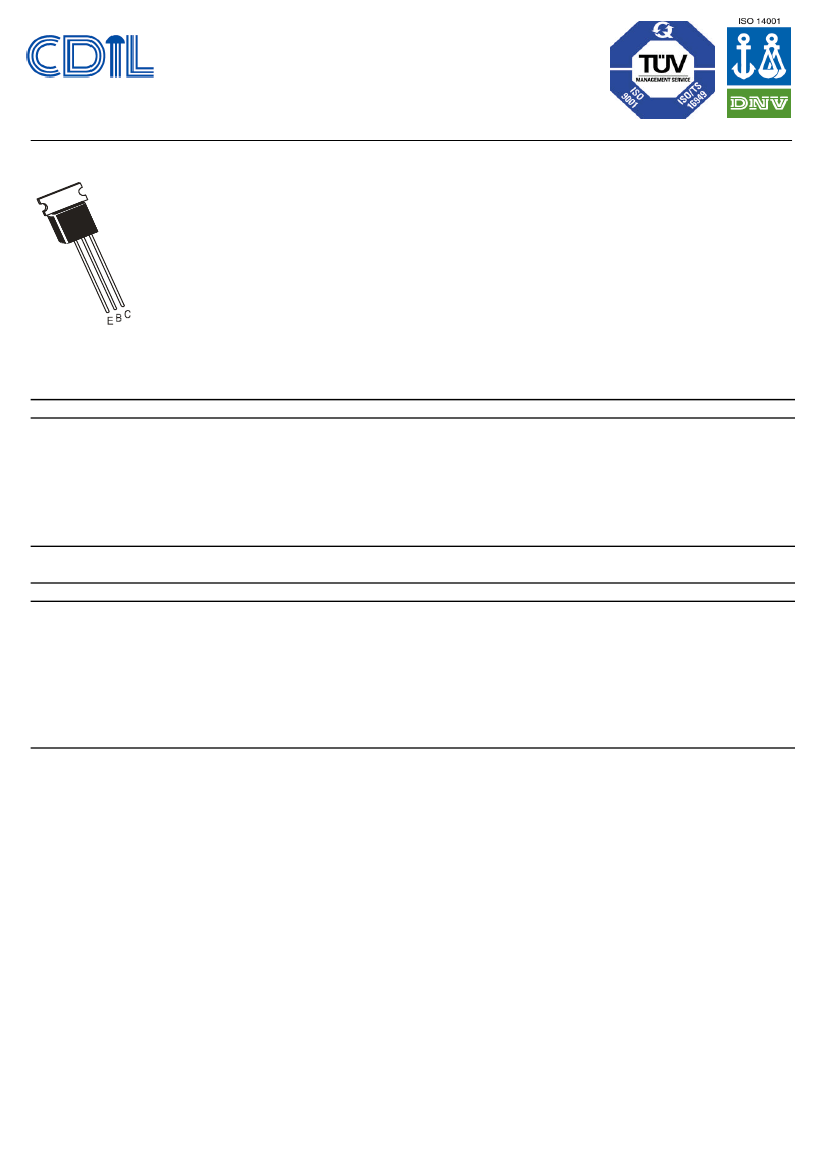

NPN SILICON PLANAR EPITAXIAL TRANSISTOR
2N6718
TO-237
Plastic Package
General Purpose Medium Power Amplifier
ABSOLUTE MAXIMUM RATINGS(Ta=25ºC)
DESCRIPTION
SYMBOL
V
CBO
Collector Base Voltage
V
CEO
Collector Emitter Voltage
V
EBO
Emitter Base Voltage
I
C
Collector Current Continuous
P
D
Total Power Dissipation
T
j
, T
stg
Operating And Storage Junction
Temperature Range
VALUE
100
100
5
1.5
850
-55 to +150
UNIT
V
V
V
A
mW
ºC
ELECTRICAL CHARACTERISTICS (Ta=25ºC Unless Specified Otherwise)
DESCRIPTION
SYMBOL TEST CONDITION
I
CBO
V
CB
=80V, I
E
=0
Collector Cut off Current
I
EBO
V
EB
=4V, I
C
=0
Emitter Cut off Current
h
FE
I
C
=50mA,V
CE
=1V
DC Current Gain
I
C
=250mA,V
CE
=1V
I
C
=500mA,V
CE
=1V
V
CE(sat)
I
C
=350mA,I
B
=35mA
Collector Emitter Saturation Voltage
f
T
V
CE
=1V, I
C
=200mA,
Transition Frequency
MIN
MAX
0.1
0.1
250
0.35
500
UNIT
µA
µA
80
50
20
50
V
MHz
Continental Device India Limited
Data Sheet
Page 1 of 3
Notes
2N6718
TO-237
Plastic Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150,
5141 1112
Fax + 91-11-2579 5290,
5141 1119
www.cdilsemi.com
email@cdil.com
Continental Device India Limited
Data Sheet
Page 3 of 3
