LM101D datasheet, PDF - EEWORLD Datasheet

LM101D: DescriptionOperational Amplifier, 1 Func, 6000uV Offset-Max, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size350KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

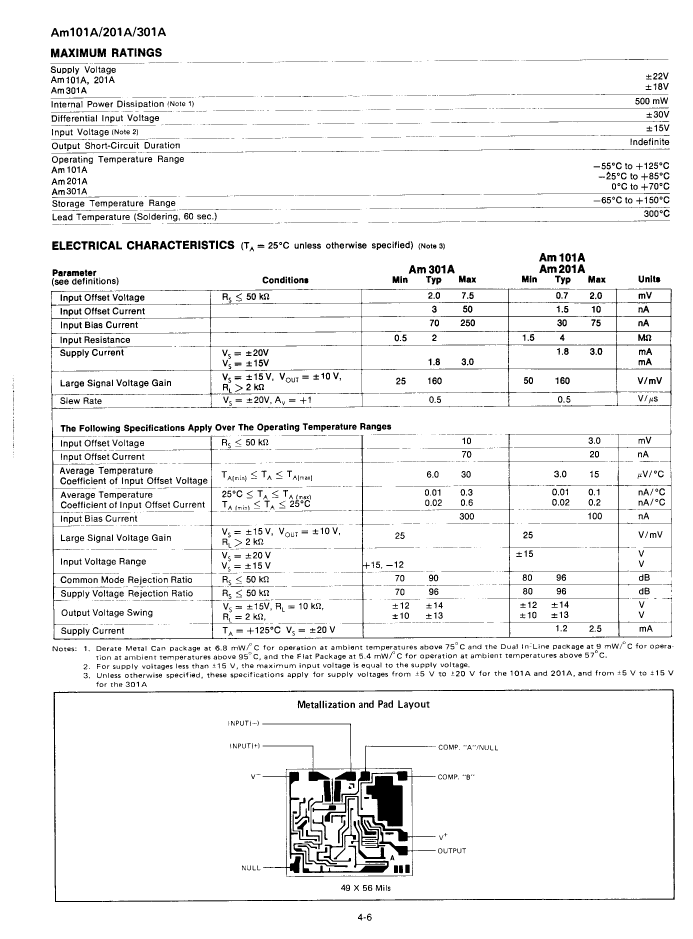

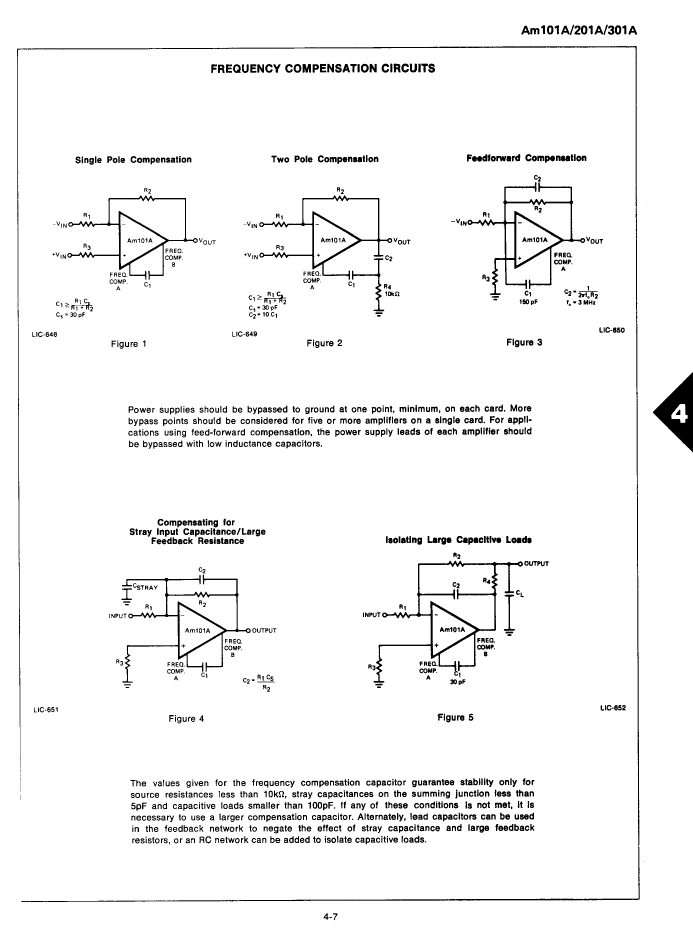

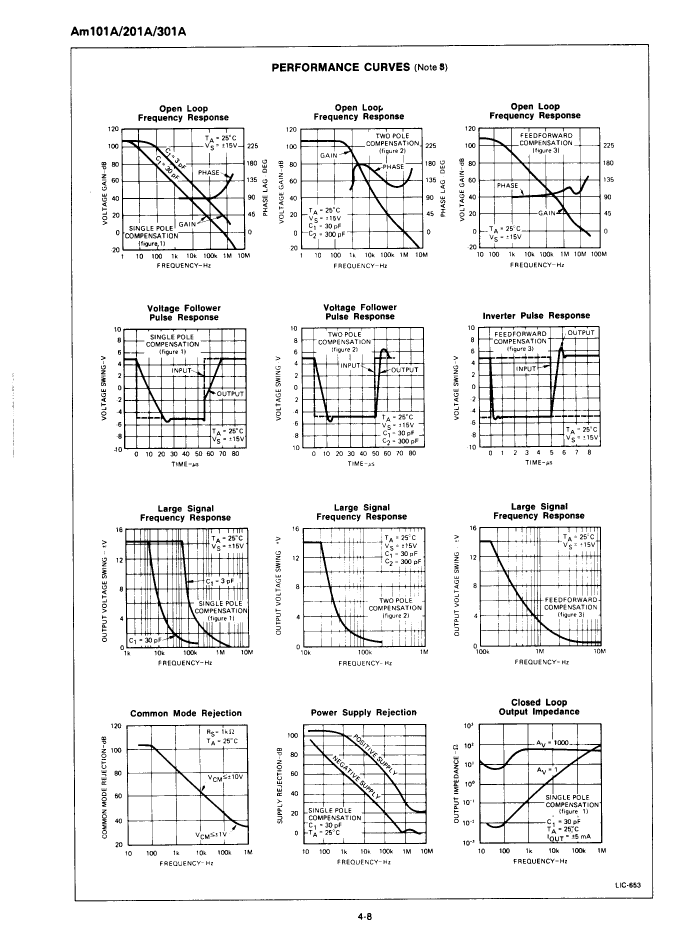

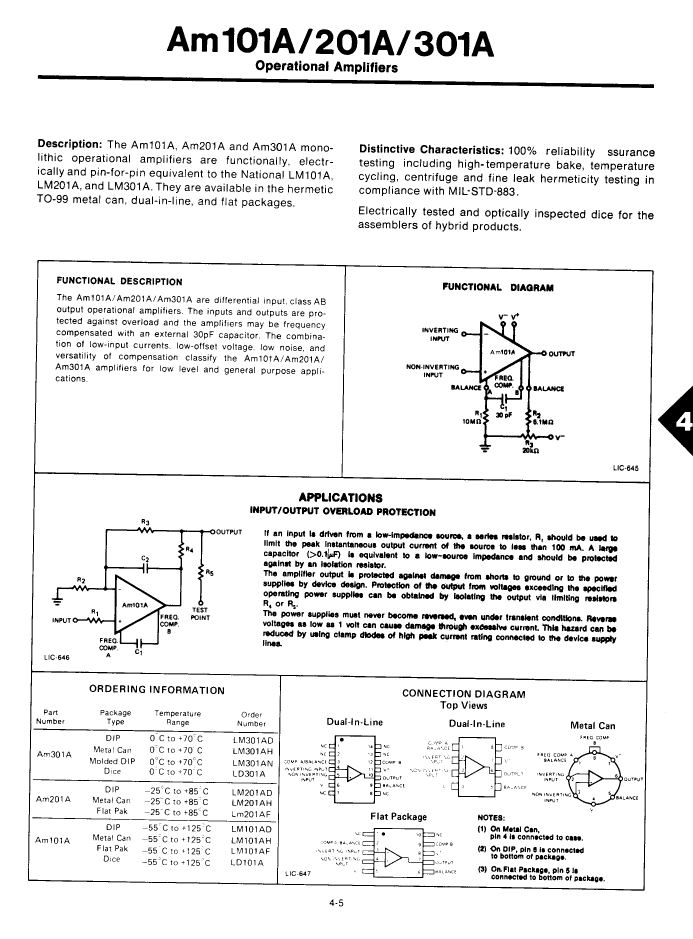

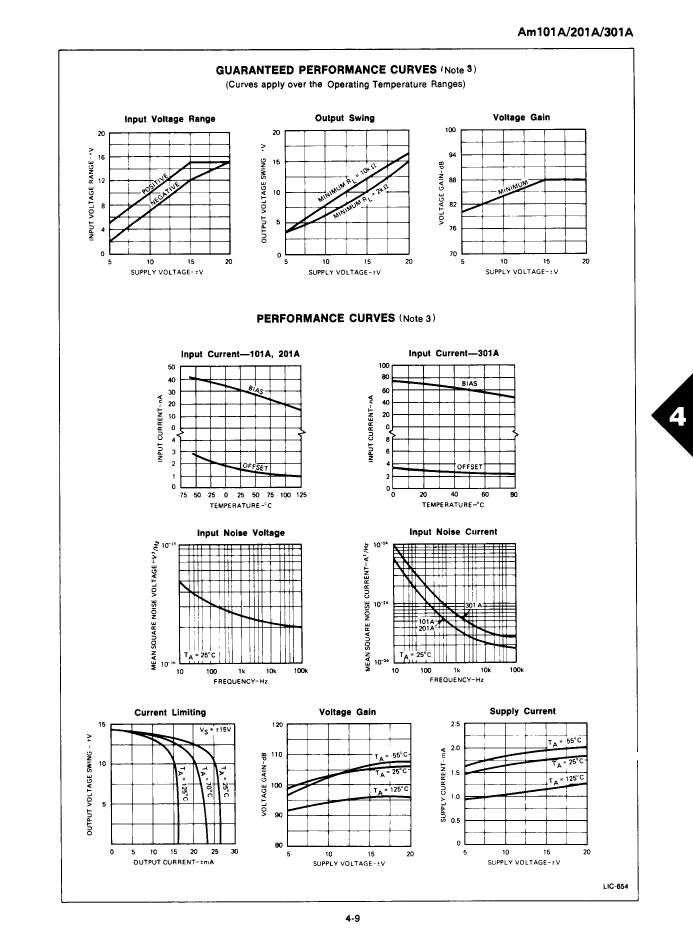

LM101D Overview

Operational Amplifier, 1 Func, 6000uV Offset-Max, CDIP14, HERMETIC SEALED, DIP-14

Parameter Name	Attribute value
Objectid	8144542091
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	1.5 µA
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	6000 µV
JESD-30 code	R-CDIP-T14
length	19.431 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	LM101D	LM101F
Description	Operational Amplifier, 1 Func, 6000uV Offset-Max, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 1 Func, 6000uV Offset-Max, CDFP10, HERMETIC SEALED, CERPACK-10
package instruction	DIP,	DFP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	1.5 µA	1.5 µA
Nominal Common Mode Rejection Ratio	90 dB	90 dB
Maximum input offset voltage	6000 µV	6000 µV
JESD-30 code	R-CDIP-T14	R-CDFP-F10
length	19.431 mm	6.1595 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	14	10
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Maximum seat height	5.08 mm	2.032 mm
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	6.35 mm
