ERF8-030-01-T-D-EM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ERF8-030-01-T-D-EM2

ERF8-030-01-T-D-EM2: DescriptionBoard Stacking Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size845KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

ERF8-030-01-T-D-EM2 Overview

Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

ERF8-030-01-T-D-EM2 Parametric

Parameter Name	Attribute value
Objectid	1980868219
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ERF8
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

Preview

Download Datasheet

View All

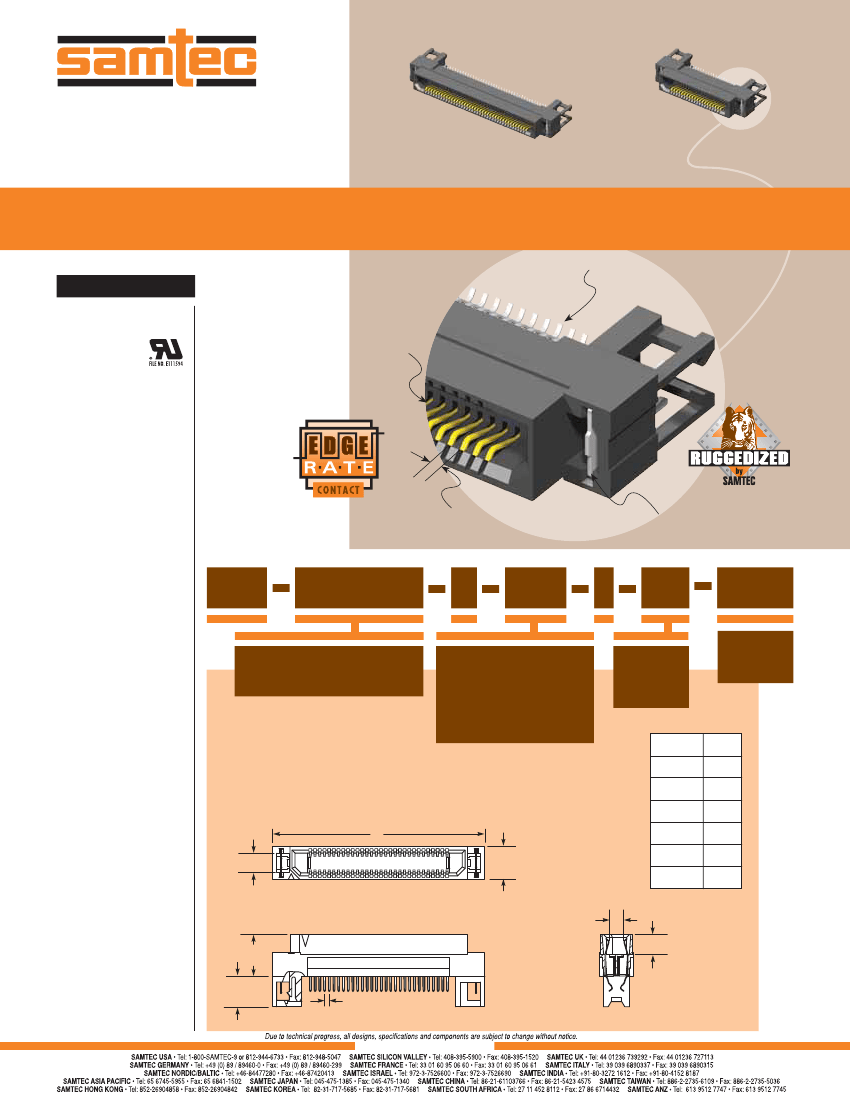

F-209-1

ERF8–020–01–S–D–EM2

ERF8–040–01–L–D–EM2

EDGE MOUNT EDGE RATE

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?ERF8

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Au or Sn over 50µ" (1,27µm) Ni

Current Rating:

2.1A @ 85°C

Operating Temp Range:

-55°C to + 125°C

Voltage Rating:

200 VAC max

RoHS Compliant:

Yes

™

ERF8-EM

SERIES

Up to 150 I/Os

Board Mates:

ERM8

Cable Mates:

ERDL2, ERCD,

ERDP

Broadside

wiping contacts

reduce

unwanted

crosstalk

™

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (005-030)

(0,12mm) .005" max (040-050)

(0,80mm)

.0315" pitch

Weld Tab for

rugged micro

pitch applications

ERF8

NO. OF POSITIONS

PER ROW

PLATING

OPTION

EM2

OPTION

–005, –010, –020,

–030, –040, –050

–S

= 30µ" (0,76µm) Gold on contact,

Matte Tin on tail

–EM2

= (1,60mm)

.062"

Thick PCB

–TR

= Tape & Reel

Packaging

–L

= 10µ" (0,25µm) Gold on contact,

Matte Tin on tail

NO. OF

POSITIONS

(16,00)

.630

(20,00)

.787

(28,00)

1.102

(36,00)

1.417

(44,00)

1.732

(52,00)

2.047

–005

–010

–020

(5,60)

.220

–030

–040

–050

(2,49)

.098

(3,36)

.132

(7,00)

.276

(5,20)

.205

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(3,35)

.132

(0,80) .0315
