HTSW-XXX-XX-XXX-X-XX-XX-XX
TERMINAL SPACE SPEC
-1= .100 [2.54] (FILL EVERY POSITION)
-2= .200 [5.08] (FILL EVERY OTHER
POSITION STARTING WITH THE 1st
AND ENDING WITH THE LAST
POSITION IN BODY)
NUMBER OF POSITIONS
-1: -01 THRU -50
"A"= NUMBER OF POS x .100[2.54]
-2: -02 THRU -25
"A"= (NUMBER OF POS x .200[5.08])-.100[2.54]
LEAD STYLE
SEE TABLE 1, SHT 6
PLATING SPECIFICATIONS
-G: 10µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-E: 50µ" EXTRA HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
(AVAILABLE ON LEAD STYLES -07, -08, -09 STRAIGHT AND -08-D-RA)
-TL: TIN/LEAD (90/10 5%) CONTACT AND TAIL,
(AVAILABLE ONLY ON LEAD STYLES -07, -08 & -09)
-TM: MATTE TIN CONTACT AND TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA, TIN/LEAD (90/10 5%) TAIL
-LTL: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA, TIN/LEAD (90/10 +/-5%) TAIL,
(AVAILABLE ONLY ON LEAD STYLE -15)
-SS: 30µ" STRIPE SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ONTAIL, (SEE NOTE 9)
OPTION 3
*-MW: METAL WASHER
(STRAIGHT TAIL OPTION ONLY)
(AVAILABLE ON 05, 06, 07. 08. 16, 17, 18,
22, 23,24, 25, 41 & 42 LEAD STYLES ONLY)

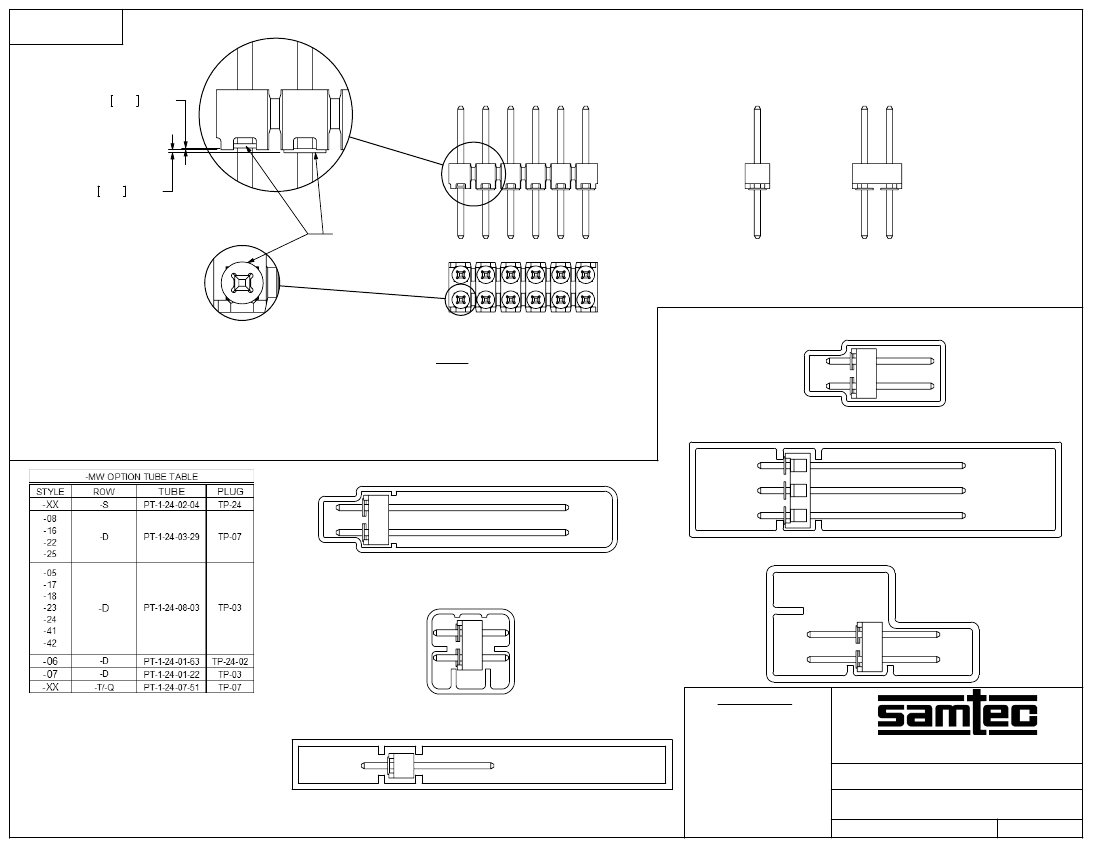

(N/A WITH -LC OPTION. 20 POS MIN, 30 POS MAX.
SEE FIG 6, SHT 5)
OPTION 2
-POLARIZING SPECIFICATION
XXX INDICATES POS TO BE OMITTED
OPTION 1

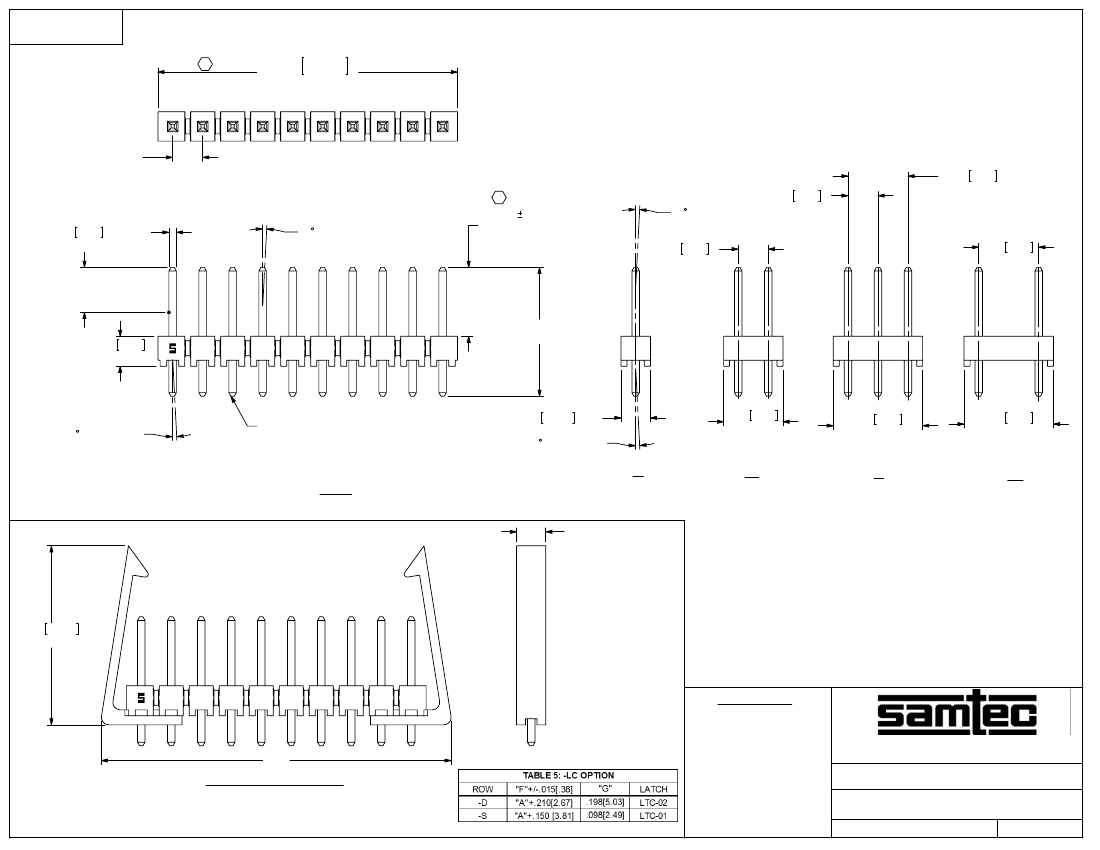

-BLANK: STRAIGHT (SEE FIG 1, SHT 2)

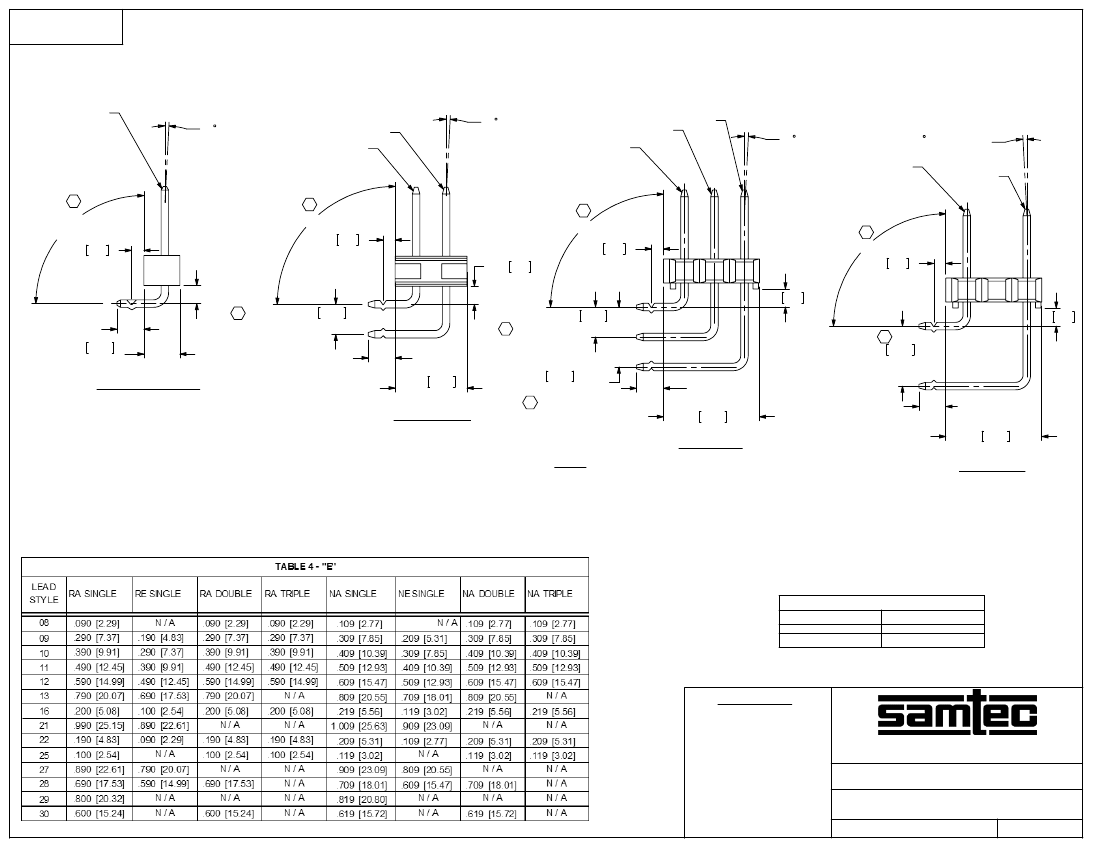

-RA: RIGHT ANGLE (SEE TABLE 3 & 4, FIG 5, SHT 4)
-RE: EXTENDED RIGHT ANGLE (SEE TABLE 3 & 4, FIG 5, SHT 4)
(SINGLE ROW ONLY)
-NA: RA OPTION WITH STRAIGHT OPTION BODY (SEE TABLE 3 & 4, FIG 5, SHT 4)
-NE: RE OPTION WITH STRAIGHT OPTION BODY (SEE TABLE 3 & 4, FIG 5, SHT 4)
-LC: LOCKING CLIP (4 POS MINIMUM; ONLY AVAILABLE ON:
LEAD STYLES -08 THRU -13 & -22, WITH ROW OPTIONS -S & -D;
N/A WITH -MW, -RA OR -RE OPTIONS; SEE FIG 2, SHT 2)
BO
-LA: -RA OPTION WITH -LL OPTION (SEE SHT 3)
-LL: LOCKING LEAD (SEE FIG 4, SHT 3)
(N/A WITH -RE OR -NE OPTIONS)
(N/A IN SINGLE ROW, 1 OR 2 POSITIONS)
ROW SPECIFICATION (SEE TABLE 2)
-S: SINGLE
-D: DOUBLE
-T: TRIPLE
-Q: TRIPLE ROW, FILL OUTER ROWS ONLY
* - MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 2/12/02.

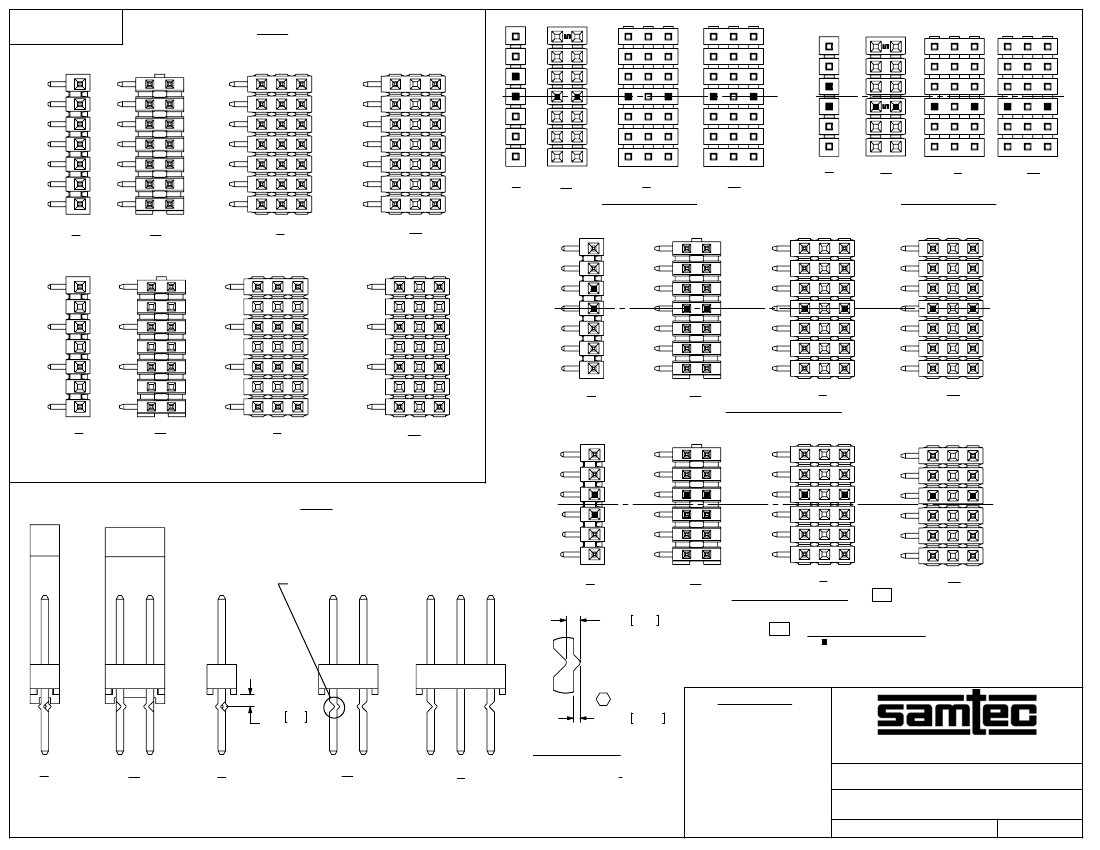

CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
FILL
MULTI-CUT
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
NOTES:
1.
C
REPRESENTS CRITICAL DIMENSION FOR STATISTICAL PROCESS CONTROL.
2. MINIMUM TERMINAL PUSHOUT FORCE: 3 LBS.
3. MAXIMUM HEIGHT VARIATION: .005[.127] (N/A ON -RA TAIL).
4. ASSEMBLE GOLD PLATE END AS SHOWN IN FIG 1.
5. STYLE -26: ROUND END OF PIN TO APPEAR ON BOTTOM (SEE FIG 7, SHT 6).
6. MINIMUM GOLD PLATED CONTACT AREA: .165[4.19] REF; PINS -18, -21 & -25: .050[1.27] REF.
7. CRIMP TWO PINS CLOSEST TO CENTER OF THE PART IF THERE IS A POLARIZED POSITION
IN THE MIDDLE/CENTER.
8. MAXIMUM CUT FLASH: .010 [.25].
9. -SS PLATING OPTION ONLY AVAILABLE ON -07, -08, -09 STRAIGHT AND -08 -RA LEAD
STYLES. MATES WITH SSQ, SSW, SSM, BCS, ESQ & ESW.
10. MEASURE FROM THE BEND RADIUS OF THE TERMINALS.
11. ORIENTATE PINS TO PREVENT BANDOLIER MARKS FROM SHOWING IN THE POST AREA.
(SEE TABLE 6,
SHT 7).
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01 [.25]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
IN-PROCESS INSPECTION
C1
C2
C4
C5
C6
C7
C3
CRIMP
CPCs INTENTIONALLY DELETED:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3.5:1
INSULATOR: LCP, UL-94-V-0
COLOR: NATURAL
.025 SQ POST HI-TEMP TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\HTSW-XXX-XX-XXX-X-XX-XX-XX-MKT.SLDDRW
BY:
PURVIS
HTSW-XXX-XX-XXX-X-XX-XX-XX
02/17/87
SHEET
1
OF
7
