P22TG-xxxxE/Z2:1(H35)LF

PMD-SERIES

Rev.11-2008

5 Watt

2:1

Wide Input

Reg. Single

and

Dual

Output

1.5 to 3.5 kV

DC I/O Isolation

DIP24

Case

Continuous Short Circuit Prot.

Full SMD Technology

Input Specifications

Voltage Range

Input Filter

Input Reflected Ripple Current¹

Output Specifications

Voltage Accuracy

Short Circuit Protection

Line Regulation

Load Regulation

Ripple and Noise

(20Mhz bandwidth)

Temperature Coefficient

General Specifications

Efficiency

I/O Isolation Voltage

(3 sec.)

I/O Isolation Capacity

I/O Isolation Resistance

Switching Frequency

(typical)

Humidity

Reliability Calculated MTBF

(MIL-HDBK-217F)

Physical Specifications

Case Material

Potting Material

Weight

Environment Specifications

Operating Temperature

Maximum Case Temperature

Storage Temperature

Cooling

RoHS Conform

Mainzer Straße 151–153

D-55299 Nackenheim

Tel. +49 6135 7026-0

Fax: +49 6135 931070

www.peak-electronics.de

peak@peak-electronics.de

The PMD 5W series P22TG-xxxxE/Z2:1(H35)LF is a family of cost effective

5W single & dual output DC-DC converters. These converters are

encapsulated in miniature DIP24 plastic case. High performance features:

1500VDC up to 3500VDC input/output isolation, continuous short circuit

protection with automatic restart and tight line / load regulation, high

efficiency operation, output voltage accuracy of ±1% maximum and a wide

input range of 2:1

All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified

2:1 Wide Input

Pi Type

35 mA pk-pk

± 1%

Indefinite

(automatic recovery)

± 0.5%

± 0.5% (3.3 / ± 3.3Vout Models: ± 1.5%)

60 mV pk-pk

± 0.02% / °

See Table

1500 VDC

(3500 VDC optional)*

470 pF, typ.

1000 MOhm

266 kHz

95% rel H

> 1.121 Mhrs

Non Conductive Black Plastic

(UL94V-0 rated)

Epoxy

(UL94V-0 rated)

~ 13.5g, typ.

-40 to +85°

(ambient)

100°

-40 to +125°

Free Air Convection

Soldering 260° max.

(1.5mm from case 10s.)

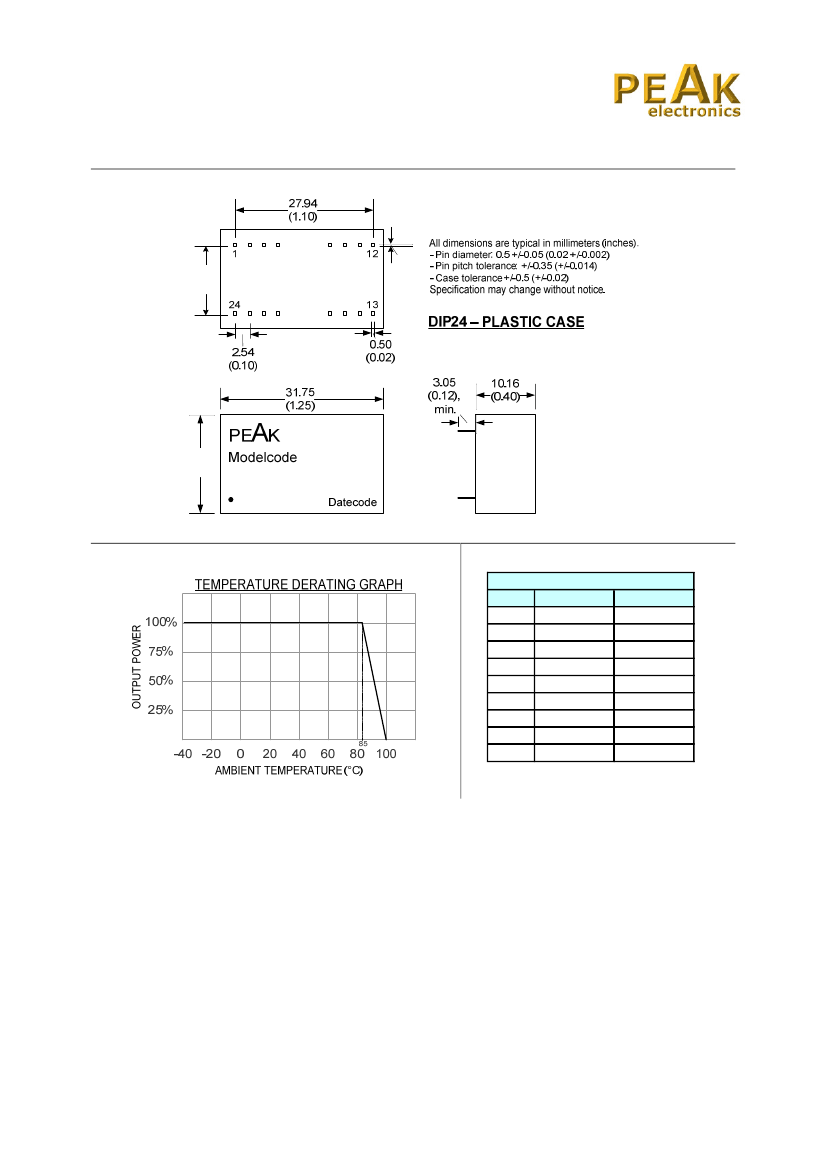

PMD-Series – P22TG-xxxxE/Z2:1(H35)LF – Single and Dual Output – DIP24 - Plastic Case

Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.

Page 1/3
