THT-131-427-1.5-SC: DescriptionBBP11 Small Core Materials; File Size933KB，1 Pages; ManufacturerETC2

Download Datasheet View All

THT-131-427-1.5-SC Overview

BBP11 Small Core Materials

Preview

Download Datasheet

View All

BBP

®

11 Small Core Materials

www.BradyID.com/bbp11

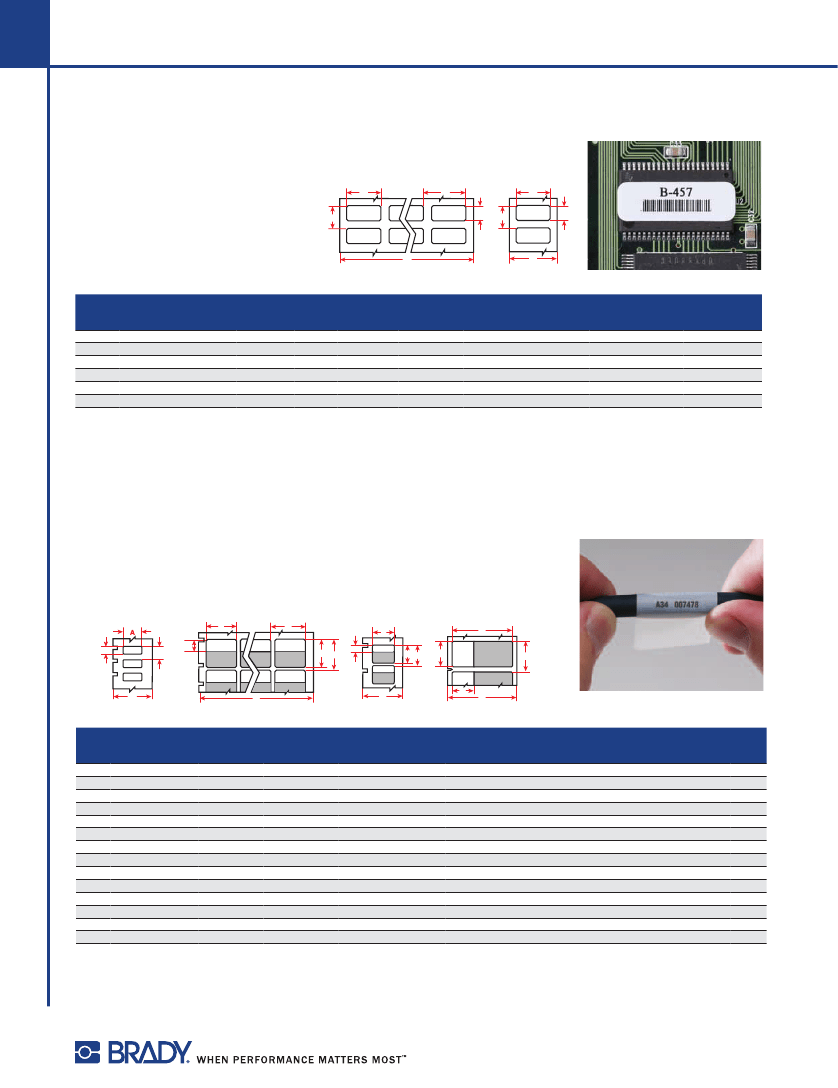

BBP®11 1” Small Core Label Rolls:

Benchtop Thermal Transfer Printers

86

Circuit Board Materials

Various sizes for marking PCB’s, electronic components and more.

• B-457 Polyimide Material -

High temperature

performance, white polyimide material with

glossy finish and permanent adhesive.

Withstands wave solder environments

for printed circuit board and electronic

component preprocess labeling. In

combination with the Series R6000 ribbons,

it passes the requirements of MIL-STD-202G,

Notice 12, Method 215K.

Diagram

Fig. 1

Fig. 2

A

D

C

B

D

A

B

E

Figure 1

Label Width

A

Inch (mm)

0.750 (19.1)

1.000 (25.4)

1.250 (31.8)

1.500 (38.1)

Figure 2

Vert. Repeat Web Width

D

E

Inch (mm)

0.350 (8.9)

0.475 (12.1)

0.600 (15.2)

0.350 (8.9)

3.350 (85.1)

1.200 (30.5)

1.450 (36.8)

1.700 (43.2)

Part Number

THT-1-457-5-SC

THT-103-457-5-SC

THT-58-457-5-SC

THT-59-457-2.5-SC

THT-43-457-5-SC

THT-45-457-5-SC

B-#

B-457

Material

Polyimide

Color

White

Horiz. Repeat

Label Height B

C

Inch (mm)

0.250 (6.4)

0.375 (9.5)

0.500 (12.7)

0.250 (6.4)

0.800 (20.3)

-

Labels

Per

Row

4

1

Labels

Per Pkg

5,000

2,500

5,000

Rec.

Ribbon

R6013

BBP®11 1” Small Core Label Rolls:

Self-Laminating Wire & Cable Material

• B-427 Self-Laminating Wire Material

- Brady’s most popular wire and cable

marker. Self-laminating vinyl features white printable area with a clear “tail” that

wraps around marker. Tail serves as overlaminate to protect the print. Superior

resistance to abrasion, solvents, water, oil and dirt.

A

B

D

F

C

B

D

F

A

B D

A

B

D

E

Figure 9

Figure 12

E

F

Figure 14

Label

Width A

Inch (mm)

0.500 (12.7)

0.750 (19.1)

0.800 (20.3)

1.000 (25.4)

1.500 (38.1)

1.750 (44.5)

2.000 (50.8)

2.500 (63.5)

2.625 (66.7)

Figure 15

Horiz.

Repeat C

Inch (mm)

0.600 (15.2)

0.662 (16.8)

0.800 (20.3)

1.075 (27.3)

1.100 (27.9)

1.075 (27.3)

1.100 (27.9)

-

0.500 (12.7)

1.000 (25.4)

0.750 (19.1)

2.625 (66.7)

E

Diagram Part Number

Fig. 12

Fig. 9

Fig. 14

Fig. 15

THT-80-427-2.5-SC

THT-8-427-5-SC

THT-56-427-5-SC

THT-74-427-5-SC

THT-9-427-2.5-SC

THT-75-427-1.5-SC

THT-10-427-1.5-SC

THT-81-427-.5-SC

THT-135-427-2-AWSC

THT-119-427-1-SC

THT-121-427-1-SC

THT-27-427-.5-SC

THT-26-427-.5-SC

THT-131-427-1.5-SC

B-#

B-427

Material Color

Vinyl

White/Transparent

White

White/Transparent

Label

Height B

Inch (mm)

0.750 (19.1)

1.437 (36.5)

0.938 (23.8)

1.437 (36.5)

2.250 (57.2)

3.750 (95.3)

6.000 (152.4)

0.750 (19.1)

1.500 (38.1)

3.750 (95.3)

2.250 (57.2)

1.000 (25.4)

Vert. Repeat Web Width

D

E

Inch (mm)

0.950 (24.1)

1.625 (41.3)

1.125 (28.6)

1.625 (41.3)

2.375 (60.3)

4.000 (101.6)

6.187 (157.2)

0.875 (22.2)

1.625 (41.3)

4.000 (101.6)

2.438 (61.9)

1.125 (28.6)

2.500 (63.5)

3.350 (85.1)

2.300 (58.4)

3.350 (85.1)

2.300 (58.4)

1.700 (43.2)

1.700 (43.1)

1.950 (49.5)

2.200 (55.9)

2.700 (68.6)

2.825 (71.8)

Write On

Area F

(Height)

0.375 (9.5)

0.500 (12.7)

0.375 (9.5)

0.500 (12.7)

0.750 (19.1)

1.000 (25.4)

1.500 (38.1)

0.750 (19.1)

0.500 (12.7)

1.000 (25.4)

0.750 (19.1)

1.000 (25.4)

Labels Labels

Rec.

Per

Ribbon

Row

Pkg

4

5

4

3

2

3

2

1

2,500

5,000

2,500

1,500

500

2,000

1,000

500

1,500

R4313

Benchtop Printer Ribbons on page 184.

Full Material Properties on page 187.

Recommended Resources
