TLHR620., TLHY620., TLHG620.
www.vishay.com
Vishay Semiconductors
High Efficiency LED, Ø 5 mm Tinted Non-Diffused Package
FEATURES
• Choice of three bright colors
• Standard T-1¾ package
• Small mechanical tolerances
• Suitable for DC and high peak current
• Small viewing angle
• Luminous intensity categorized
19224
• Yellow and green color categorized
• TLH.620. without stand-offs
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION
The TLH.620. series was developed for standard
applications like general indicating and lighting purposes.
It is housed in a 5 mm tinted non-diffused plastic package.
The small viewing angle of these devices provides a high
brightness.
Several selection types with different luminous intensities
are offered. All LEDs are categorized in luminous intensity
groups. The green and yellow LEDs are categorized
additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
APPLICATIONS
• Status lights
• Off/on indicator
• Background illumination
• Readout lights
• Maintenance lights
• Legend light
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: 5 mm
• Product series: standard
• Angle of half intensity: ± 14°
PARTS TABLE
PART
TLHR6200-CS12
TLHR6205
TLHY6200-CS12Z
TLHG6200
TLHG6200-CS12
LUMINOUS INTENSITY
WAVELENGTH
FORWARD VOLTAGE
at I
F
at I
F
at I
F
(mcd)
(nm)
(V)
COLOR
TECHNOLOGY
(mA)
(mA)
(mA)
MIN.
TYP. MAX.
MIN. TYP. MAX.
MIN. TYP. MAX.
Red
Red
Yellow
Green
Green
10
25
10
16
16
50
70
50
40
40
-
-
-
-
-
10
10
10
10
10
612
612
581
562
562
-
-
-
-
-
625
625
594
575
575
10
10
10
10
10
-
-
-
-
-
2
2
2.4
2.4
2.4
3
3
3
3
3
20
20
20
20
20
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaP on GaP
GaP on GaP
Rev. 2.1, 26-Feb-18
Document Number: 83218
1
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLHR620., TLHY620., TLHG620.
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
TLHR620., TLHY620., TLHG620.
PARAMETER
Reverse voltage
DC forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction-to-ambient
t
≤
5 s, 2 mm from body
T
amb
≤
65 °C
t
p
≤
10 μs
T
amb
≤
65 °C
TEST CONDITION
SYMBOL
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
VALUE
6
30
1
100
100
-40 to +100
-55 to +100
260
350
UNIT
V
mA
A
mW
°C
°C
°C
°C
K/W
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
TLHR620., RED
PARAMETER
Luminous intensity
(1)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note
(1)
In one packing unit I
Vmin.
/I
Vmax.
≤
0.5
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 μA
V
R
= 0 V, f = 1 MHz
PART
TLHR6200
TLHR6205
SYMBOL
I
V
l
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
MIN.
10
25
612
-
-
-
6
-
TYP.
50
70
-
635
± 14
2
15
50
MAX.
-
-
625
-
-
3
-
-
nm
nm
deg
V
V
pF
UNIT
mcd
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
TLHY620., YELLOW
PARAMETER
Luminous intensity
(1)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note
(1)
In one packing unit I
Vmin.
/I
Vmax.
≤
0.5
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 μA
V
R
= 0 V, f = 1 MHz
PART
TLHY6200
SYMBOL
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
MIN.
10
581
-
-
-
6
-
TYP.
50
-
585
± 14
2.4
15
50
MAX.
-
594
-
-
3
-
-
UNIT
mcd
nm
nm
deg
V
V
pF
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
TLHG620., GREEN
PARAMETER
Luminous intensity
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note
(1)
In one packing unit I
Vmin.
/I
Vmax.
≤
0.5
Rev. 2.1, 26-Feb-18
Document Number: 83218
2
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
(1)
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 μA
V
R
= 0 V, f = 1 MHz
PART
TLHG6200
SYMBOL
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
MIN.
16
562
-
-
-
6
-
TYP.
40
-
565
± 14
2.4
15
50
MAX.
-
575
-
-
3
-
-
UNIT
mcd
nm
nm
deg
V
V
pF
Dominant wavelength
TLHR620., TLHY620., TLHG620.
www.vishay.com

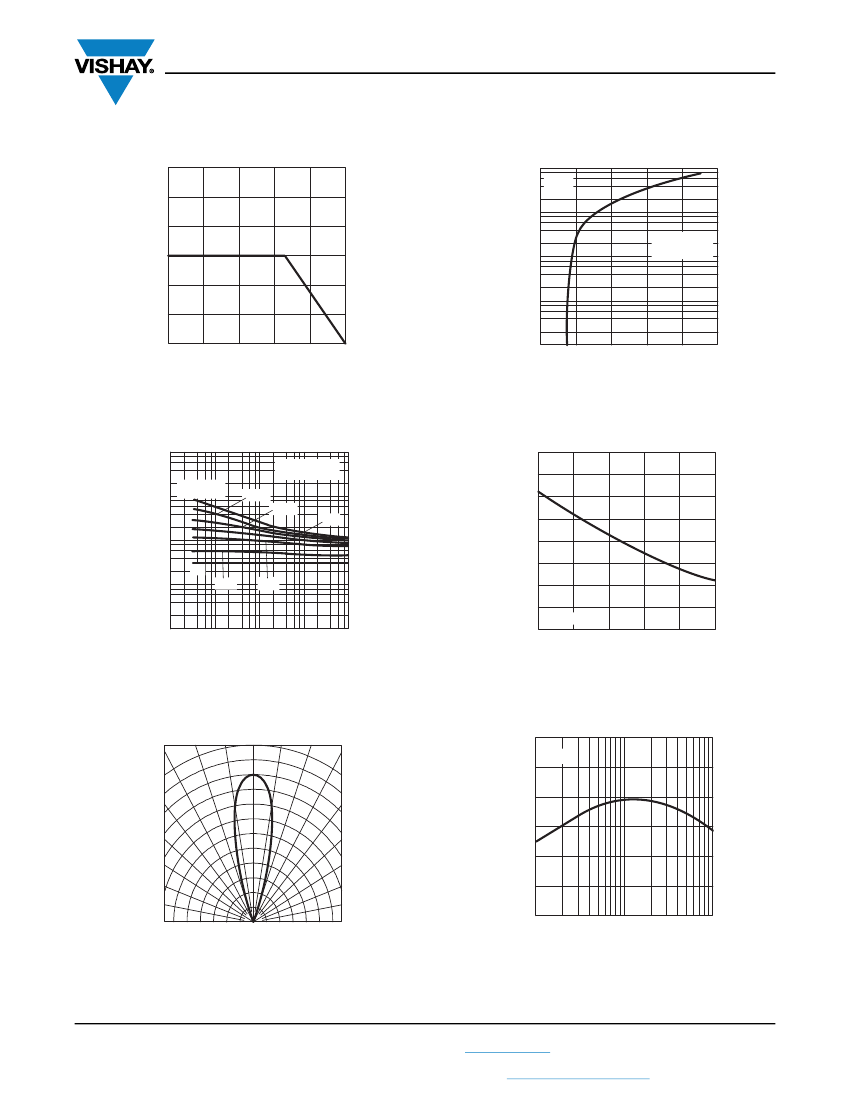

TYPICAL CHARACTERISTICS
