FSF05D60

Description
5 A, 600 V, SILICON, RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size177KB,2 Pages
ManufacturerNihon Inter Electronics Corporation
Websitehttp://www.niec.co.jp
Download Datasheet Parametric View All

FSF05D60 Overview

5 A, 600 V, SILICON, RECTIFIER DIODE

FSF05D60 Parametric

Parameter NameAttribute value
MakerNihon Inter Electronics Corporation
package instructionR-PSFM-T2
Reach Compliance Codeunknow
applicationGENERAL PURPOSE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PSFM-T2
Maximum non-repetitive peak forward current80 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-40 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
Maximum reverse recovery time0.065 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
5A Avg.
■最大定格
Item
く り 返 し ピ ー ク 逆 電 圧
Repetitive Peak Reverse Voltage
Average Rectified Forward Current
R.M.S. Forward Current
Surge Forward Current
動 ½ 接 合 温 度 範 囲
Operating Junction Temperature Range
Storage Temperature Range
Mounting torque
600 Volts
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
T
jw
T
stg
F
tor
80
50Hz、正弦半波通電抵抗負荷
50Hz Half Sine Wave Resistive Load
FRED
Conditions
600
Tc=123℃
7.85
50Hz正弦半波,1サイクル,非くり返し
50Hz Half Sine Wave,1cycle, Non-repetitive
FSF05D60

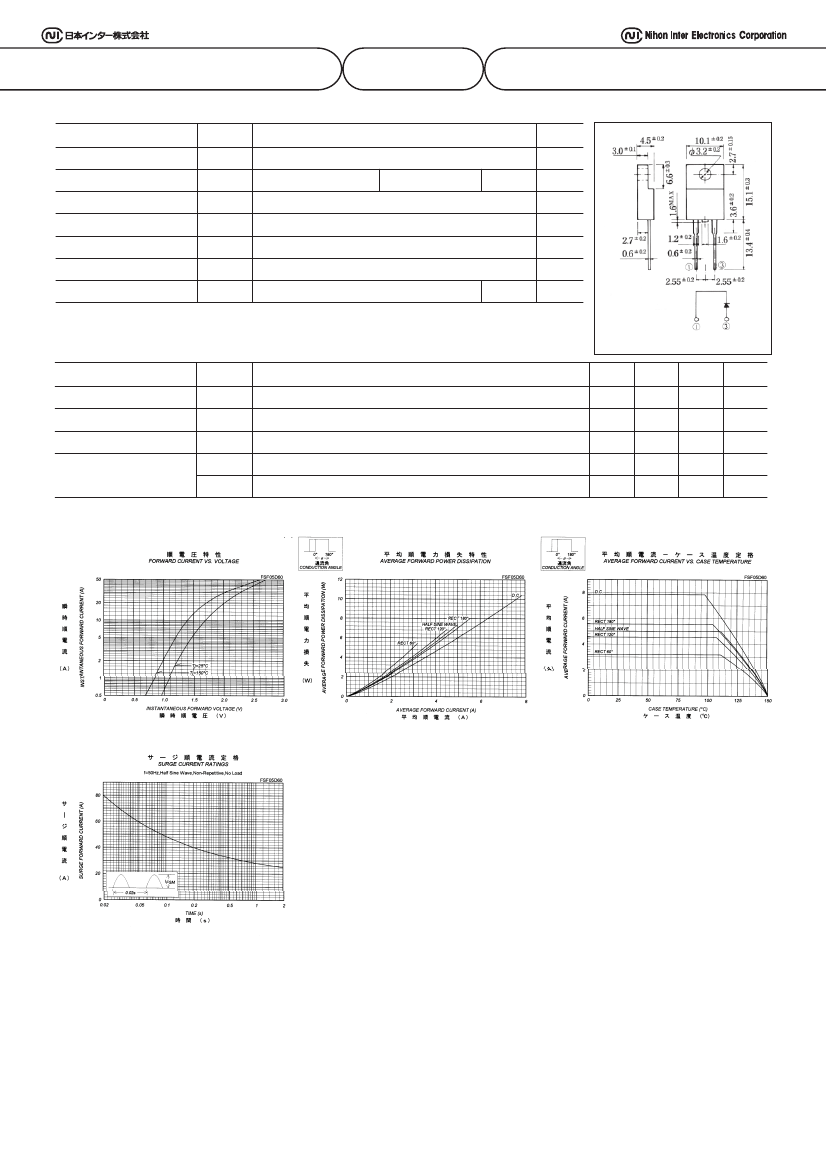

■OUTLINE DRAWING(mm)
Unit
V
5
A
A
A
0.5
N½m
Maximum Ratings
−40∼+150
−40∼+150
推奨値
Recommended Value
■電気的・熱的特性
Item
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
Electrical/ Thermal Characteristics
Symbol
I
RM
V
FM
trr
R
th(j-c)
R
th(c-f)
Conditions
T
j
=25℃, V
RM
=V
RRM
T
j
=25℃, I
FM
=5A
I
FM
=5A, −di/dt=50 A/μs, T
j
=25℃
接合部½ケース間
Junction to Case
ケース½フィン間
Case to Fin
■APPROX. NET WEIGHT:1.7g
Min.
Typ.
Max.
20
1.47
65
5
1.5
Unit
μA
V
ns
℃/W
℃/W
■定格・特性曲線
FIG.1
FIG.2
FIG.3
FIG.4
110
