DURL COLOR LED LAMPS
Pb
Lead-Free Parts
LVYSBKS3392
DATA SHEET
DOC. NO :
REV.
DATE
:
QW0905-LVYSBKS3392
A
: 21 - Mar. - 2006
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LVYSBKS3392
Page 1/6

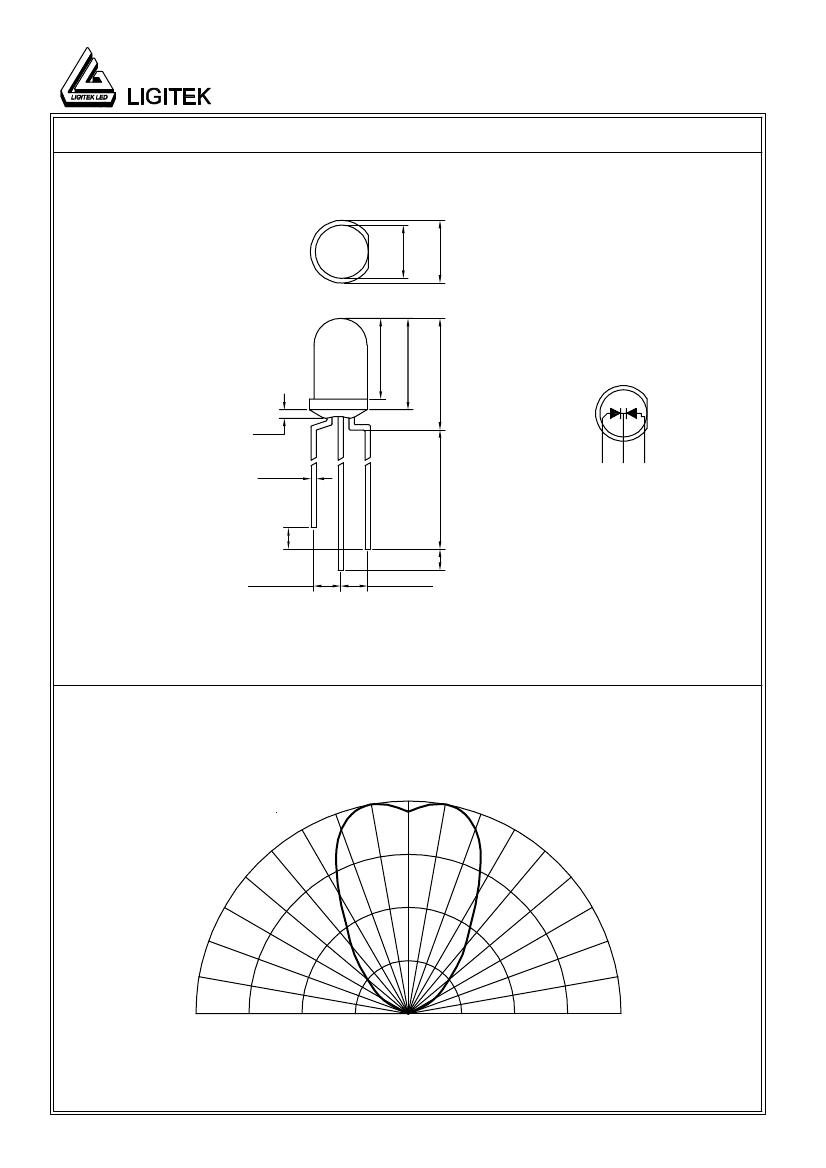

Package Dimensions
5.0
5.9
7.6 8.6
10.5
±
0.5
1.5
MAX
SBKS
VY
□
0.5
TYP
18.0MIN
1
2
3
+
1
-
2
+
3
2.0MIN
2.0MIN
2.54TYP
2.54TYP
1.ANODE BLUE
2.COMMON CATHODE
3.ANODE YELLOW
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
Directivity Radiation
0
°
-30
°
30
°
-60
°
60
°
100% 75% 50%
25%
0
25%
50% 75% 100%
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LVYSBKS3392
Page 2/6
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
VY
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Electrostatic Discharge( * )
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
ESD
T
opr
Tstg
30
60
75
10
2000
-20 ~ +80
-30 ~ +100
SBKS
30
100
120
10
500
mA
mA
mW
UNIT
μ
A
V
℃
℃
*
Static Electricity or power surge will damage the LED. Use of a conductive wrist band or anti-electrosatic
glove is recommended when handing these LED. All devices, equipment and machinery must be properly
grounded.
Typical Electrical & Optical Characteristics (Ta=25
℃
)
COLOR
PART NO
MATERIAL
Emitted
AlGaInP
Yellow
White Diffused
Dominant
wave
length
λ
Dnm
Forward
Spectral
voltage
halfwidth
△λ
nm
@20mA(V)
Luminous
intensity
@20mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Lens
590
475
20
26
Min. Typ. Max. Min. Typ.
1.7 ---- 2.6
---- 3.5 4.2
160
120
390
240
70
70
LVYSBKS3392
InGaN/SiC
Blue
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LVYSBKS3392
Page3/6
Typical Electro-Optical Characteristics Curve
VY CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Relative Intensity vs. Forward Current
1000
3.0
Forward Current(mA)
100
10
Relative Intensity
Normalize @20mA
1.5
2.0
2.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
1.0
0.1
1.0
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
1.2
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
Forward Voltage@20mA
Normalize @25
℃
Relative Intensity@20mA
Normalize @25
℃
1.1
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
1.0
Relative Intensity@20mA
0.5
0.0
500
550
600
650
Wavelength (nm)
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LVYSBKS3392
Page 4/6
Typical Electro-Optical Characteristics Curve
SBK-S CHIP
Fig.1 Forward current vs. Forward Voltage
30
25
20
15
10
5
0
1
2
3
4
5
Fig.2 Relative Intensity vs. Forward Current
Forward Current(mA)
1.5
Relative Intensity
Normalize @20mA
1.25
1.0
0.75
0.5
0.25
0
0
5
10
15
20
25
30
Forward Voltage(V)
Forward Current(mA)
Fig.3 Forward Current vs. Temperature
Fig.4 Relative Intensity vs. Wavelength
Forward Current@20mA
30
20
10
0
0
25
50
75
100
Relative Intensity@20mA
40
1.0
0.5
0
380
430
480
530
580
630
680
Ambient Temperature(
℃
)
Wavelength (nm)
