MPC8536BVTAQG: Description32-BIT, 1000MHz, MICROPROCESSOR, PBGA783, 29 X 29 MM, 2.80 MM HEIGHT, 1 MM PITCH, LEAD FREE, FCBPGA-783; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，128 Pages; ManufacturerFREESCALE (NXP); Environmental Compliance

Download Datasheet Parametric View All

MPC8536BVTAQG Overview

32-BIT, 1000MHz, MICROPROCESSOR, PBGA783, 29 X 29 MM, 2.80 MM HEIGHT, 1 MM PITCH, LEAD FREE, FCBPGA-783

MPC8536BVTAQG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1612021956
Parts packaging code	PGA
package instruction	29 X 29 MM, 2.80 MM HEIGHT, 1 MM PITCH, LEAD FREE, FCBPGA-783
Contacts	783
Reach Compliance Code	not_compliant
ECCN code	5A992
Samacsys Description	Microprocessor, 32-Bit, 1000MHz, CMOS, PBGA783
Samacsys Manufacturer	NXP
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	0
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	133 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-PBGA-B783
JESD-609 code	e3/e4
length	29 mm
low power mode	YES
Humidity sensitivity level	3
Number of terminals	783
Maximum operating temperature	105 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA783,28X28,40
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.76 mm
speed	1000 MHz
Maximum supply voltage	1.155 V
Minimum supply voltage	1.045 V
Nominal supply voltage	1.1 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
width	29 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

Freescale Semiconductor

Data Sheet: Product Preview

Document Number: MPC8536EEC

Rev. 2, 09/2009

MPC8536E

PowerQUICC™ III

Integrated Processor

Hardware Specifications

• High-performance, 32-bit e500 core, scaling up to

1.5 GHz, that implements the Power Architecture™

technology

– 36-bit physical addressing

– Double-precision embedded floating point APU using

64-bit operands

– Embedded vector and scalar single-precision

floating-point APUs using 32- or 64-bit operands

– Memory management unit (MMU)

• Integrated L1/L2 cache

– L1 cache—32-Kbyte data and 32-Kbyte instruction

– L2 cache—512-Kbyte (8-way set associative)

• DDR2/DDR3 SDRAM memory controller with full ECC

support

– One 64-bit/32-bit data bus

– Up to 333-MHz clock (667-MHz data rate)

– Supporting up to 16 Gbytes of main memory

– Using ECC, detects and corrects all single-bit errors and

detects all double-bit errors and all errors within a nibble

– Invoke a level of system power management by

asserting MCKE SDRAM signal on-the-fly to put the

memory into a low-power sleep mode

– Both hardware and software options to support

battery-backed main memory

• Integrated security engine (SEC) optimized to process all

the algorithms associated with IPsec, IKE, SSL/TLS,

iSCSI, SRTP, IEEE Std 802.16e™, and 3GPP.

– XOR engine for parity checking in RAID storage

applications

• Enhanced Serial peripheral interfaces (eSPI)

– Support boot capability from eSPI

• Two enhanced three-speed Ethernet controllers (eTSECs)

with SGMII support

– Three-speed support (10/100/1000 Mbps)

– Two IEEE Std 802.3™, IEEE 802.3u, IEEE 802.3x,

IEEE 802.3z, IEEE 802.3ac, IEEE 802.3ab, and

IEEE Std 1588™-compatible controllers

FC-PBGA–783

29 mm

•

– Support for various Ethernet physical interfaces: GMII,

TBI, RTBI, RGMII, MII, RGMII, RMII, and SGMII

– Support TCP/IP acceleration and QOS features

– MAC address recognition and RMON statistics support

– Support ARP parsing and generating wake-up events

based on the parsing results while in deep sleep mode

– Support accepting and storing packets while in deep

sleep mode

High-speed interfaces (multiplexed) supporting:

– Three PCI Express interfaces

– PCI Express 1.0a compatible

– One x8/x4/x2/x1 PCI Express interface

– Two x4/x2/x1 ports, or,

– One x4/x2/x1 port and Two x2/x1 ports

– Two SGMII interfaces

– Two Serial ATA (SATA) Controllers support SATA I and

SATA II data rates

PCI 2.2 compatible PCI controller

Three universal serial bus (USB) dual-role controllers

comply with USB specification revision 2.0

133-MHz, 32-bit, enhanced local bus (eLBC) with memory

controller

Enhanced secured digital host controller (eSDHC) used for

SD/MMC card interface

– Support boot capability from eSDHC

Integrated four-channel DMA controller

Dual I

C and dual universal asynchronous

receiver/transmitter (DUART) support

Programmable interrupt controller (PIC)

Power management, low standby power

– Support Doze, Nap, Sleep, Jog, and Deep Sleep mode

– PMC wake on: LAN activity, USB connection or remote

wakeup, GPIO, internal timer, or external interrupt event

System performance monitor

IEEE Std 1149.1™-compatible, JTAG boundary scan

783-pin FC-PBGA package, 29 mm

29 mm

This document contains information on a product under development. Freescale reserves the

right to change or discontinue this product without notice.

Table of Contents

Pin Assignments and Reset States . . . . . . . . . . . . . . . . . . . . .3

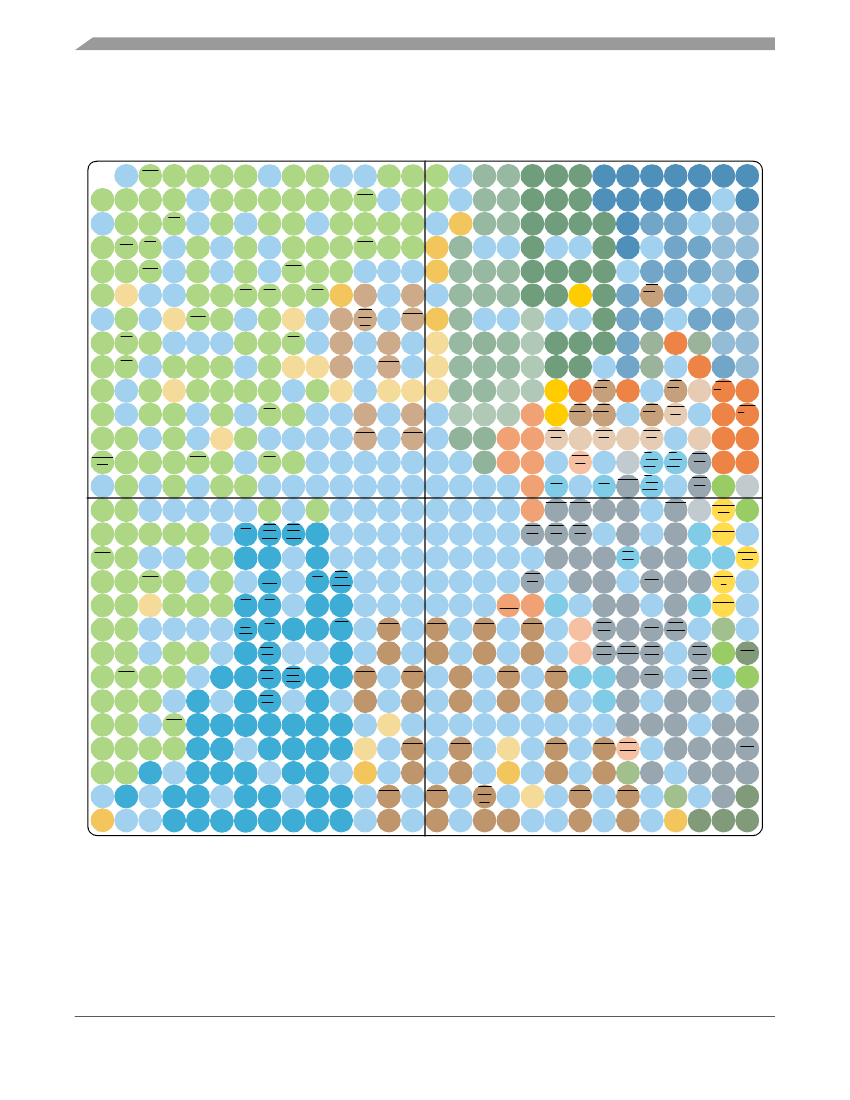

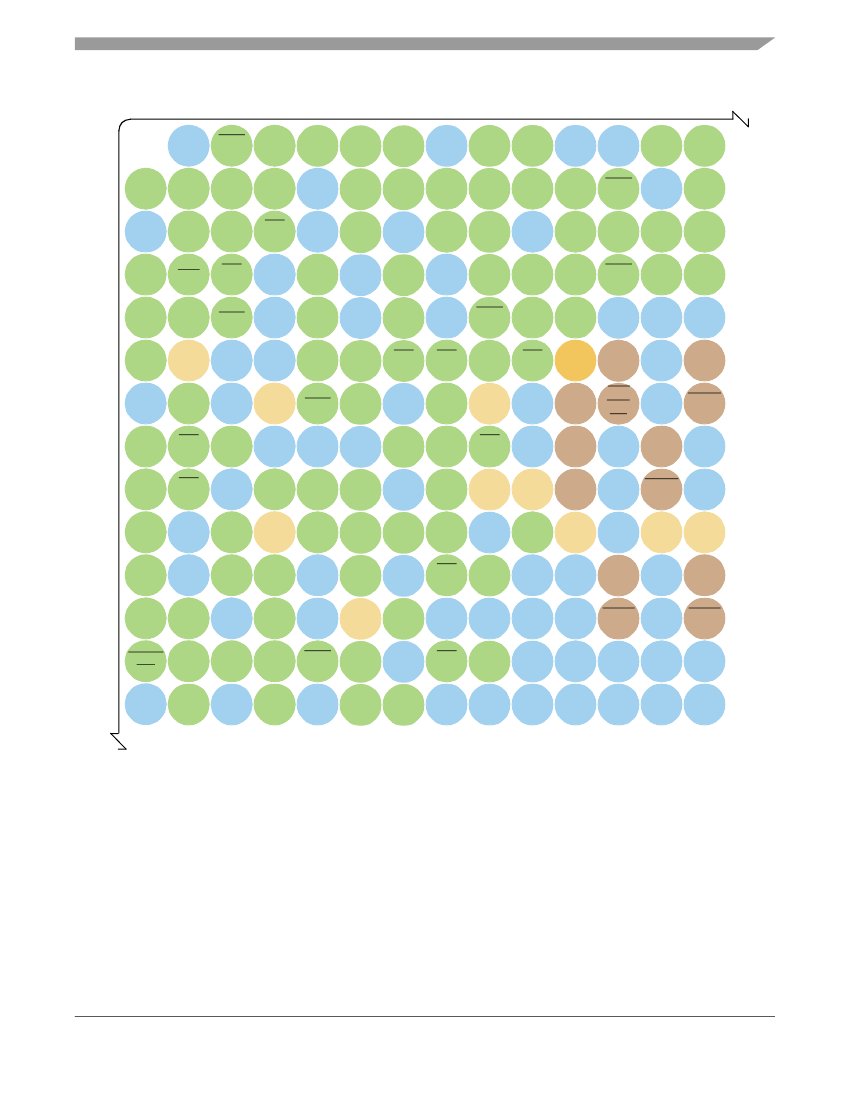

1.1 Pin Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

2.1 Overall DC Electrical Characteristics . . . . . . . . . . . . . .21

2.2 Power Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

2.3 Power Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .26

2.4 Input Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

2.5 RESET Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . .31

2.6 DDR2 and DDR3 SDRAM . . . . . . . . . . . . . . . . . . . . . .32

2.7 eSPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

2.8 DUART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

2.9 Ethernet: Enhanced Three-Speed Ethernet (eTSEC),

MII Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

2.10 Ethernet Management Interface Electrical Characteristics

2.11 USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

2.12 enhanced Local Bus Controller (eLBC) . . . . . . . . . . . .66

2.13 Enhanced Secure Digital Host Controller (eSDHC) . . .75

2.14 Programmable Interrupt Controller (PIC) . . . . . . . . . . .77

2.15 JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

2.16 Serial ATA (SATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

2.17 I

C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

2.18 GPIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

2.19 PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

2.20 High-Speed Serial Interfaces . . . . . . . . . . . . . . . . . . . .91

2.21 PCI Express. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

2.23 Clocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

2.24 Thermal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Hardware Design Considerations . . . . . . . . . . . . . . . . . . . . 114

3.1 System Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

3.2 Power Supply Design and Sequencing . . . . . . . . . . . 115

3.3 Pin States in Deep Sleep State . . . . . . . . . . . . . . . . . 116

3.4 Decoupling Recommendations . . . . . . . . . . . . . . . . . 116

3.5 SerDes

Block

Power

Supply

Decoupling

Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . 116

3.6 Connection Recommendations . . . . . . . . . . . . . . . . . 116

3.7 Pull-Up and Pull-Down Resistor Requirements . . . . . 117

3.8 Output Buffer DC Impedance . . . . . . . . . . . . . . . . . . 117

3.9 Configuration Pin Muxing . . . . . . . . . . . . . . . . . . . . . 118

3.10 JTAG Configuration Signals . . . . . . . . . . . . . . . . . . . 118

3.11 Guidelines for High-Speed Interface Termination . . . 121

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

4.1 Part Numbers Fully Addressed by This Document . . 123

4.2 Part Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

4.3 Part Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

5.1 Package Parameters for the MPC8536E FC-PBGA . 124

5.2 Mechanical Dimensions of the MPC8536E FC-PBGA125

Product Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . 126

MPC8536E PowerQUICC™ III Integrated Processor Hardware Specifications, Rev. 2
