2TL141-10K datasheet, PDF - EEWORLD Datasheet

2TL141-10K: DescriptionToggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size109KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

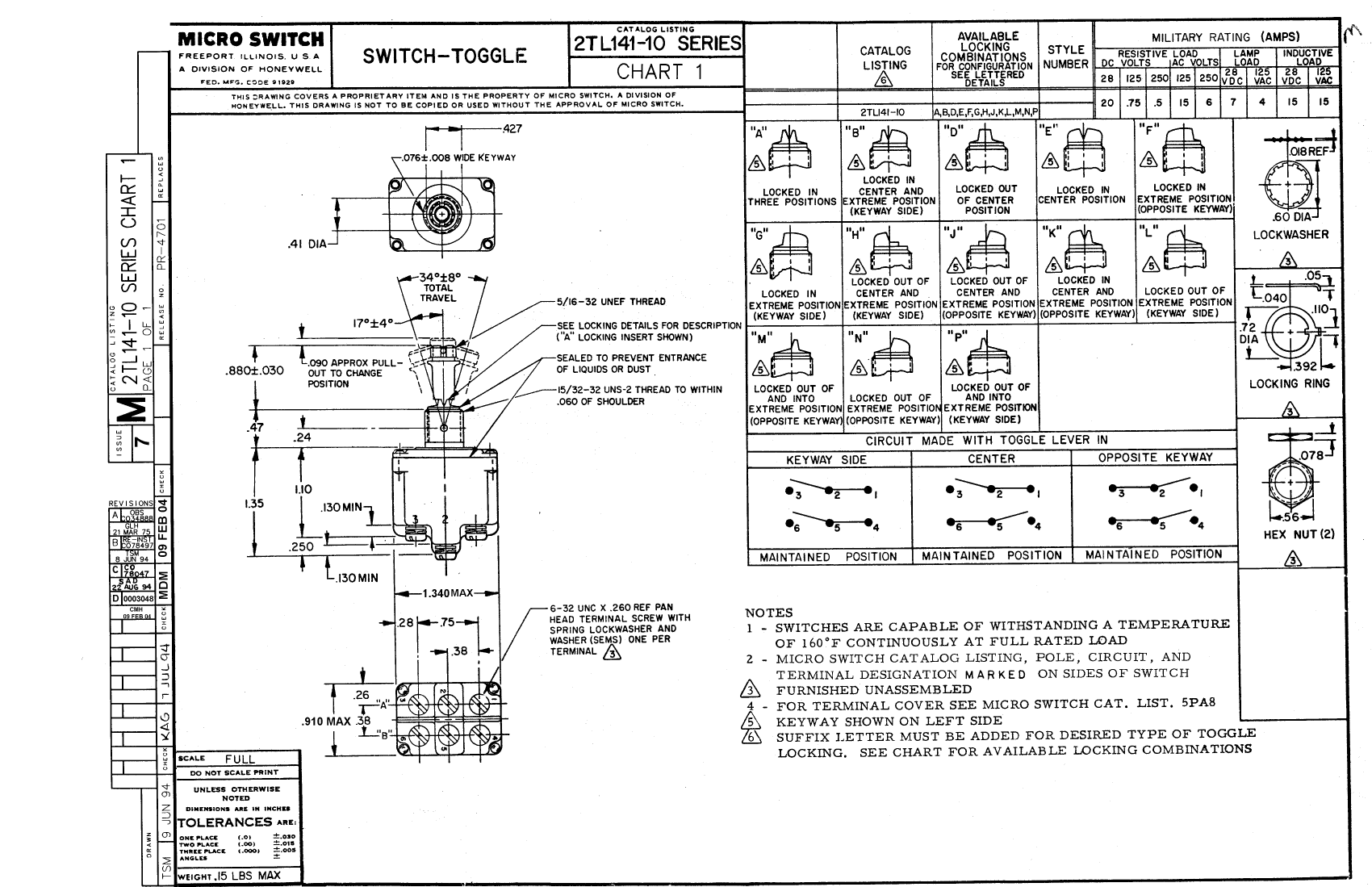

2TL141-10K Overview

Toggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	23.11 mm
body height	34.29 mm
Body length or diameter	34.04 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	2TL141-10
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1
