Marvell Alaska 88E3015/88E3016/88E3018
Single-Port Fast Ethernet Transceivers
PRODUCT OVERVIEW
The Marvell
®
Alaska
®
88E3015, 88E3016, and 88E3018 are Marvell’s fourth-generation DSP-based physical layer (PHY)
transceivers for Fast Ethernet (FE) applications. The devices contain all the active circuitry required to convert data
streams to and from a Media Access Controller (MAC) and to and from the physical media. The 88E3015, 88E3016, and
88E3018 devices incorporate IEEE 802.3u auto-negotiation, supporting both 100BASE-TX and 10BASE-T networks over
twisted-pair cable in full-duplex or half-duplex mode.
The 88E3015, 88E3016, and 88E3018 all support the Reduced Gigabit Media Independent Interface (RGMII), with the 88E3015
and 883018 also supporting the Media Independent Interface (MII). They all feature a mode of operation supporting IEEE-
to provide a mechanism for transferring information from the local station to the link partner that indicates that a remote
fault has occurred in 100BASE-FX mode.
The Alaska 88E3015, 88E3016, and 88E3018 feature the Marvell Virtual Cable Tester
®
(VCT™) technology, which enables
IT managers and networking equipment manufacturers to remotely analyze the quality and characteristics of the attached
cable plant. Additionally, the devices use advanced mixed-signal processing and power-management techniques for extremely
low power dissipation and high port count system integration.
The 88E3015, 88E3016, and 88E3018 devices can operate from a single 2.5v or 3.3v supply. They are offered in low-pin
count QFN packages which reduce board space and are ideal for small form-factor applications. In addition, the 88E3016
and 88E3018 are the only single-port FE PHYs available in the industry which are pin-upgradeable to Gigabit Ethernet.
BLOCK DIAGRAM

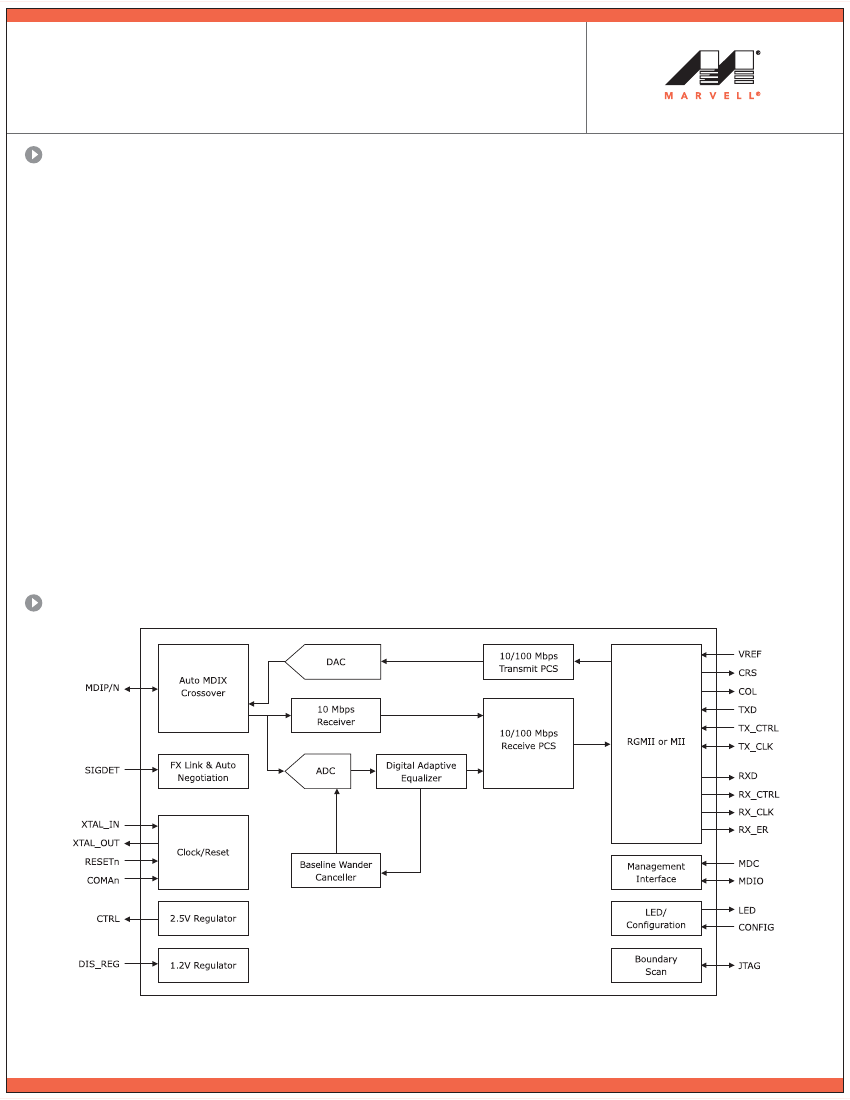

Fig 1. 88E3018 Functional Block Diagram
Marvell Alaska 88E3015/88E3016/88E3018
FEATURES
•
Supports RGMII interface (MII also supported in the 88E3015 and 88E3018)
•
Automatic MDI/MDIX crossover at all speeds of operation
BENEFITS
•
Reduces pin count and offers Gigabit Ethernet upgrade
•
Eases installation and reduces costs by working with both straight
and cross-over cables
•
•
•
•
•
•
Enables the PHY transmit path even if no link is established
•
•
•
•
PECL interface supporting 100BASE-FX applications
•
IEEE 802.3u compliant auto-negotiation
•
MDC/MDIO management interface
•
Virtual Cable Tester (VCT)
•
Coma mode support and energy detect feature
•
Supports 802.3ah unidirectional enable
•
Supports three LEDs per port
•
88E3016/88E3018: Pin-upgradeable to Marvell Gigabit Ethernet PHY
•
88E3016/88E3018: Supports IEEE 1149.1 JTAG
APPLICATIONS
Despite the existence of advanced Gigabit Ethernet, 10/100 Ethernet maintains a strong presence in corporate networks, in
small home networks and in various media devices. The Marvell Alaska single-port FE PHY transceivers provide connectivity
solutions for a variety of applications including DVRs, game consoles, media vaults, video cameras, printers, and notebook
or desktop PCs. The Alaska 88E3015, 88E3016, and 88E3018 offer low-power dissipation, enabling system manufacturers
to decrease their system costs by reducing power supply requirements.
88E3015
Package
Pin-Upgradeable to GbE
MII
RGMII
Virtual Cable Tester
®
Fiber Support
Parallel LEDs
Power Management
JTAG Support
56-Pin QFN
No
Yes
Yes
Yes
Yes
Yes
Yes
No
88E3016
64-Pin QFN
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
88E3018
64-Pin QFN
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Fig 2. Device Feature Comparison
THE MARVELL ADVANTAGE:
Marvell products come with complete reference designs which include board layout designs, software, manufacturing
engineers collaborate closely with end customers to develop and deliver new leading-edge products for quick time-to-market. Marvell utilizes
world-leading semiconductor foundry and packaging services to reliably deliver high-volume and low-cost total solutions.
ABOUT MARVELL:
Marvell is the leader in storage, communications and consumer silicon solutions. Marvell’s diverse product portfolio includes
switching, transceiver, communications controller, processors, wireless, power management and storage solutions that power the entire communications
infrastructure, including enterprise, metro, home, storage, and digital entertainment solutions. For more information, visit our website at
www.marvell.com.
Marvell Semiconductor, Inc.
5488 Marvell Lane
Santa Clara, CA 95054
Phone 408.222.2500
www.marvell.com
Copyright © 2007. Marvell International Ltd. All rights reserved. Marvell, the Marvell logo,
Moving Forward Faster, Alaska, Datacom Systems on Silicon, Fastwriter, Libertas, Link Street,
NetGX, PHYAdvantage, Prestera, Raising The Technology Bar, The Technology Within, Virtual
Cable Tester, and Yukon are registered trademarks of Marvell. Marvell Makes It All Possible,
Ants, AnyVoltage, Discovery, DSP Switcher, Feroceon, GalNet, GalTis, Horizon, RADLAN, UniMAC,
and VCT are trademarks of Marvell. All other trademarks are the property of their respective owners.
88E3015/16/18-001
2/07
