BR93C86-WDW6TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR93C86-WDW6TP

BR93C86-WDW6TP: DescriptionIC EEPROM 8KBIT 2MHZ 8TSSOP; Categorystorage storage; File Size319KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

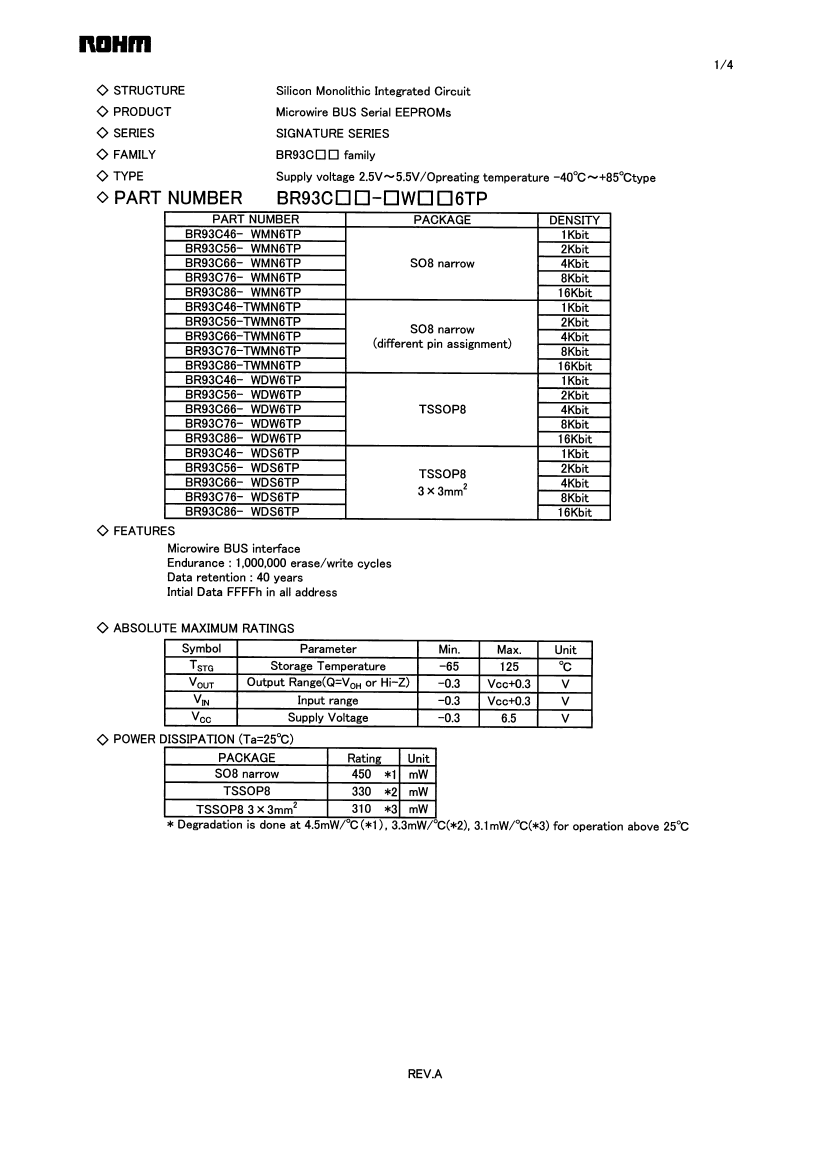

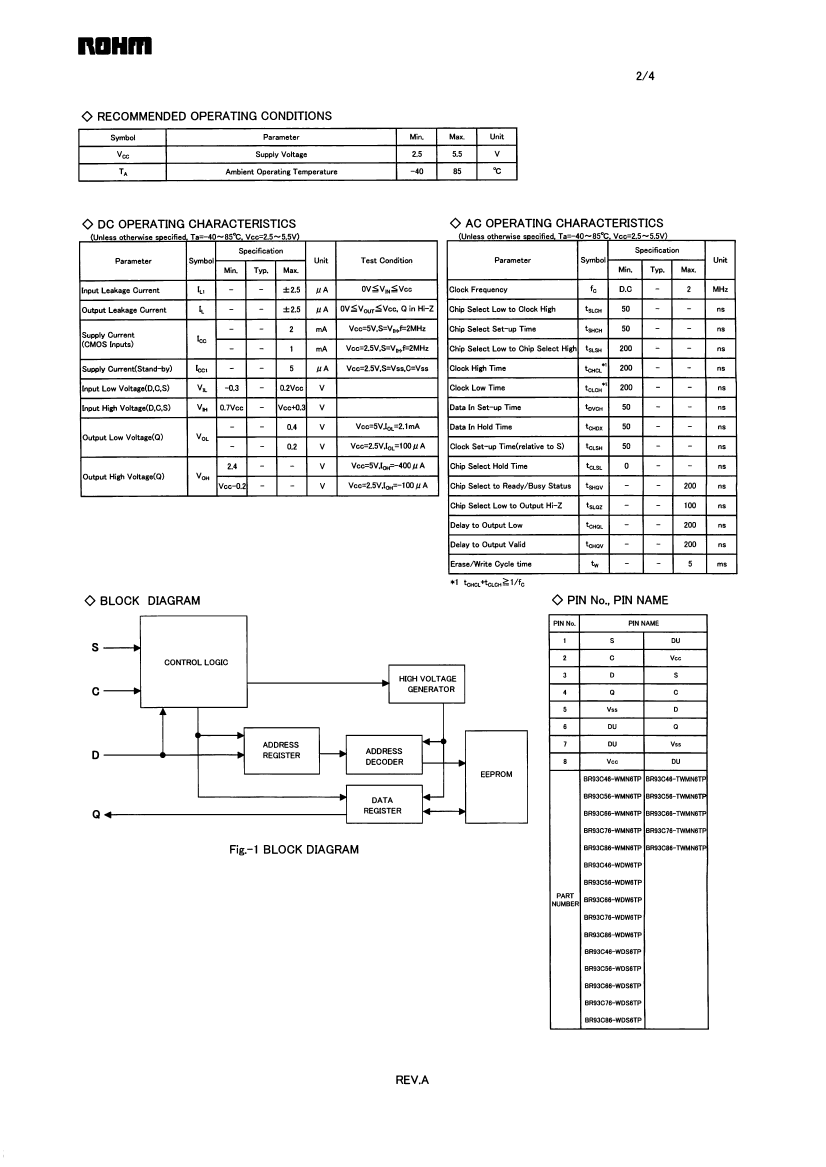

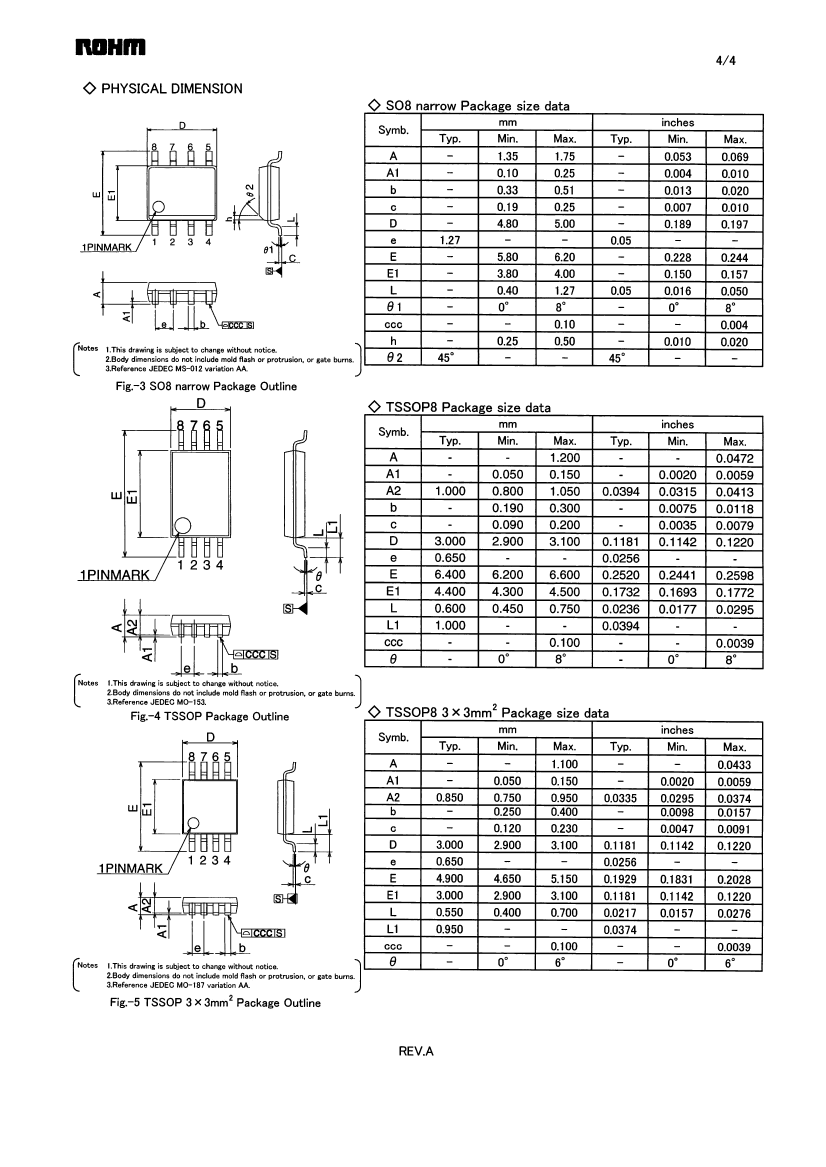

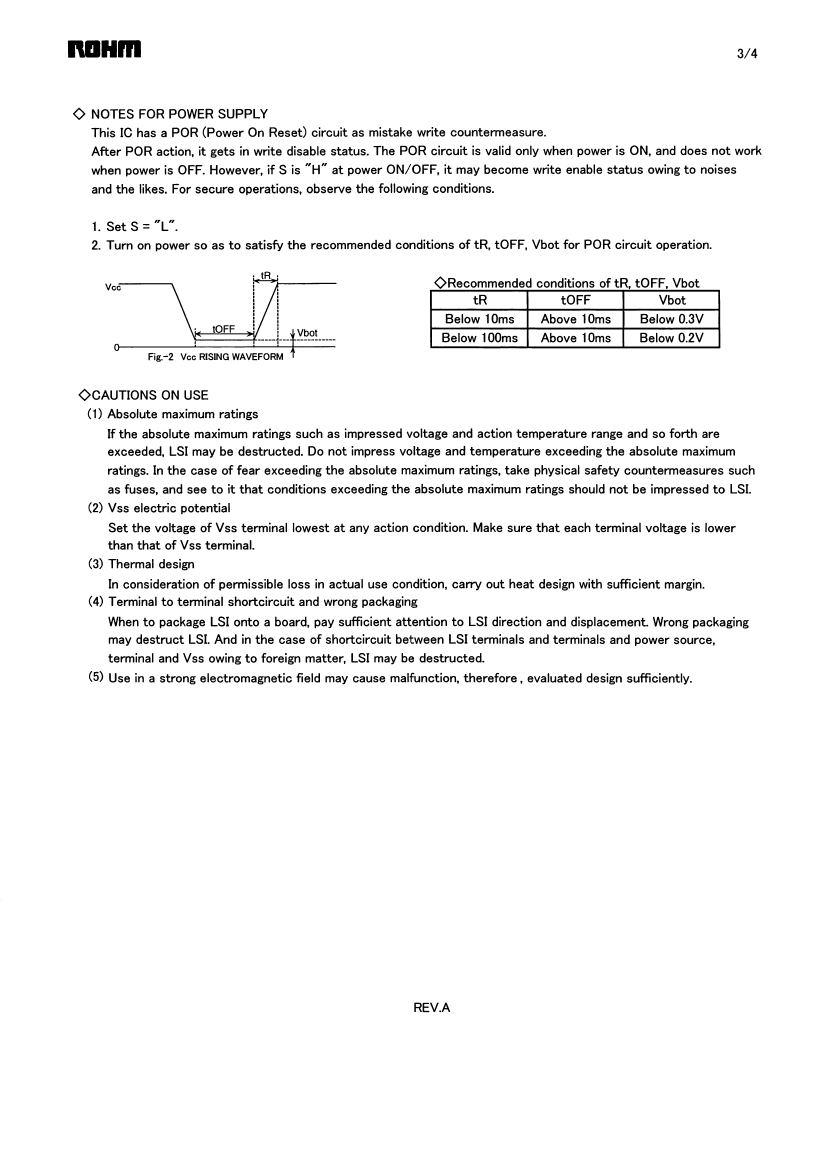

BR93C86-WDW6TP Overview

IC EEPROM 8KBIT 2MHZ 8TSSOP

BR93C86-WDW6TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Maximum clock frequency (fCLK)	2 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
JESD-30 code	S-PDSO-G8
length	4.4 mm
memory density	16384 bi
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1KX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	SQUARE
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Serial bus type	MICROWIRE
Maximum standby current	0.000005 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
Maximum write cycle time (tWC)	5 ms
write protect	SOFTWARE
