SMAJ550

Description
300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
CategoryDiscrete semiconductor    diode
File Size80KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

SMAJ550 Overview

300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC

SMAJ550 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay
Reach Compliance Codeunknow
Maximum clamping voltage760 V
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 codee0
polarityUNIDIRECTIONAL
Maximum repetitive peak reverse voltage495 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)

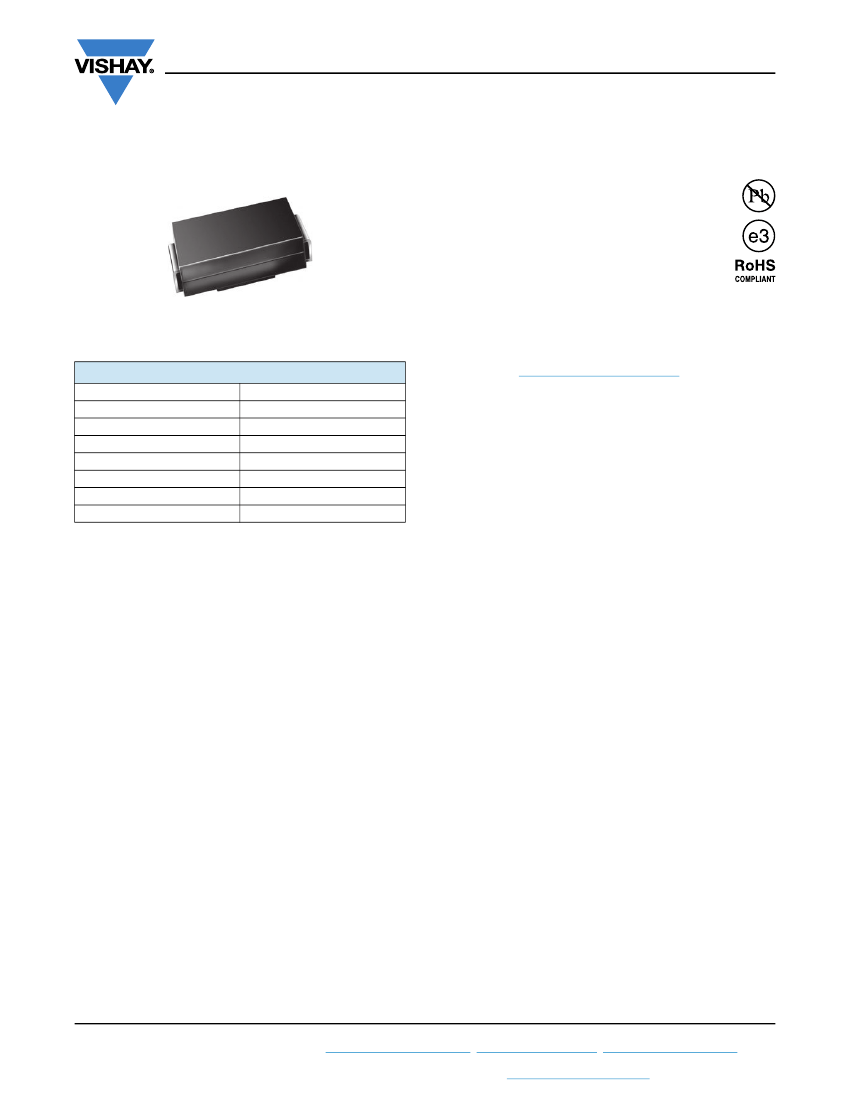

SMAJ530, SMAJ550
www.vishay.com
Vishay General Semiconductor
Surface Mount T
RANS
Z
ORB®
Transient Voltage Suppressors
FEATURES
• Glass passivated chip junction
• Available in uni-directional polarity only
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SMA
(DO-214AC)
PRIMARY CHARACTERISTICS
V
BR
(uni-directional)
V
WM
P
PPM
P
D
I
FSM
(uni-directional only)
T
J
max.
Polarity
Package
530 V to 550 V
477 V, 495 V
300 W
2.5 W
40 A
150 °C
Uni-directional
SMA (DO-214AC)
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage
transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer,
computer, industrial, automotive, and telecommunication.
MECHANICAL DATA
Case:
SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant and industrial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
color band denotes cathode end
APPLICATION NOTES
• Respect thermal resistance (PCB Layout) - as the
temperature coefficient also contributes to the clamping
voltage
• Select minimum breakdown voltage, so you get
acceptable power dissipation and PCB tie point
temperature
• Devices with higher breakdown voltage will have a shorter
conduction time and will dissipate less power
• Clamping voltage is influenced by internal resistance -
design approximation is 7 V per 100 mA slope
• Keep temperature of TVS lower than TOPSwitch
®
as a
recommendation
• Maximum current is determined by the maximum T
J
and
can be higher than 300 mA
• Contact supplier for
current arrangements
different
clamping
voltage/
• Minimum breakdown voltage can be customized for other
applications. Contact supplier
• TOPSwitch is a
Integrations, Inc.
registered
trademark
of
Power
Revision: 09-Aug-2018
Document Number: 88391
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

SMAJ550 Related Products

SMAJ550 SMAJ530 SMAJ530-M3/5A SMAJ530-M3/61
Description 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC 300 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC TVS DIODE 188V 328V DO214AC TVS DIODE 188V 328V DO214AC
Is it Rohs certified? incompatible incompatible conform to conform to
Maker Vishay Vishay Vishay Vishay
Reach Compliance Code unknow unknow not_compliant not_compliant
Diode type TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 code e0 e0 e3 e3
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL
Maximum repetitive peak reverse voltage 495 V 477 V 477 V 477 V
surface mount YES YES YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Matte Tin (Sn) Matte Tin (Sn)
