1825HC123ZA11A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 1825HC123ZA11A

1825HC123ZA11A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 3000V, 80% +Tol, 20% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 1825, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size95KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

1825HC123ZA11A Overview

Ceramic Capacitor, Multilayer, Ceramic, 3000V, 80% +Tol, 20% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 1825, CHIP, ROHS COMPLIANT

1825HC123ZA11A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1852742582
package instruction	, 1825
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.54 mm
JESD-609 code	e4
length	4.5 mm
Manufacturer's serial number	1825
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	80%
Rated (DC) voltage (URdc)	3000 V
series	1825(3000V,X7R)HV
size code	1825
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Silver/Palladium (Ag/Pd)
Terminal shape	WRAPAROUND
width	6.4 mm

Preview

Download Datasheet

View All

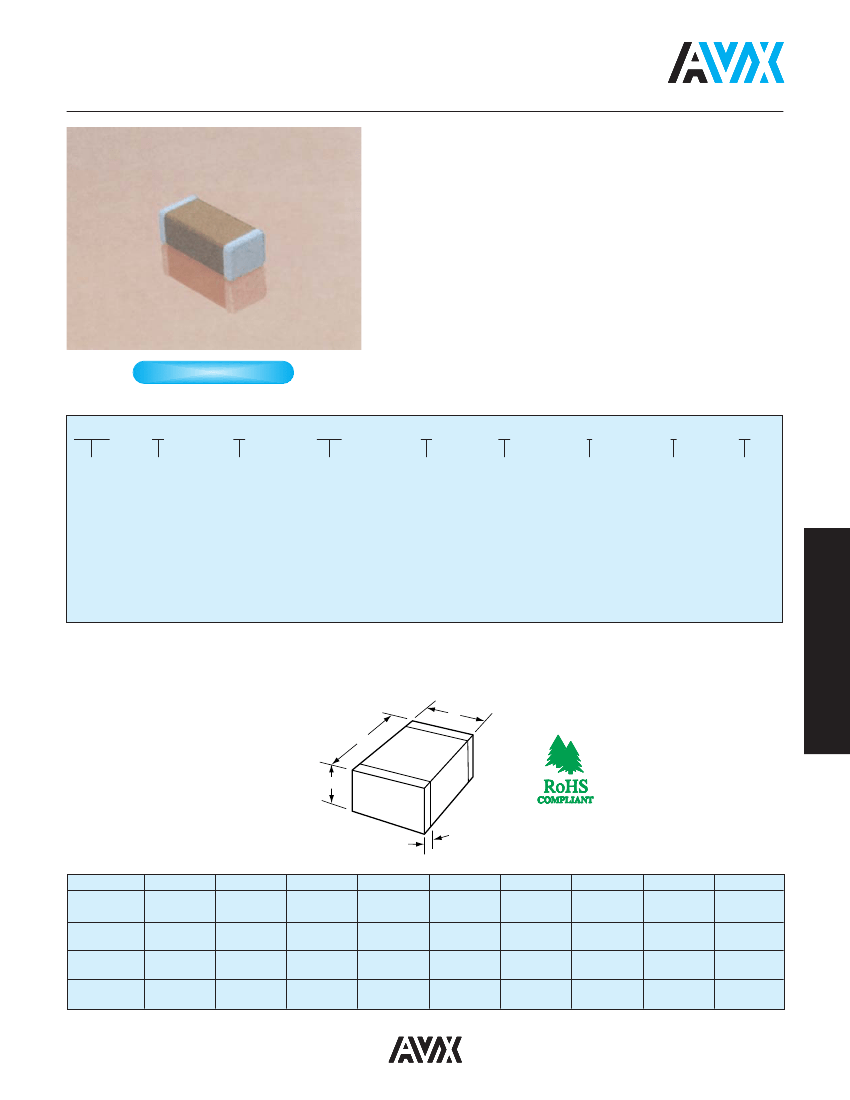

High Voltage MLC Chips

For 600V to 5000V Applications

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chip capacitors meet these performance characteristics and are

designed for applications such as snubbers in high frequency power

converters, resonators in SMPS, and high voltage coupling/dc blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

Larger physical sizes than normally encountered chips are used to make

high voltage MLC chip products. Special precautions must be taken in

applying these chips in surface mount assemblies. The temperature

gradient during heating or cooling cycles should not exceed 4ºC per

second. The preheat temperature must be within 50ºC of the peak tem-

perature reached by the ceramic bodies through the soldering process.

Chip sizes 1210 and larger should be reflow soldered only. Capacitors

may require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either

thru-hole or SMT configurations (for details see section on high voltage

leaded MLC chips).

NEW 630V RANGE

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

3640

***

Voltage

600V/630V =

1000V =

1500V =

2000V =

2500V =

3000V =

4000V =

5000V =

271

Temperature Capacitance Code Capacitance

Test Level

Termination*

Coefficient

(2 significant digits

Tolerance

A = Standard 1 = Pd/Ag

C0G = A

+ no. of zeros)

C0G:J = ±5%

T = Plated

X7R = C

Examples:

K = ±10%

Ni and Sn

(RoHS Compliant)

10 pF = 100

M = ±20%

100 pF = 101 X7R:K = ±10%

1,000 pF = 102

M = ±20%

22,000 pF = 223

Z = +80%,

220,000 pF = 224

-20%

1 µF = 105

Packaging

Special

1 = 7" Reel

Code

3 = 13" Reel A = Standard

9 = Bulk

*Note:

Terminations with 5% minimum lead (Pb) is available, see pages 81 and 82 for LD style.

Leaded terminations are available, see pages 85 and 86.

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

0805

1206

1210*

1808*

1812*

1825*

2220*

2225*

3640*

2.01 ± 0.20

3.20 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.70 ± 0.40

5.72 ± 0.25

9.14 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.224 ± 0.016) (0.225 ± 0.010) (0.360 ± 0.010)

(W) Width

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.20 ± 0.20

6.40 ± 0.30

5.00 ± 0.40

6.35 ± 0.25

10.2 ± 0.25

(0.049 ±0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.197 ± 0.016) (0.250 ± 0.010) (0.400 ± 0.010)

(T) Thickness

1.30

1.52

1.70

2.03

2.54

3.30

2.54

Max.

(0.051)

(0.060)

(0.067)

(0.080)

(0.100)

(0.130)

(0.100)

(t) terminal min. 0.50 ± 0.25

0.25 (0.010)

0.76 (0.030)

max. (0.020 ± 0.010) 0.75 (0.030)

0.75 (0.030)

1.02 (0.040)

1.52 (0.060)

*Reflow Soldering Only
