3640KC182ZAT4A

Description
Ceramic Capacitor, Multilayer, Ceramic, 5000V, 80% +Tol, 20% -Tol, X7R, 15% TC, 0.0018uF, Surface Mount, 3640, CHIP
CategoryPassive components    capacitor
File Size466KB,5 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

3640KC182ZAT4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 5000V, 80% +Tol, 20% -Tol, X7R, 15% TC, 0.0018uF, Surface Mount, 3640, CHIP

3640KC182ZAT4A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7101938028
package instruction, 3640
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.0018 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high2.794 mm
JESD-609 codee3
length10.2 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, 13 Inch
positive tolerance80%
Rated (DC) voltage (URdc)5000 V
size code3640
surface mountYES
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width9.14 mm

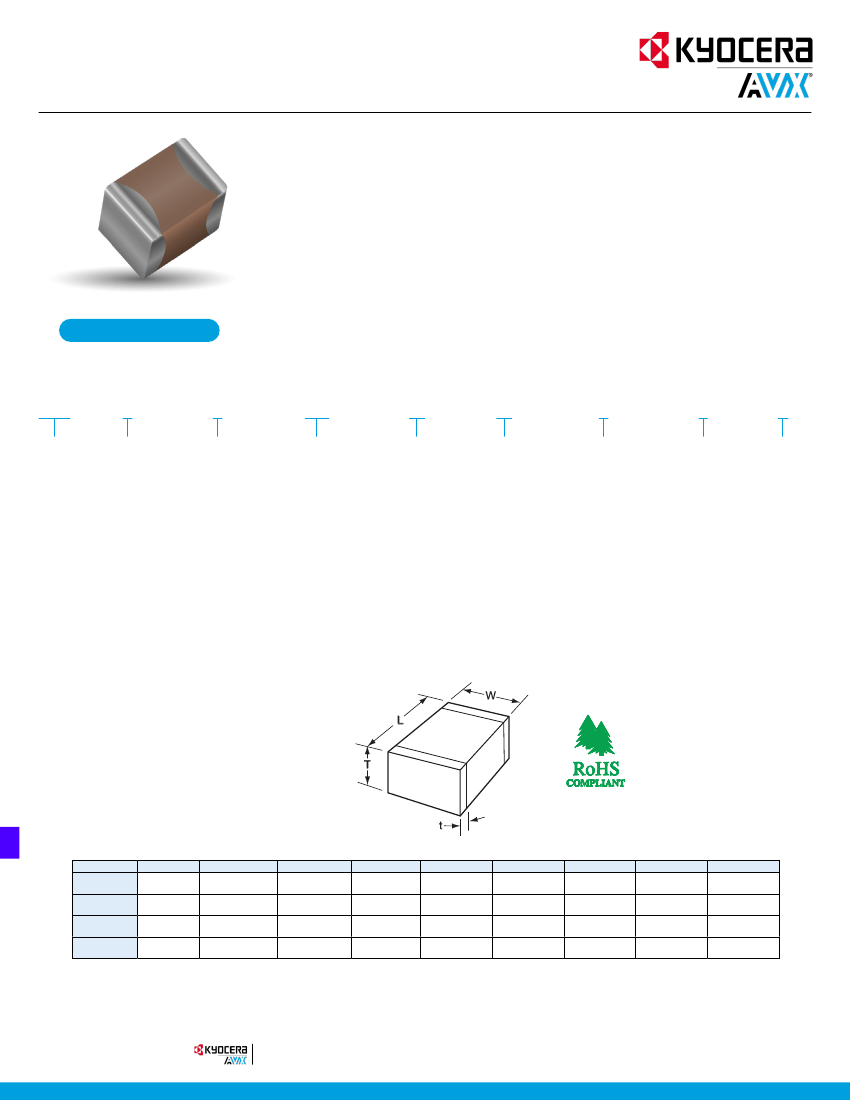

High Voltage MLC Chips
For 600V to 5000V Applications
High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems.
AVX special high voltage MLC chip capacitors meet these performance characteristics and are designed for
applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage
coupling/dc blocking. These high voltage chip designs exhibit low ESRs at high frequencies.
Larger physical sizes than normally encountered chips are used to make high voltage MLC chip products. Special
precautions must be taken in applying these chips in surface mount assemblies. The temperature gradient during
heating or cooling cycles should not exceed 4ºC per second. The preheat temperature must be within 50ºC of
the peak temperature reached by the ceramic bodies through the soldering process. Chip sizes 1210 and larger
should be reflow soldered only. Capacitors may require protective surface coating to prevent external arcing.
For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or SMT configurations (for details
see section on high voltage leaded MLC chips)
NEW 630V RANGE
HOW TO ORDER
1808
AVX
Style
0805
1206
1210
1808
1812
1825
2220
2225
3640
***
A
C = 600V/630V
A = 1000V
S = 1500V
G = 2000V
W = 2500V
H = 3000V
J = 4000V
K = 5000V
A
Temperature
Coefficient
271
Capacitance
Code
M
Capacitance
Tolerance
A
A = Standard
T
T = Plated Ni and Sn
(RoHS Compliant)
2
2 = 7” Reel**
4 = 13” Reel
A
Special
Code
Voltage
Test Level
Termination*
Packaging
A = NPO (C0G)
C = X7R
(2 significant digits
+ no. of zeros)
Examples:
10 pF = 100
100 pF = 101
1,000 pF = 102
22,000 pF = 223
220,000 pF = 224
1 μF = 105
C0G: J = ±5%
K = ±10%
M = ±20%
X7R: K = ±10%
M = ±20%
Z = +80%,
-20%
A = Standard
Notes:
1. Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations. Contact
factory for availability of Termination and Tolerance options for Specific Part Numbers.
2. *Terminations with 5% minimum lead (Pb) is available, see pages 100 and 101 for LD style.
Leaded terminations are available, see pages 102-106.
**The 3640 Style is not available on 7” Reels.
*** AVX offers nonstandard chip sizes. Contact factory for details.
DIMENSIONS:
millimeters (inches)
SIZE
0805
1206
3.30 ± 0.30
(0.130 ± 0.012)
1.60 ± 0.20
(0.063 ± 0.008)
1.80
(0.071)
0.60 ± 0.20
(0.024 ± 0.008)
1210*
3.30 ± 0.40
(0.130 ± 0.016)
2.50 ± 0.30
(0.098 ± 0.012)
2.80
(0.110)
0.75 ± 0.35
(0.030 ± 0.014)
1808*
4.60 ± 0.50
(0.181 ± 0.020)
2.00 ± 0.20
(0.079 ± 0.008)
2.20
(0.087)
0.75 ± 0.35
(0.030 ± 0.014)
1812*
4.60 ± 0.50
(0.181 ± 0.020)
3.20 ± 0.30
(0.126 ± 0.012)
2.80
(0.110)
0.75 ± 0.35
(0.030 ± 0.014)
1825*
4.60 ± 0.50
(0.181 ± 0.020)
6.30 ± 0.40
(0.248 ± 0.016)
3.40
(0.134)
0.75 ± 0.35
(0.030 ± 0.014)
2220*
5.70 ± 0.50
(0.224 ± 0.020)
5.00 ± 0.40
(0.197 ± 0.016)
3.40
(0.134)
0.85 ± 0.35
(0.033 ± 0.014)
2225*
5.72 ± 0.25
(0.225 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
2.54
(0.100)
0.85 ± 0.35
(0.033 ± 0.014)
3640*
9.14 ± 0.25
(0.360 ± 0.010)
10.2 ± 0.25
(0.400 ± 0.010)
2.54
(0.100)
0.76 (0.030)
1.52 (0.060)
2.10 ± 0.20
(L) Length
(0.083 ± 0.008)
1.25 ± 0.20
(W) Width
(0.049 ±0.008)
(T) Thickness
1.35
Max.
(0.053)
min.
0.50 ± 0.20
(t) terminal
max. (0.020 ± 0.008)
*Reflow Soldering Only
94
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
082621
surface mount ceramic capacitor products
