LFSPXO072772REEL: DescriptionCMOS Output Clock Oscillator, 27MHz Nom; CategoryPassive components oscillator; File Size128KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO072772REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO072772REEL	-	-	View	Buy Now

LFSPXO072772REEL Overview

CMOS Output Clock Oscillator, 27MHz Nom

LFSPXO072772REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339922781
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	1.6mm x 1.2mm x 0.6mm
longest rise time	5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

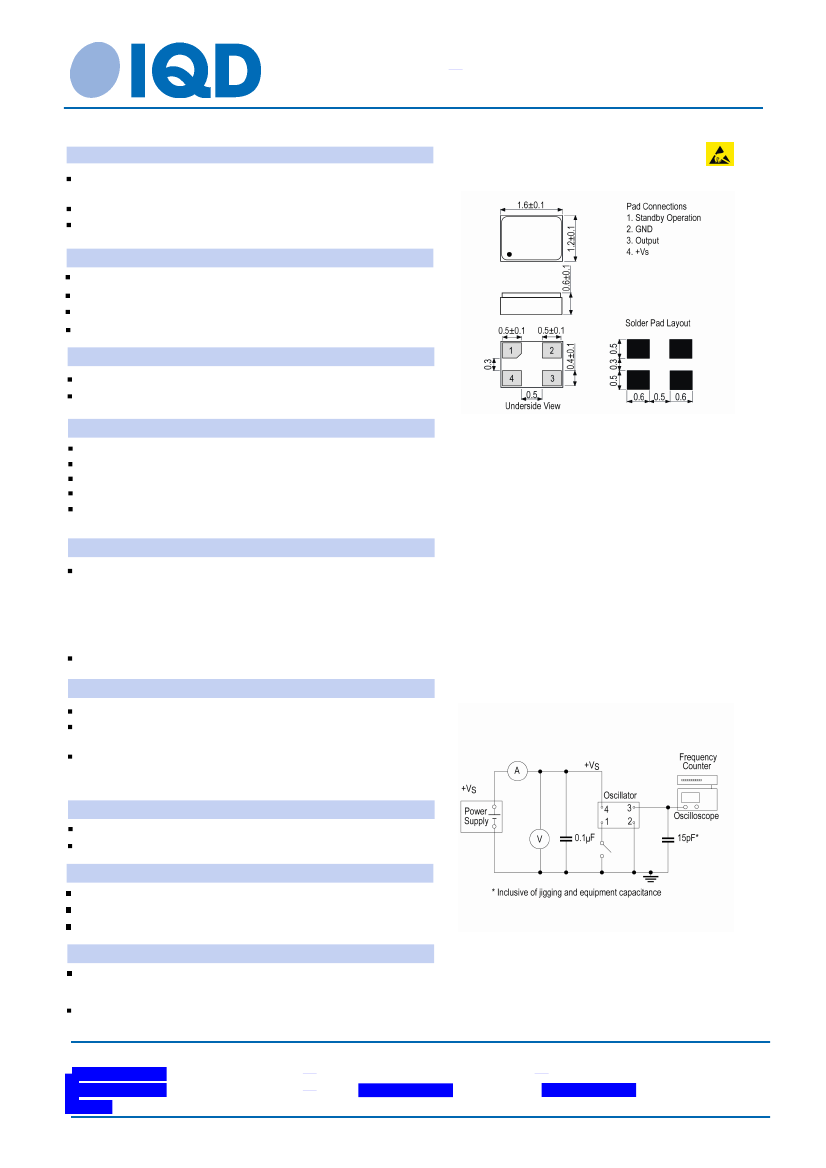

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO072772Reel

Customer Part:

Description

Standard 1.6 x 1.2mm crystal oscillator in a hermetically sealed

ceramic package with a seam sealed metal lid.

Model

IQXO-640

Model Issue number

Frequency Parameters

Outline (mm)

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

27.0MHz

±50.00ppm

-40.00 to 85.00°C

±5ppm max/yr @ 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±10%

6.000mA

CMOS

Output Compatibility

Drive Capability

15pF max

Rise and Fall Time

4.5ns max

45/55%

Duty Cycle

Output Voltage Low (Vol): 10%Vs max

Output Voltage High (Voh): 90%Vs min

Output Control

Standby Operation:

Logic ‘1’ (≥70%Vs) to pad 1 enables oscillator output.

Logic ‘0’ (≤30%Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max

Environmental Parameters

Test Circuit

Storage Temperature Range: –55 to 125°C

Shock: IEC 60068-2-27: 1000g, 1ms, 3 times in each of 3

mutually perpendicular planes.

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs).

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

W(15±4μm), Ni(8~20μm), Au(0.2~1μm)

260±5°C for 5s max

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 22 Jun 21 11:38 using Part Data Sheet V1.0018
