ARS-01-BE-21-GD30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ARS-01-BE-21-GD30

Preview

ARS-01-BE-21-GD30: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

ARS-01-BE-21-GD30 Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

ARS-01-BE-21-GD30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166968983
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.094 inch
subject depth	0.335 inch
body length	2.12 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

3 amps

Phosphor bronze

Tin, gold or duplex

20 milliohms max.

PBT, UL94V-0

5,000 megohms

500VAC for 1 min.

-40°C ~ +105°C

B

C

D

E

Series

Rows

ARS

XX

Receptacle 01=Single row

strip

02=Dual row

03=Single row R/A

04=Dual row R/A

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Options

Contacts

XX

[blank]=None

Single row: 3-40

DE=Dual entry

Dual row: 6-72

BE=Bottom entry

SE=Side entry

LP=Low profile

LPA=Mid profile

Plating

XX

TN=Tin

GD=Gold

SG=Duplex

GD15=15µ” gold

GD30=30µ” gold

GD50=50µ” gold

Special Options

XX

[blank]=None

SM=Surface mount

RT=Retention tails

P=Polarized

E

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

ARS-01-XX-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

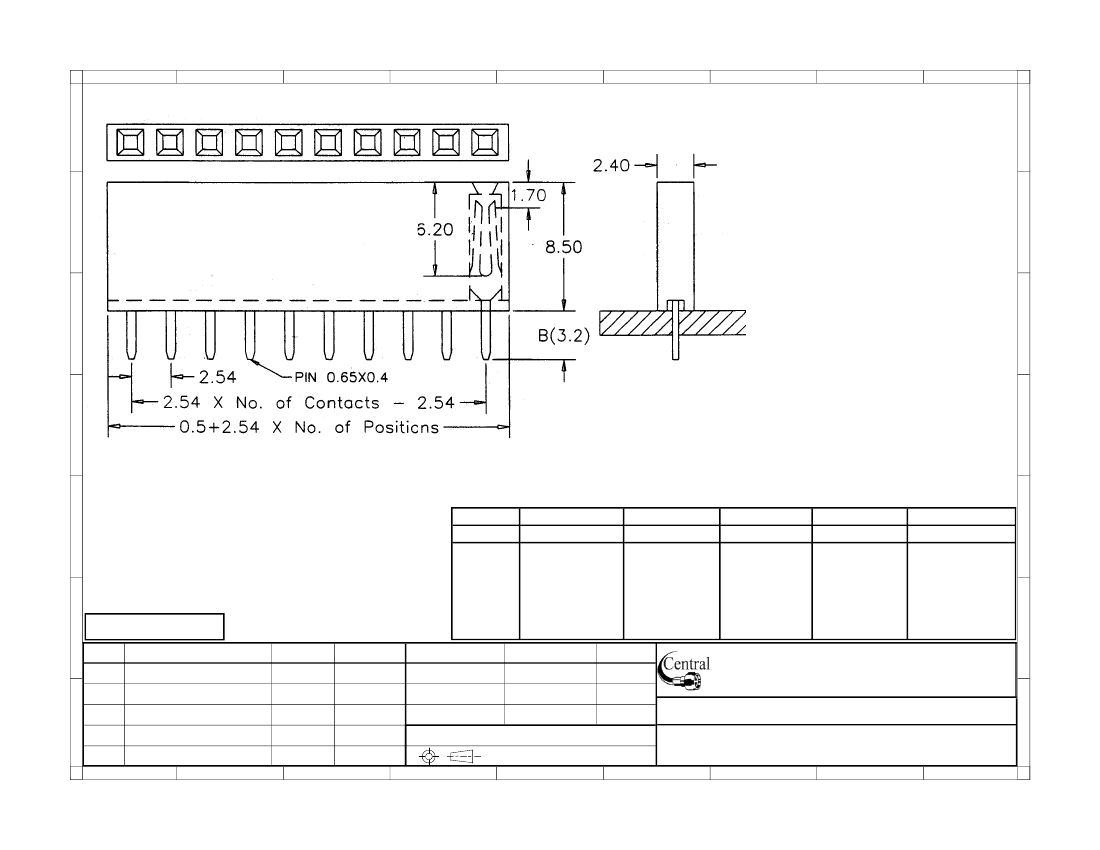

Description: Receptacle strip, 0.100” (2.54mm) pitch, female, single

row, 3 to 40 contacts, standard profile (8.5mm)

G
