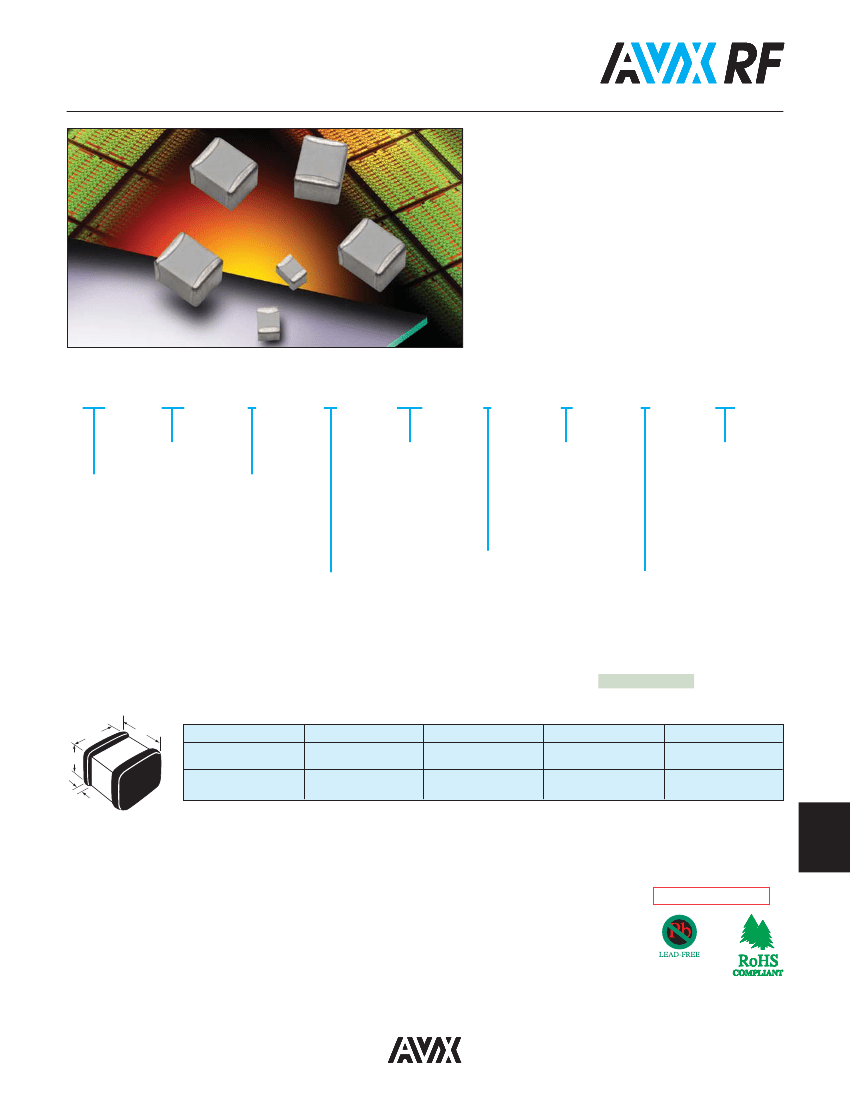

Microwave MLC’s

SQ A Case & B Case Ultra Low ESR MLC

FEATURES:

•

Low ESR

High Q

High Self Resonance

Capacitance Range 0.1 pF to 5100 pF

175ºC Capability SQCB

APPLICATIONS:

•

RF Power Amplifiers

Low Noise Amplifiers

Filter Networks

MRI Systems

HOW TO ORDER

100

Packaging Code

1A = 7" Reel Unmarked

6A = Waffle Pack Unmarked

ME = 7" Reel Marked

WE = Waffle Pack Marked

* Vertical T&R available

Case Size

CA = *

CB = *

Capacitance

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

V = 250V

9 = 300V

7 = 500V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

AVX Style

* See mechanical

dimensions

below

Temperature

Coefficient Code

M = +90±20ppm/°C

A = 0±30ppm/°C

C = 15% (“J” Termination only)

Capacitance

Tolerance Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

Termination Style Code

**1

= Pd/Ag

**7

= Ag/Ni/Au

J = Nickel Barrier Sn/Pb

(60/40)

**T

= 100% Tin

H = Cu/Sn (Non-Magnetic)

**RoHS compliant

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.110±.010

(2.79±.254)

Case

SQCA*

SQCB*

Length (L)

.055 + .015 - .010

(1.40+ .381 - .254)

.110 + .020 - .010

(2.79 +.508 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

—8mm carrier

—7" reel: SQCA/SQCB = 1000 pcs

Not RoHS Compliant

WAFFLE PACK

SQCA 100 pcs

SQCB 100 pcs

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.
