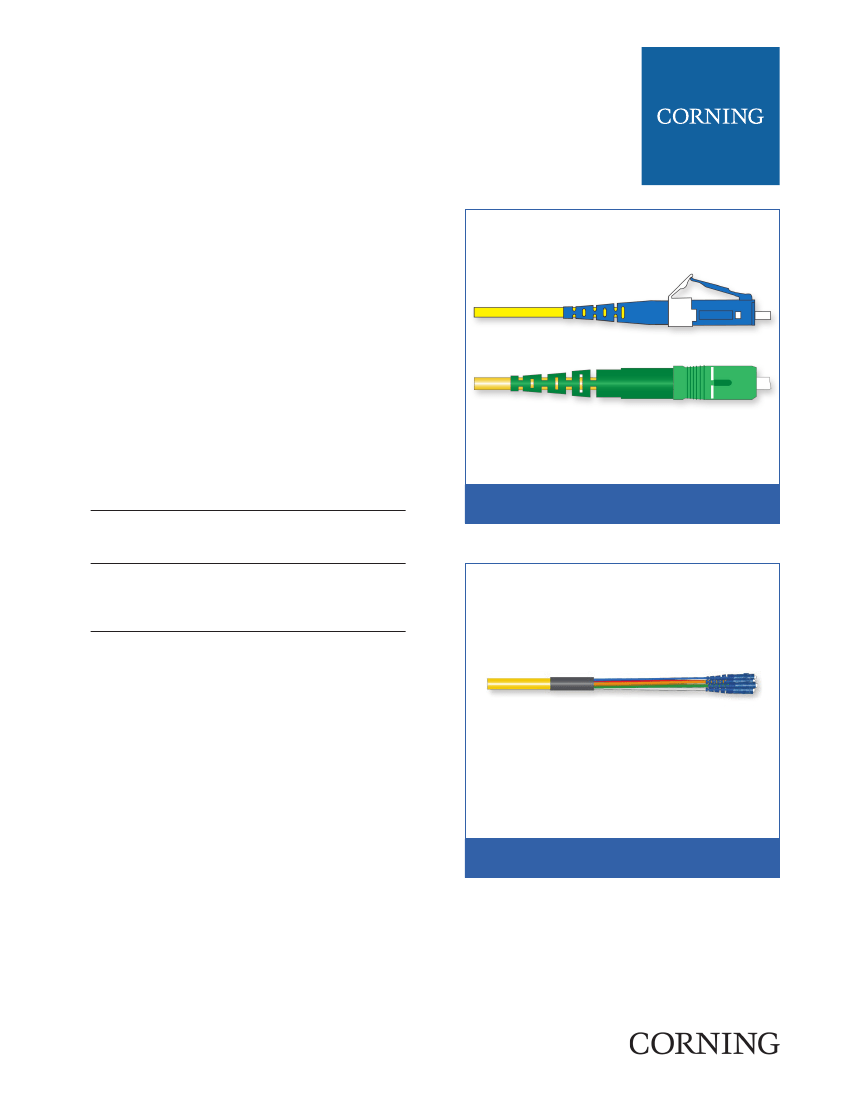

Fiber Optic Jumper, 2 F, LC to SC APC, MIC
®
Cable, Riser, 2.0 mm legs
Bend-improved Single-mode (OS2), 2 m
Two-fiber cable assemblies are offered with a variety of
connector and cable combinations. Connector options
include LC, SC, FC, ST
®
compatible, and MT-RJ. RoHS
compliant Zipcord, DFX
®
, MIC
®
, Fanout, and RIC cables
are available.
Additional detailed furcation images are available in the
Cable Assembly Family Specification Sheet.
Many of our fiber optic cable assemblies are highly
configurable. If you don’t see what you are looking
for here, please review the ordering matrix contained
in the family spec sheet, or contact Customer Care at
1
-800-743-2675.
Features and Benefits
Flame-retardant jacket
Rugged and durable
Superior Performance Testing
Every termination is tested to ensure the highest in net-
work performance
State-Of-The-Art Manufacturing Processes
Corning proprietary manufacturing processes and ad-
vanced technology result in unsurpassed product consis-
tency
Corning advantage
Integrated developer and manufacturer of cable, connec-
tors and fiber to ensure overall cable assembly perfor-
mance
Part Number: 024402G8120002M
Part Number: 024402G8120002M
Product Specification 024402G8120002M_NAFTA_AEN
Page 1 | Revision date 2014-12-08
Fiber Optic Jumper, 2 F, LC to SC APC, MIC
®
Cable, Riser, 2.0 mm legs
Bend-improved Single-mode (OS2), 2 m
Specifications
General Specifications
Application
Cable Type
Flame Rating
Cable Assembly Type
Fiber Category
Vertical Riser, General Building Applications
Tight-Buffered
Riser (OFNR)
Two Fiber
Bend-improved SM (OS2)
Design - Connector A
Connector Type
Ferrule Material
Housing Material
Housing Color
Boot Color
LC
Ceramic
Composite
Blue
Blue
Optical Specifications - Connector A
Polish
Insertion Loss, Typical
Reflectance, Typical
UPC
0.15 dB
≤ -58 dB
Design - Connector B
Connector Type
Ferrule Material
Housing Material
Housing Color
Boot Color
SC APC
Ceramic
Composite
Green
Green
Optical Specifications - Connector B
Polish
Reflectance, Typical
Insertion Loss, Typical
APC
≤ -75 dB
0.15 dB
Product Specification 024402G8120002M_NAFTA_AEN
Page 2 | Revision date 2014-12-08
Fiber Optic Jumper, 2 F, LC to SC APC, MIC
®
Cable, Riser, 2.0 mm legs
Bend-improved Single-mode (OS2), 2 m
Cable Design
Fiber Count
Outer Jacket Color
2
Yellow
Mechanical Characteristics Cable
Nominal Outer Diameter
4.7 mm (0.19 in)
Furcation - Connector A
Plug Type
Leg Diameter
Leg Length
Heat-shrink sleeve
2 mm
990.6 mm (+76.2 mm/-0 mm) (39 in (+3 in/-0 in))
Furcation - Connector B
Plug Type
Leg Diameter
Leg Length
Heat-shrink sleeve
2 mm
990.6 mm (+76.2 mm/-0 mm) (39 in (+3 in/-0 in))
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Fiber Specifications
Optical Characteristics (cabled)
Fiber Type
Fiber Core Diameter
Fiber Category
Fiber Compliance
Fiber Code
Single-Mode Ultra-Bendable Fiber
8.2 µm
OS2
ITU-T G.652.D and ITU-T G.657.A1
G
*
ITU-T G.652 D compliant.
*
Meets 0.75 ns optical skew when used in all Corning Plug and Play™/Pretium EDGE
®
systems solutions.
Notes:
1)
Improved attenuation and bandwidth options available.
2)
Bend-insensitive single-mode fibers available on request.
3)
Contact a Corning Customer Care Representative for additional information.
Product Specification 024402G8120002M_NAFTA_AEN
Page 3 | Revision date 2014-12-08
Fiber Optic Jumper, 2 F, LC to SC APC, MIC
®
Cable, Riser, 2.0 mm legs
Bend-improved Single-mode (OS2), 2 m
Fiber Specifications
Optical Characteristics (cabled)
Wavelengths
Maximum Attenuation
Serial 1 Gigabit Ethernet
Serial 10 Gigabit Ethernet
Induced Attenuation @ 10 mm Radius
1310 nm / 1383 nm / 1550 nm
0.4 dB/km / 0.4 dB/km / 0.3 dB/km
5000 m / - / -
10000 m / - / 40000 m
0.5 dB (1 turn; 10 mm radius; 1550 nm)
*
ITU-T G.652 D compliant.
*
Meets 0.75 ns optical skew when used in all Corning Plug and Play™/Pretium EDGE
®
systems solutions.
Notes:
1)
Improved attenuation and bandwidth options available.
2)
Bend-insensitive single-mode fibers available on request.
3)
Contact a Corning Customer Care Representative for additional information.
Ordering Information
Part Number
Product Description
Length
024402G8120002M
Fiber Optic Jumper, 2 F, LC to SC APC, MIC
®
Tight-Buffered
Cable, Riser, with 2.0 mm legs, Bend-improved Single-mode
(OS2), 2 m
2 m (6.6 ft)
Shipping Information
Units per Delivery
1/1
Corning Optical Communications LLC • PO Box 489 • Hickory, NC 28603-0489 USA
800-743-2675 • FAX: 828-325-5060 • International: +1-828-901-5000 • www.corning.com/opcomm
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks.
All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. ©
2014 Corning Optical Communications. All rights reserved.
