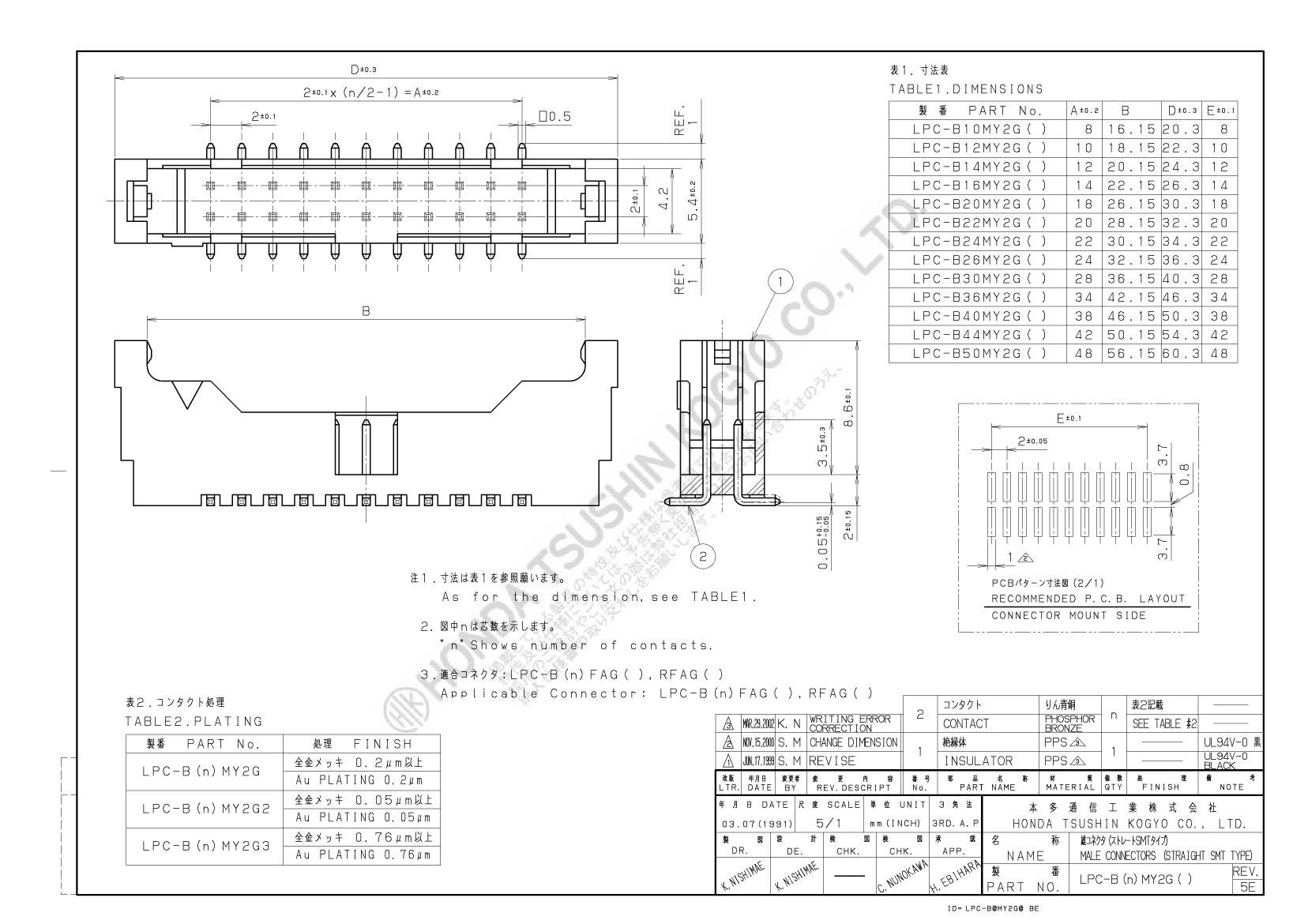

PDF
Preview

LPC-B44MY2G3

Description
Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,
CategoryThe connector    The connector
File Size99KB，1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric Compare View All

LPC-B44MY2G3 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,

LPC-B44MY2G3 Parametric

Parameter NameAttribute value
Objectid1939856984
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.213 inch
subject depth0.417 inch
body length2.138 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedGOLD (30)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.4958 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts44
UL Flammability Code94V-0

Preview

Download Datasheet

LPC-B44MY2G3 Related Products

LPC-B44MY2G3 LPC-B16MY2G3 LPC-B30MY2G3 LPC-B12MY2G3 LPC-B14MY2G3 LPC-B26MY2G3 LPC-B20MY2G3 LPC-B36MY2G3 LPC-B50MY2G3 LPC-B10MY2G3
Description Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,
Objectid 1939856984 1939856783 1939856909 1939856737 1939856760 1939856883 1939856811 1939856935 1939857013 1939856714
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE
body width 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch 0.213 inch
subject depth 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch
body length 2.138 inch 1.035 inch 1.587 inch 0.878 inch 0.957 inch 1.429 inch 1.193 inch 1.823 inch 2.374 inch 0.799 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30)
Contact completed and terminated GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30)
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ 40 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO NO NO
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
JESD-609 code e4 e4 e4 e4 e4 e4 e4 e4 e4 e4
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm 4.4958 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 44 16 30 12 14 26 20 36 50 10
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
