LPC-SPG

Description
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, White Insulator, Plug,
CategoryThe connector    The connector
File Size389KB,3 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Environmental Compliance
Download Datasheet Parametric Compare View All

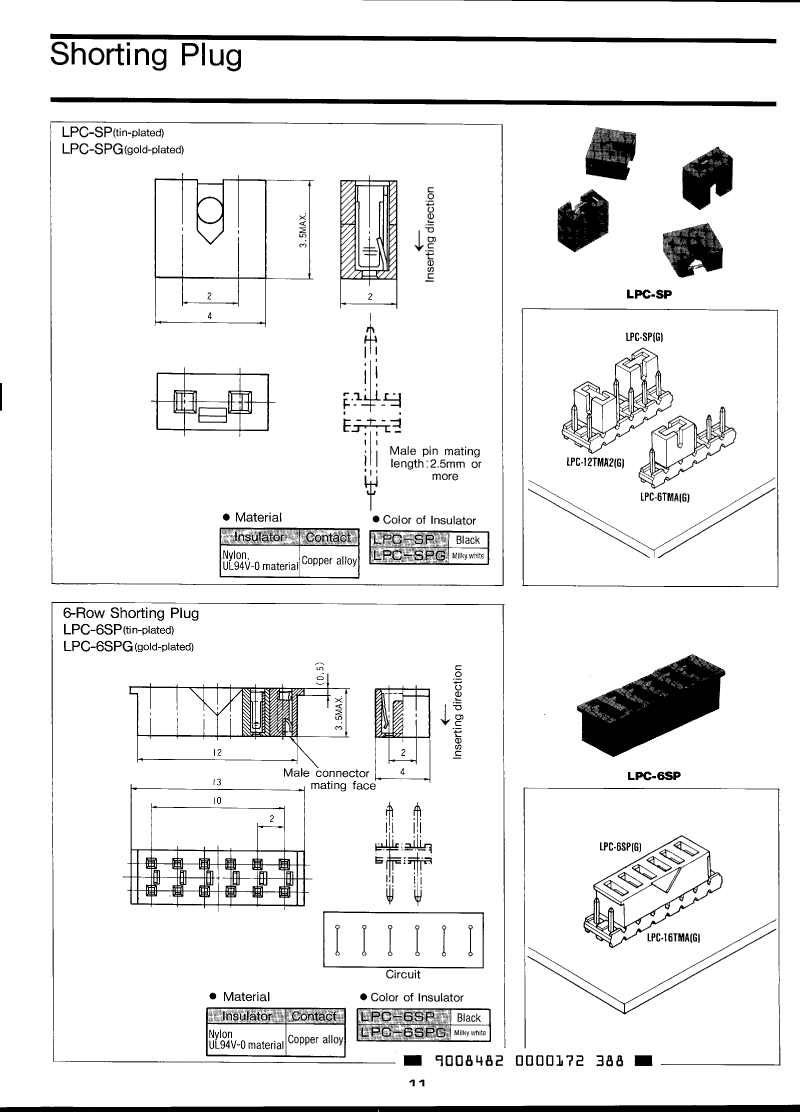

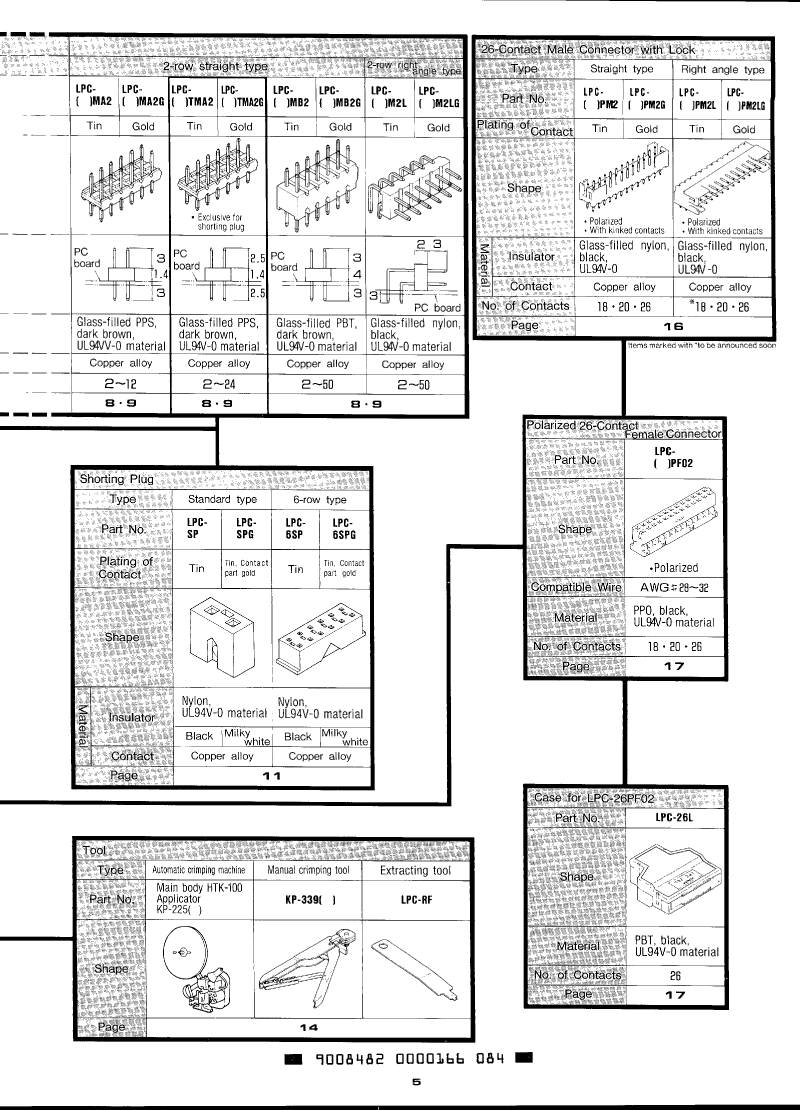

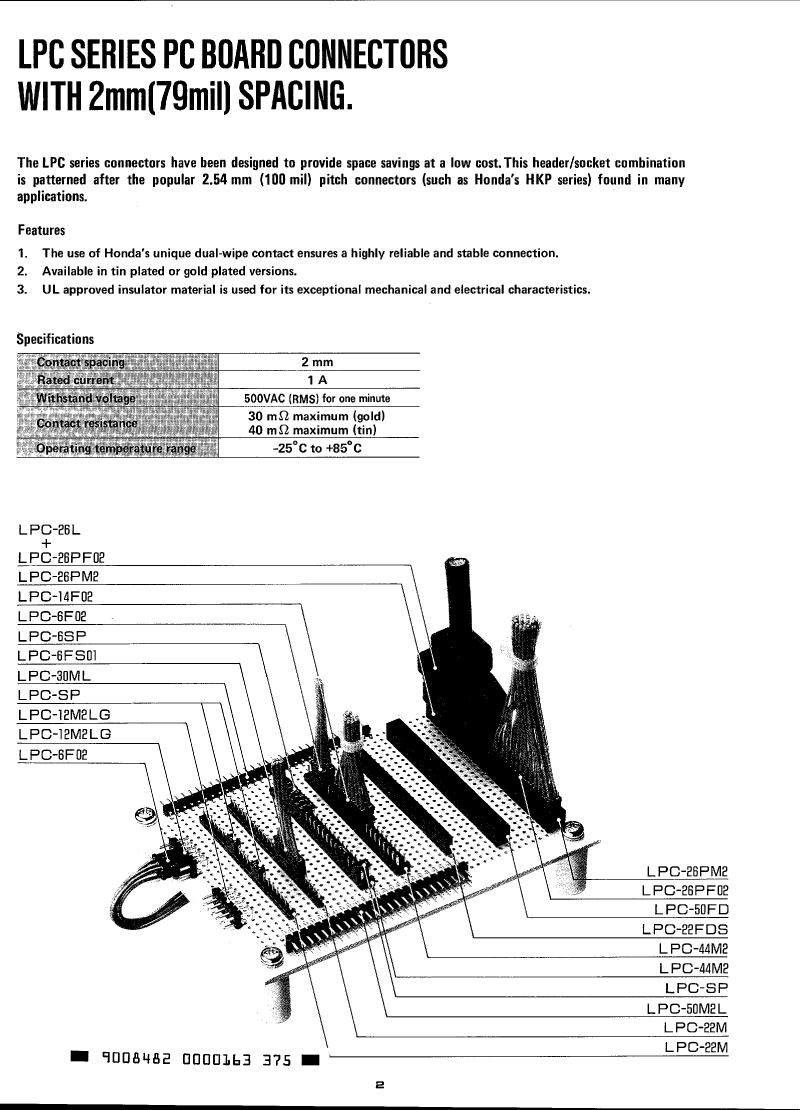

LPC-SPG Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, White Insulator, Plug,

LPC-SPG Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1479686486
Reach Compliance Codeunknown
body width0.079 inch
subject depth0.138 inch
body length0.157 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Filter functionNO
Insulator colorWHITE
insulator materialNYLON
JESD-609 codee4
Plug contact pitch0.079 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0

LPC-SPG Related Products

LPC-SPG LPC-SP
Description Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, White Insulator, Plug, Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug,
Is it Rohs certified? conform to incompatible
Objectid 1479686486 1479686492
Reach Compliance Code unknown unknown
body width 0.079 inch 0.079 inch
subject depth 0.138 inch 0.138 inch
body length 0.157 inch 0.157 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD SN
Contact completed and terminated Gold (Au) Tin (Sn)
Contact point gender MALE MALE
Contact material NOT SPECIFIED COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact resistance 30 mΩ 40 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V
Filter function NO NO
Insulator color WHITE BLACK
insulator material NYLON NYLON
JESD-609 code e4 e3
Plug contact pitch 0.079 inch 0.079 inch
Mixed contacts NO NO
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 1 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Rated current (signal) 1 A 1 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Termination type SOLDER SOLDER
Total number of contacts 2 24
UL Flammability Code 94V-0 94V-0
