5962-9468201M2A datasheet, PDF

5962-9468201M2A: DescriptionBUFFER AMPLIFIER, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size497KB，15 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

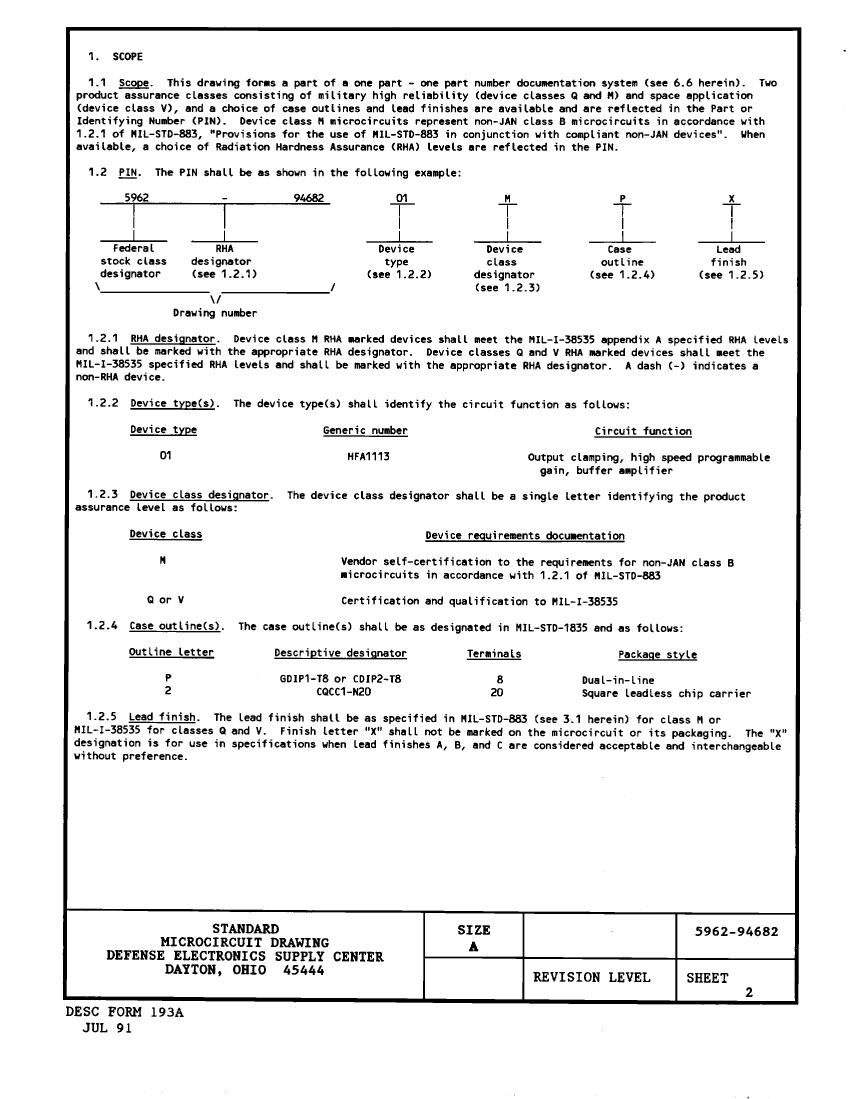

5962-9468201M2A Overview

BUFFER AMPLIFIER, CQCC20, CERAMIC, LCC-20

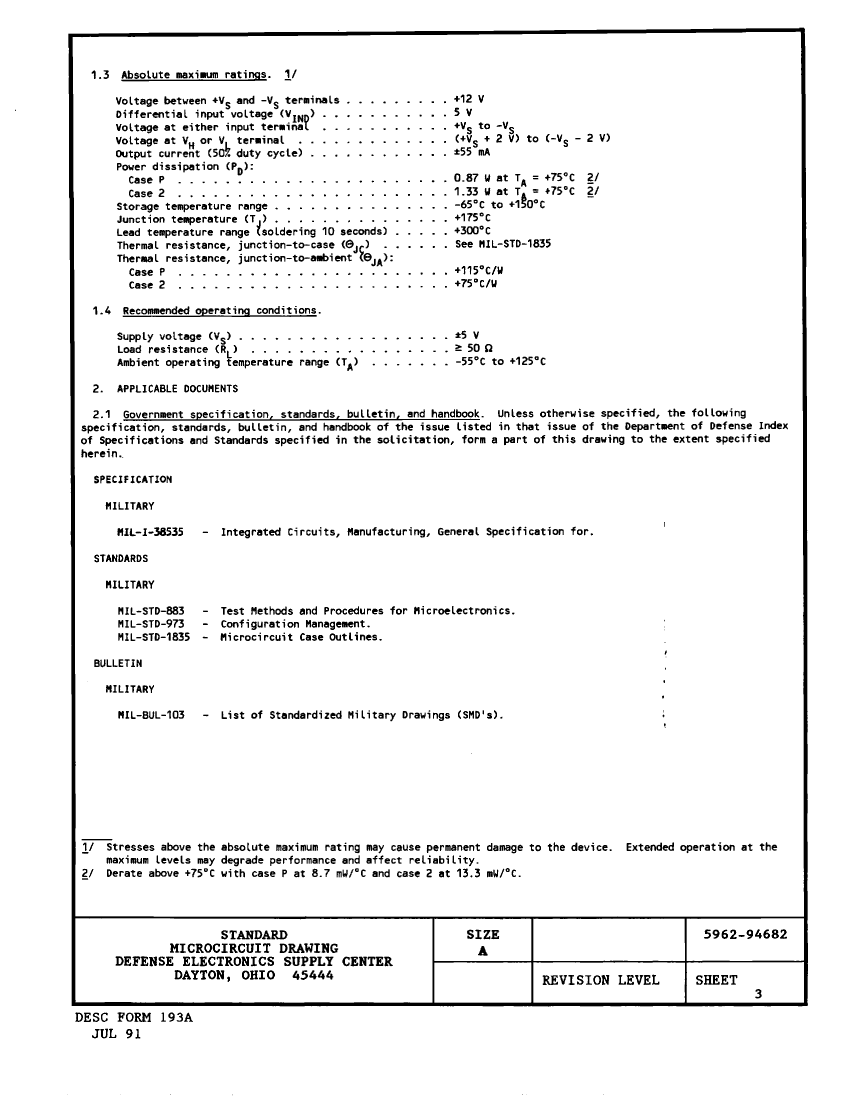

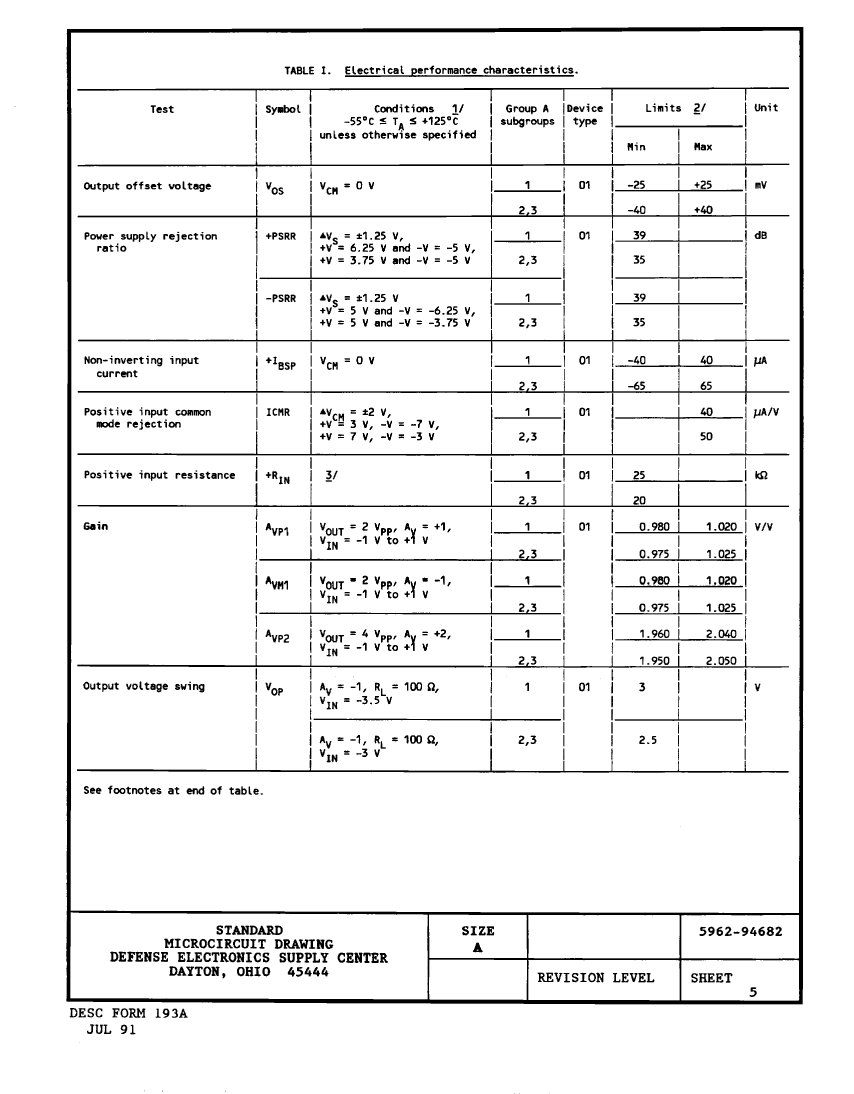

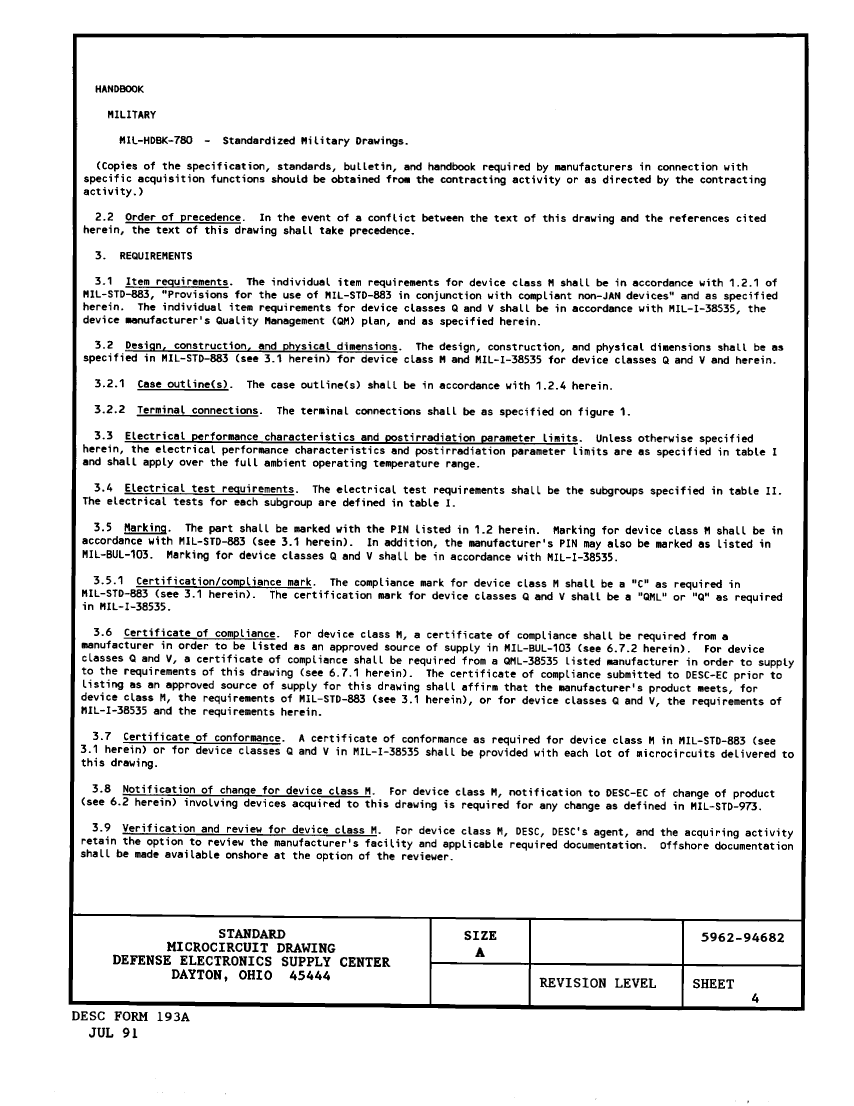

Parameter Name	Attribute value
Objectid	1511302693
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	BUFFER
Nominal bandwidth (3dB)	500 MHz
JESD-30 code	S-CQCC-N20
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output current	0.05 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

	5962-9468201M2A	5962-9468201M2X
Description	BUFFER AMPLIFIER, CQCC20, CERAMIC, LCC-20	BUFFER AMPLIFIER, CQCC20
Objectid	1511302693	2078441659
Parts packaging code	QLCC	QLCC
package instruction	QCCN,	QCCN,
Contacts	20	20
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	BUFFER	BUFFER
Nominal bandwidth (3dB)	500 MHz	500 MHz
JESD-30 code	S-CQCC-N20	S-CQCC-N20
Negative supply voltage upper limit	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Minimum output current	0.05 A	0.05 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Supply voltage upper limit	6 V	6 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD
