03028BX102YJUC7292

Description
Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, BX, -/+15ppm/Cel TC, 0.001uF, 0603,
CategoryPassive components    capacitor
File Size574KB，5 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

03028BX102YJUC7292 Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, BX, -/+15ppm/Cel TC, 0.001uF, 0603,

03028BX102YJUC7292 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid7057448741
package instruction, 0603
Reach Compliance Codenot_compliant
ECCN codeEAR99
capacitance0.001 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.91 mm
JESD-609 codee0
length1.6 mm
Manufacturer's serial number03028
multi-layerYes
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingWaffle Pack
positive tolerance5%
Rated (DC) voltage (URdc)16 V
GuidelineMIL-PRF-55681
series03028
size code0603
Temperature characteristic codeBX
Temperature Coefficient-/+15ppm/Cel ppm/°C
Terminal surfaceTin/Lead (Sn70Pb30) - with Nickel (Ni) barrier
width0.81 mm

03028BX102YJUC7292 Preview

Surface Mount Multilayer Ceramic Chip Capacitors
DSCC Approved 03028 (BR/BX Dielectrics)
Overview
KEMET is approved to DSCC (Defense Supply Center, Columbus)
drawing no. 03028 for surface mount EIA 0603 case size multi-
layer ceramic capacitors (MLCCs) in BR and BX dielectrics.
DSCC MLCC control drawings are managed by the Defense
Logistics Agency (DLA) and represent devices with case sizes,
voltage ratings, and capacitance offerings not currently refer-
enced in a valid military specification. Approved devices must
meet the stringent requirements, specifications and standards
outlined by DSCC.
DSCC drawing no. 03028 was developed in response to the
growing need and demand within the defense and aerospace
industries for EIA 0603 case size MLCCs not currently offered
in MIL-PRF-55681. KEMET’s DSCC approved capacitors meet
the requirements, specifications and standards outlined in
drawing no. 03028 as well as all referenced provisions per MIL-
PRF-55681.
Benefits
• EIA 0603 case size
• Defense Supply Center, Columbus approved
• Federal Stock Control Number, Cage Code 31433
• Meets US Department of Defense (USDoD) specifications
per MIL-PRF-55681
• Meets USDoD standards per MIL-STD-202 & MIL-STD-1285
• High reliability
• Surface mount device
• Non-polar
Applications
Typical applications include decoupling, bypass, filtering, blocking
and energy storage for use in military and aerospace applications.
Outline Drawing
70Sn/30Pb
B
Nickel Plate
N
Conductive Metallization
C
Electrodes
Dimensions - Millimeters (Inches)
EIA SIZE
CODE
0603
METRIC
SIZE CODE
1608
L
LENGTH^
W
WIDTH^
B
BANDWIDTH
T
THICKNESS
Maximum
0.91 (.036)
1.60 (.063) ± 0.15 (.006) 0.81 (.032) ± 0.15 (.006) 0.36 (.014) ± 0.15 (.006)
^For symbol “U” termination add 0.020 inch (0.51mm) to the positive length tolerance and 0.015 inches (0.38mm) to the positive width and thickness tolerances.
Ordering Information
DSCC Drawing
Number
03028 (0603 case size)
03028
BX
Dielectric
BR
BX
Capacitance
Code (pF)
2 Sig. Digits +
Number of
Zeros
104
Y
Voltage
W = 6.3V
X = 10V
Y = 16V
Z = 25V
A = 50V
B = 100V
C = 200V
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
J
End
Metallization^
U = SnPb (4% min)
Z = SnPb (4% min)
Z
Blank = No group C testing
C = Full group C
L = 2,000 hour life test only
M = 1,000 hour life test only
H = Low voltage humidity only
Group C
Testing Option
C
Blank = Bulk Bag
Packaging/Grade
(C-Spec)*
7189
7246 = Anti-Static Bulk Bag
7292 = Waffle Pack
7189 = 7” Reel Marked
^ “U” = Base metallization-barrier metal-solder coated (tin/lead alloy, with a min of 4% lead). Melting point is +200ºC or less. Metallization thickness is ≥ 60µ-inches.
^ “Z” = Base metallization-barrier metal-tinned (tin/lead alloy, with a min of 4% lead).
* Additional reeling or packaging options may be available. Contact KEMET for details.
Additional termination options may be available. Contact KEMET for details.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4004_L 4/15
DSCC Approved 03028 (BR/BX Dielectrics)
Electrical Parameters/Characteristics: BR Dielectric
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 Vdc Applied:
Capacitance Change with Reference to +25°C and 100% Rated Vdc Applied:
Aging Rate (Max % Cap Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF%) Maximum Limits @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
Insulation Resistance (IR) Limit @ 125°C
-55°C to +125°C
±15%
+15%, -40%
1%
250%
5% (10V), 3.5% (16V & 25V) and 2.5% (50V to 200V)
1000 megohm microfarads (minimum) or 100GΩ
100 megohm microfarads (minimum) or 10GΩ
To obtain the IR limit, divide M
Ω-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
1kHz ± 50Hz and 1.0 ± 0.2 Vrms
Electrical Parameters/Characteristics: BX Dielectric
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 Vdc Applied:
Capacitance Change with Reference to +25°C and 100% Rated Vdc Applied:
Aging Rate (Max % Cap Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF%) Maximum Limits @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
Insulation Resistance (IR) Limit @ 125°C
-55°C to +125°C
±15%
+15%, -25%
1%
250%
5% (10V), 3.5% (16V & 25V) and 2.5% (50V to 200V)
1000 megohm microfarads (minimum) or 100GΩ
100 megohm microfarads (minimum) or 10GΩ
To obtain the IR limit, divide M
Ω-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
1kHz ± 50Hz and 1.0 ± 0.2 Vrms
Qualification/Certification
Qualification Inspection per MIL-PRF-55681
Inspection
4.8.3
4.8.9
4.8.6
4.8.4
4.8.5
4.8.6
4.8.9
4.8.2
4.8.10
4.8.11
4.8.12
4.8.13
4.8.14
4.8.16
4.8.15
Group I
Voltage conditioning
DWV
IR (elevated temperature)
Capacitance
Dissipation factor
IR
DWV
Visual and mechanical examination
Group II
Solderability
Group III
Voltage-temperature limits
Thermal shock and immersion
Group IV
Resistance to soldering heat
Moisture resistance
Group V
Life (at elevated ambient temperature)
Group VIII
Humidity, steady state, low voltage
Test method paragraph
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4005_L 4/15
DSCC Approved 03028 (BR/BX Dielectrics)

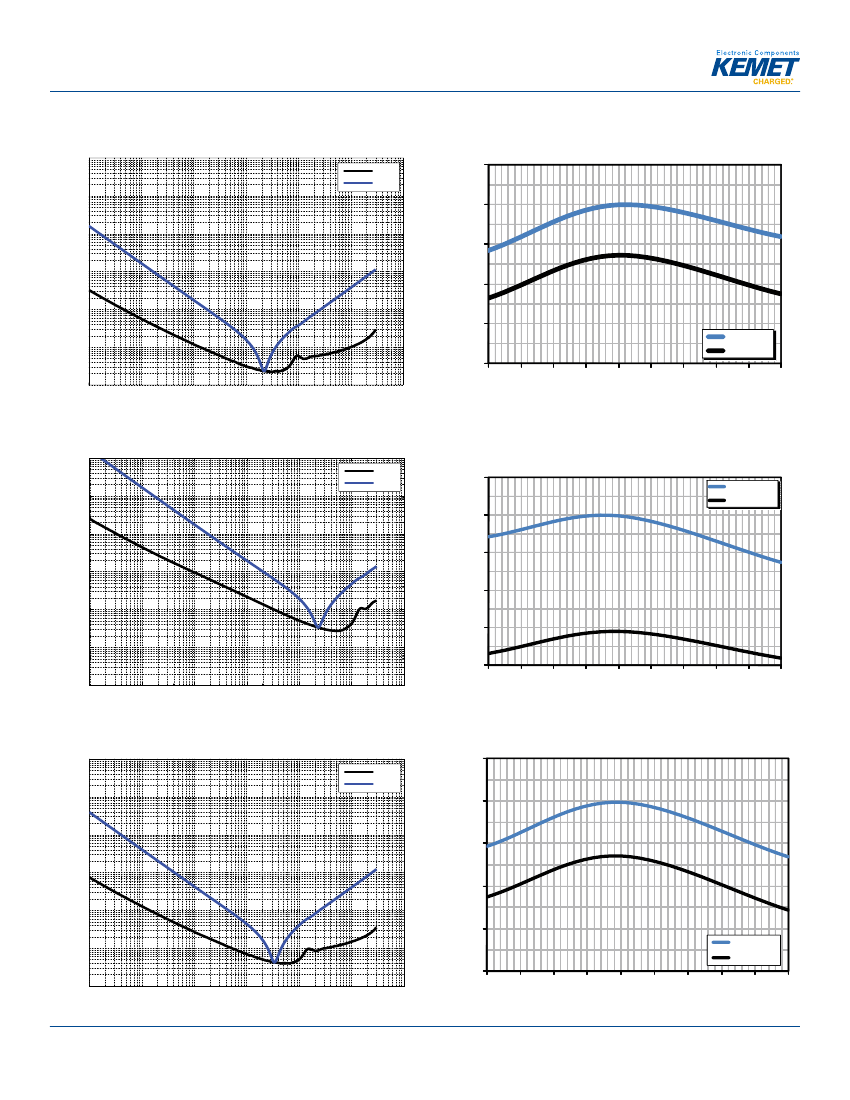

Electrical Characteristics
4
10
Z & ESR - 0603, 0.1µF, 16V, BX
ESR
Z
TCVC - 0603, 0.1µF, 16V, BX
10
0
-10
-20
-30
-40
3
10
Magnitude Ohms
2
10
1
10
0
10
∆C/C
(%)
-1
10
0 VDC
16 VDC
-2
10
4
10
5
10
6
10
Freq (Hz)
7
10
8
10
9
10
10
10
-55
-35
-15
5
25
45
65
85
105
125
Temperature (°C)
4
10
Z & ESR - 0603, 1000pF, 200V, BR
ESR
Z
TCVC - 0603, 1000pF, 200V, BR
10
0
0 VDC
200 VDC
3
10
Magnitude Ohms
2
10
1
10
∆C/C
(%)
-10
-20
-30
0
10
-1
10
-40
-2
10
4
10
5
10
6
10
Freq (Hz)
7
10
8
10
9
10
10
10
-55
-35
-15
5
25
45
65
85
105
125
Temperature (°C)
4
10
Z & ESR - 0603, 0.047µF, 25V, BR
ESR
Z
10
TCVC - 0603, 0.047µF, 25V, BR
3
10
0
Magnitude Ohms
2
10
1
10
∆C/C
(%)
-10
-20
0
10
-30
-1
10
0 VDC
-40
-2
10
4
10
5
10
6
10
25 VDC
Freq (Hz)
7
10
8
10
9
10
10
10
-55
-35
-15
5
25
45
65
85
105
125
Temperature (°C)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4005_L 4/15
DSCC Approved 03028 (BR/BX Dielectrics)
DSCC DRAWING NO. 03028
DIELECTRIC
Capacitance
pF
Cap
Code
6.3V
10V
16V
Voltage
Voltage Code
Cap Tolerance
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
15,000
18,000
22,000
27,000
33,000
39,000
47,000
56,000
68,000
82,000
100,000
120,000
150,000
180,000
220,000
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
BR
100V
200V
6.3V
25V
50V
10V
16V
BX
100V
200V
25V
50V
W
X
Y
Z
A
B
C
W
X
Y
Z
A
B
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
EIA 0603 CASE SIZE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4005_L 4/15
DSCC Approved 03028 (BR/BX Dielectrics)
Packaging Quantities
PACKAGING TYPE
Packaging C-Spec
1
Quantity
1
LOOSE PACKAGING
BULK BAG (Default)
N/A
2
1 Minimum
ANTI-STATIC BULK BAG
7246
1 Minimum
SECURE PACKAGING
WAFFLE PACK
7292
100 Maximum / Tray
TAPE AND REEL
7189
4,000 Maximum / Reel
A “Packaging C-Spec” is a 4-digit numeric code which identifies the packaging type. When ordering, the proper code must be included in the 15th through 18th
character positions of the ordering code. See “Ordering Information” section of this document for further details. Product ordered without a “Packaging C-Spec” will
default to our standard “Bulk Bag” packaging.
2
A “Packaging C-spec” (see note
1
above) is not required for “Bulk Bag” packaging (excluding Anti-Static Bulk Bag). The 15th through 18th character positions of
the ordering code should be left blank. All product ordered without a “Packaging C-Spec” will default to our standard “Bulk Bag” packaging.
Soldering Process
Marking
All parts incorporate the standard KEMET barrier layer of pure nickel with a tin-lead (SnPb) finish. Both “U” and “Z” termination finishes
contain a minimum of 4% lead.
Marking is not available for DSCC approved EIA 0603 case size capacitors. These chips will be supplied unmarked.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4005_L 4/15
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Frequency sensitive rheostat automatic forward and reverse starting circuit

LED dimmer circuit

Simple FM walkie-talkie circuit

Fast charger circuit diagram

Midea YLRT3 hot and cold water dispenser circuit diagram

Thermistor temperature control cold bird chirping sound circuit

Wireless transceiver
Recently, I made a remote-controlled LED lamp. People are very interested in the wireless remote control. I will explain it in detail today. LED desk lamp link: https://bbs.eeworld.com.cn/thread-31111...
wllyj Microcontroller MCU
Bluetooth Low Energy Wireless Sensors
Today, technology is developing rapidly, and various devices are making the world smarter. The continuous emergence of new technologies not only improves existing technologies, but also creates new ma...
silicontra2018 RF/Wirelessly
About the header file of 2812
This is my first time using dsp. The source material I downloaded from hellodsp has standard header files. But I found that there are also header files in the cgtools folder in the ccs folder. Do I ne...
bagebike DSP and ARM Processors
Let me show you how to calculate a current transformer!
We will design a current transformer. Using a current transformer can reduce the loss when measuring the primary current of the converter. For example, in a high-power switching power supply, the curr...
灞波儿奔 Analogue and Mixed Signal
UHF Duplexer
UHF Duplexer The motivation here is to save money on installing cables in the home.When built, my house had a coaxial cable installed from the attic to the lounge, carefully hidden in the cavity wall....
btty038 RF/Wirelessly
Can IE controls on WinCE respond to click events?
Dear seniors: I would like to ask, I have implemented the full screen display of IE based on IWebBrowser2 control on WinCE5.0, that is, I put the IWebBrowser2 control in the Dialog container. Now I wa...
sg256 Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. NTE2V275
  2. LB780Z
  3. LJT06RT1335SDW52
  4. RM222-040-632-9159
  5. MIC5319-33YML-TR
  6. JTL07RP-16-42P(101)
  7. 54242-804-28-2600
  8. Y402259R0000B0R
  9. AME8500BEEVDE28
  10. 1.5KE13A_AY_00001
  11. BZX84C14T/R13
  12. A3963WV-5P-N4-RD

Popular Articles

  1. S3c2440ARM exception and interrupt system detailed explanation 2---CPU mode (Mode) state (State)
  2. 49-PM2.5 and temperature and humidity detection alarm based on 51 single chip microcomputer
  3. Genesis' new SUV adds new technology! "Face recognition" function is more convenient
  4. VC MIPI modules and accessories are now available from Mouser Electronics
  5. Global smartphone CIS market revenue totaled US$7 billion in the first half of 2021
  6. LANXESS develops new automotive radar sensor concept with integrated thermal management
  7. Freescale PWM module
  8. What is the bandwidth of an oscilloscope?
  9. What are the advantages of hybrid cars over fuel cars?
  10. Introduction to Logic Analyzer

Technical ResourceMore

  1. Radio Diagram Recognition and Circuit Fault Analysis PDF eBook
  2. Automatic Control Principles Tutorial Courseware (Word Version)
  3. Analysis of the world\'s three major RFID standard systems
  4. Research on system frequency measurement method and simulation of frequency measurement algorithm based on DFT
  5. BSC Operation and Maintenance Training Course (Ericsson)
  6. Piezoelectric ceramic driving method in optical fiber sensor demodulation
  7. Sensor simulation data
  8. SmartARM3130 general teaching/competition/industrial control development platform
  9. Magnetic Field Immunity of Digital Capacitive Isolators
  10. Image Communication Engineering (Revised Edition)

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 385  34  2167  965  57  8  1  44  20  2
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
