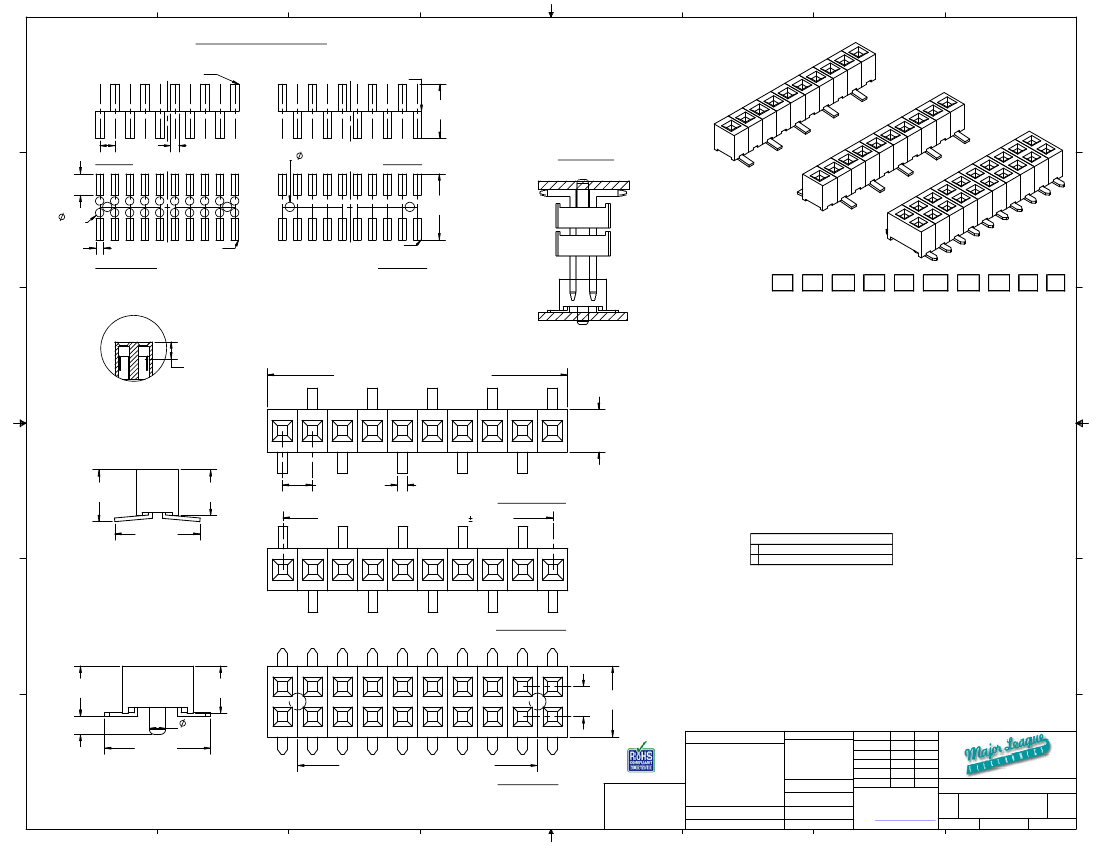

Recommended P.C. Board Layout
SCALE 6:1
Pin 1
F
Pin 1
.181
[4.60]
F
.050[1.27]
.028[0.70]
.031
[0.79]
Single (S)
.071
[1.80]
.028
[0.71]
.026[0.65]
Pin 1
Single (M)
APPLICATION
E
.220
[5.60]
E
Pin 1
04 Bottom Entry
06 Top Entry
LSSHS-5 XX - D - XX - X - X - XXX - XX - X - XX - LF
(A) (B) (C ) (D) (E)
(F) (G) (H) (I) (J)
A. Pins Per Row
- 1 through 40
B. Row Specification
- D= Double Row
C. Surface Mount
- 04 Bottom Entry
- 06 Top Entry
D. Plating Options
- See Plating Options below
E. Footprint Orientation (Single Row)
- S= Pin 1 right
- M= Pin 1 left
F. Polarized Position
- Leave blank if not needed
- If required, specify empty pin position
- e.g. 012 for Pin 12
G. Packing Information
-TR= Tape and Reel
-TB= Tube
H. Cap Option
- P= Pick and Place Cap
- O= No Cap
I. Alignment Pin Option
- Leave blank if not needed
- Ap= With
J. Lead Free
Plating options
G -10µ Gold on Contact Area/ Flash on Tail
F -Gold Flash over Entire Pin
D
Point of
Contact
.024[0.60]
D
.050[1.27]X No. of Positions + .012[0.30]
.071
[1.80]
01
40
C
.087
[2.20]
.077
[1.95]
.050[1.27]
.016[0.40] X .006[0.15]
C
SINGLE ROW (S)
.050[1.27]X No. of Spaces - .050[1.27] .010[0.25]
.142[3.60]
01
40
B
SINGLE ROW (M)
Specifications:
Current Rating: 1.0 Ampere
Insulation Resistance: 1000M Ohms Min.
Dielectric Withstanding: 300V AC
Contact Resistance: 20M Ohms Max.
Operation Temperature: -40°C to +105°C
Max. Process Temperature
Peak: 260°C up to 20 secs.
Process: 230°C up to 60 secs.
Wave: 260°C up to 6 secs.
Manual Solder: 350°C up to 5 secs.
Materials:
Contact Material: Phosphor Bronze
Insulator Material: Nylon 6T
Plating: Au over Ni
Tails may be clipped to acheive specific dimensions.
Products cut to specific sizes are uncancellable/ nonreturnable.
Parts are subject to change without notice.
B
80
.084
[2.15]
.079
[2.00]
02
.050
.118
[1.27] [3.00]
.035[0.90]
.177[4.49]
A
.027
[0.71]
79
01
UNLESS OTHERWISE SPECIFIED:
NAME
DRAWN
CHECKED
ENG APPR.
MFG APPR.
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DATE
.050[1.27]X No. of Positions - .100[2.54]
DOUBLE ROW
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Major League Electronics. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
Major League Electronics IS
PROHIBITED.
DIMENSIONS ARE IN
INCHES
TOLERENCES:
ONE DECIMALS ±.100
TWO DECIMAL ±.100
THREE DECIMAL ±.005
FOUR DECIMAL ±.002
NEXT ASSY
APPLICATION
USED ON
EOW
GWE
01/21/15
01/21/15
A
Q.A.
ADDRESS:
4 2 3 5 E a rn in g s W a y
N e w A l b a n y , IN 4 7 1 5 0
P h o n e : 8 1 2 -9 4 4 -7 2 4 4 F a x : 8 1 2 -
94 4 -7 26 8
e -M a il :
m l e @ m l e l e c t r o n ic s .c o m
TITLE:
LSSHS-5 SERIES
SIZE DWG. NO.
REV
C
SCALE 12:1
1
D
SHEET 1 OF 1
DO NOT SCALE DRAWING
8
7
6
5
4
3
2
