5280-0-43-01-16-02-10-0 datasheet, PDF

Datasheet> All Categories > The connector> 5280-0-43-01-16-02-10-0

5280-0-43-01-16-02-10-0: DescriptionPCB Terminal; CategoryThe connector; File Size787KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

5280-0-43-01-16-02-10-0 Overview

PCB Terminal

5280-0-43-01-16-02-10-0 Parametric

Parameter Name	Attribute value
Objectid	7021549016
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5280
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

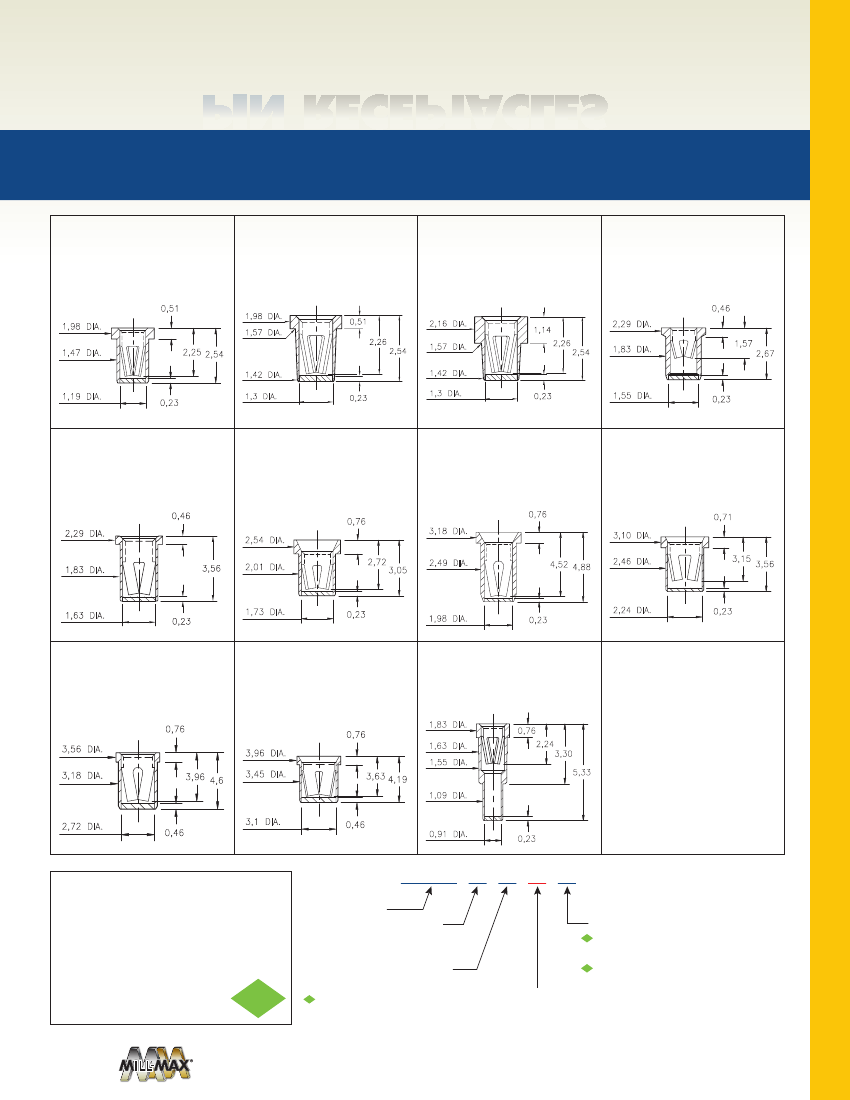

RECEPTACLES

PIN RECEPTACLES

WITH ORGANIC FIBRE PLUG

SOLDER BARRIER

(SEE SPECIFIC CONTACT RANGE ON PAGES 254 - 262)

0337

0337-0-XX-XX-15-XX-10-0

0,51

1,98 DIA.

1,47 DIA.

Solder mount in Ø 1,68 ± 0,08 PTH

#15

Contact for Ø 0,51 - 0,81 pins

Also available on 8mm wide carrier tape:

6,000 parts per 330mm reel

4280

4280-0-XX-XX-16-XX-10-0

Solder mount in Ø 1,7 ± 0,08 PTH

#16

Contact for Ø 0,56 - 0,86 pins

Also available on 8mm wide carrier tape:

6,000 parts per 330mm reel

1,98 DIA.

1,57 DIA.

2,26

5280

5280-0-XX-XX-16-XX-40-0

Solder mount in Ø 1,7 ± 0,08 PTH

#16

Contact for Ø 0,56 - 0,86 pins

Also available on 16mm wide carrier tape:

2,200 parts per 330mm reel

0332

0332-0-XX-XX-18-XX-10-0

0,46

Solder mount in Ø 2,01 ± 0,08 PTH

#18

Contact for Ø 0,94 - 1,09 pins

Also available on 16mm wide carrier tape:

2,200 parts per 330mm reel

0,51

2,16 DIA.

2,54

1,14

2,26

2,54

2,29 DIA.

1,83 DIA.

1,57

2,67

2,25 2,54

1,42 DIA.

1,57 DIA.

1,42 DIA.

1,19 DIA.

0,23

1,3 DIA.

0,23

1,3 DIA.

0,23

1,55 DIA.

0,23

0479

0479-0-XX-XX-34-XX-10-0

0,46

2,29 DIA.

Solder mount in Ø 1,96 ± 0,08 PTH

#34

Contact for Ø 0,81 - 1,17 pins

Also available on 16mm wide carrier tape:

2,200 parts per 330mm reel

0375

0375-0-XX-XX-02-XX-10-0

0,76

2,54 DIA.

Solder mount in Ø 2,21 ± 0,08 PTH

#02

Contact for Ø 1,02 - 1,27 pins

Also available on 12mm wide carrier tape:

4,500 parts per 330mm reel

0353

0353-0-XX-XX-03-XX-10-0

0,76

3,18 DIA.

Solder mount in Ø 2,69 ± 0,08 PTH

#03

Contact for Ø 1,02 - 1,52 pins

Also available on 12mm wide carrier tape:

1,300 parts per 330mm reel

0384

0384-0-XX-XX-23-XX-10-0

0,71

3,10 DIA.

Solder mount in Ø 2,67 ± 0,08 PTH

#23

Contact for Ø 1,14 - 1,65 pins

Also available on 12mm wide carrier tape:

2,000 parts per 330mm reel

1,83 DIA.

3,56

2,01 DIA.

2,72

3,05

2,49 DIA.

4,52 4,88

2,46 DIA.

3,15

3,56

1,63 DIA.

0,23

1,73 DIA.

0,23

1,98 DIA.

0,23

2,24 DIA.

0,23

0376

0376-0-XX-XX-07-XX-10-0

0,76

3,56 DIA.

3,18 DIA.

Solder mount in Ø 3,38 ± 0,08 PTH

#07

Contact for Ø 1,65 - 2,08 pins

Also available on 16mm wide carrier tape:

1,500 parts per 330mm reel

0321

0321-0-XX-XX-08-XX-10-0

0,76

3,96 DIA.

3435

1,83 DIA.

1,63 DIA.

1,55 DIA.

Solder mount in Ø 3,66 ± 0,08 PTH

#08

Contact for Ø 2,13 - 2,59 pins

Also available on 16mm wide carrier tape:

1,700 parts per 330mm reel

3435-0-XX-XX-47-XX-04-0

Solder mount in Ø 1,17 ± 0,08 PTH

#47

Contact for Ø 0,64 - 0,91 and

0,64 square pins

0,76

2,24

3,30

5,33

1,09 DIA.

3,96 4,6

3,45 DIA.

3,63 4,19

2,72 DIA.

3,1 DIA.

0,46

0,91 DIA.

0,23

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Solder Barrier:

Organic Fibre Plug

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,051

Angles:

±2°

RoHS - 2

ORDER CODE: XXXX - 0 - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY CONTACT FINISH:

SPECIFY PACKAGING:

0,76μm GOLD OVER NICKEL (RoHS)

Discrete Receptacles

2,54μm TIN/LEAD OVER NICKEL

Supplied on 330mm Reels

5,08μm TIN OVER NICKEL (RoHS)

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL

5,08μm TIN OVER NICKEL (RoHS)

CONTACT:

#02, #07, #08, #15, #16, #18, #23, #34 or #47

CONTACT (DATA ON PAGES 254 - 262)

2011/65/EU

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 197 | PIN RECEPTACLES
