BR6264F-12L: DescriptionStandard SRAM, 8KX8, 120ns, CMOS, PDSO28, SOP-28; Categorystorage storage; File Size524KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BR6264F-12L Overview

Standard SRAM, 8KX8, 120ns, CMOS, PDSO28, SOP-28

BR6264F-12L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1167348981
package instruction	SOP, SOP28,.5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.8816 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.6416 mm
Maximum standby current	0.00005 A
Minimum standby current	2 V
Maximum slew rate	0.085 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.4074 mm

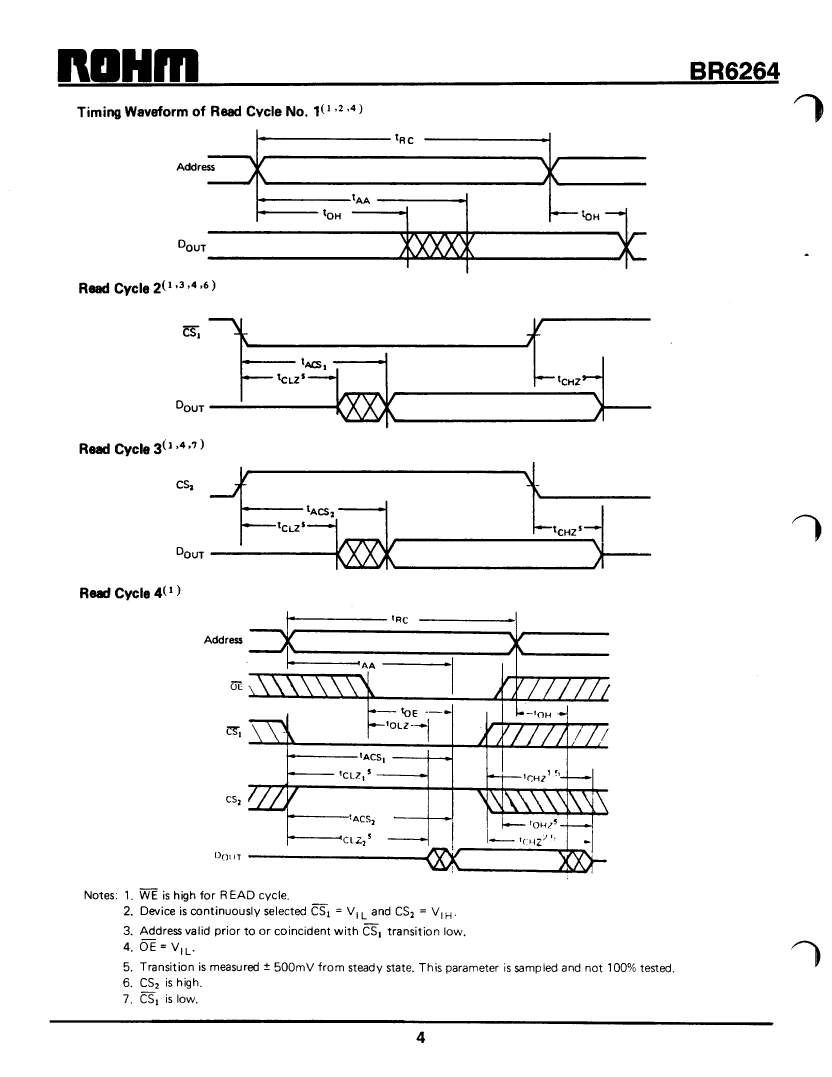

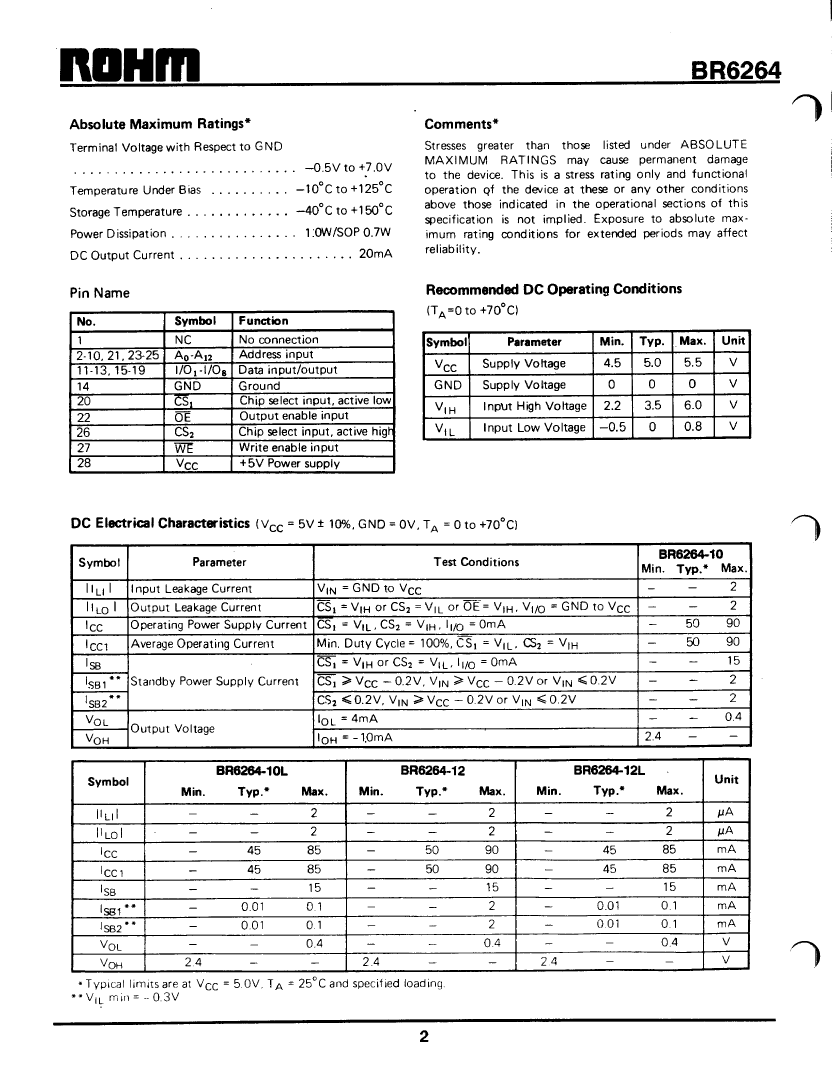

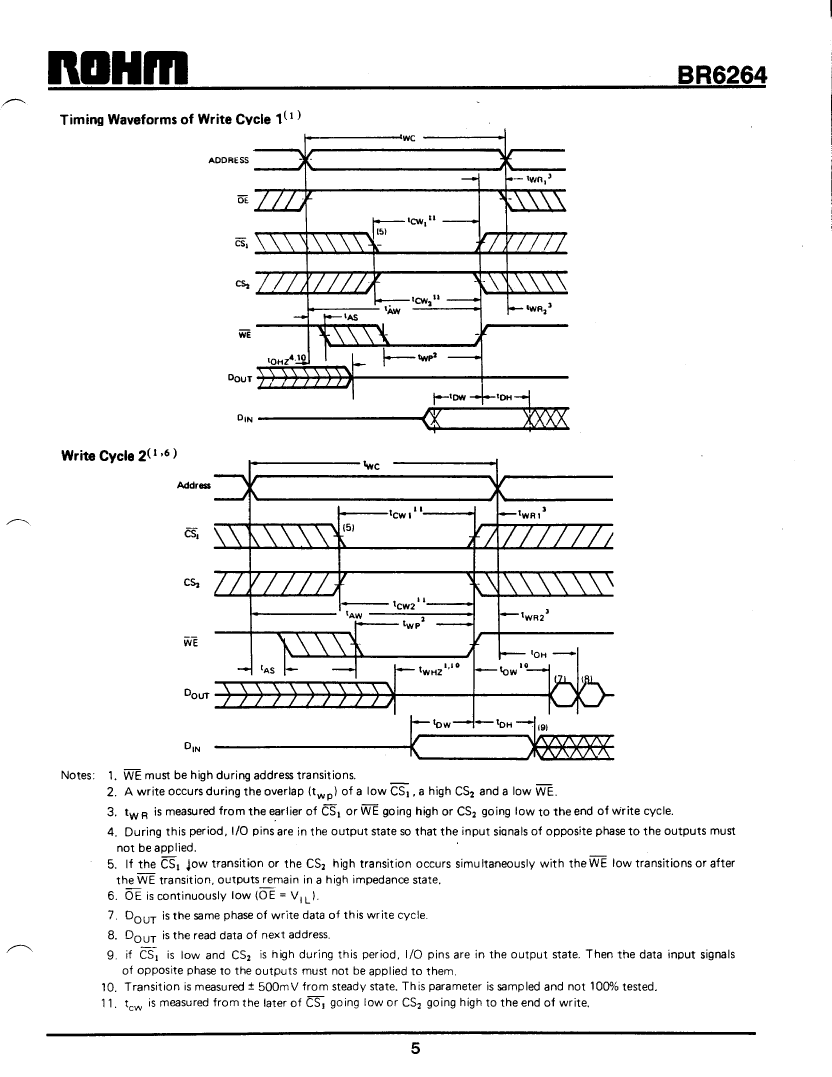

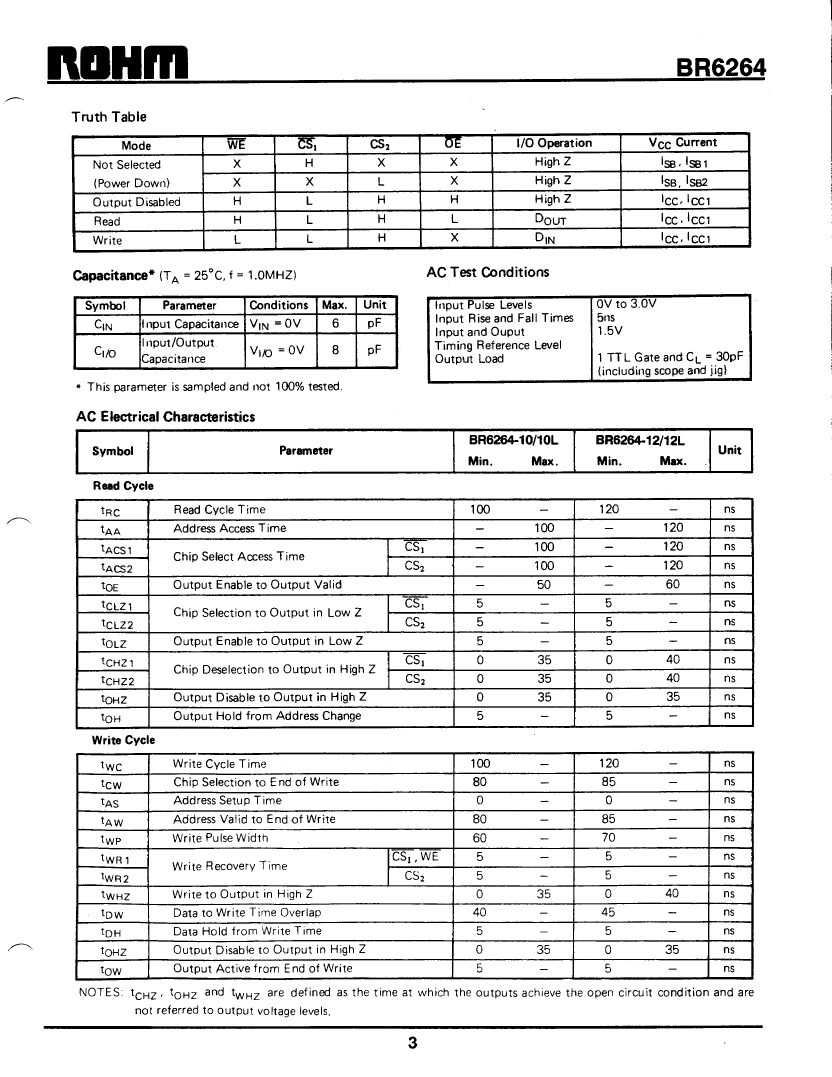

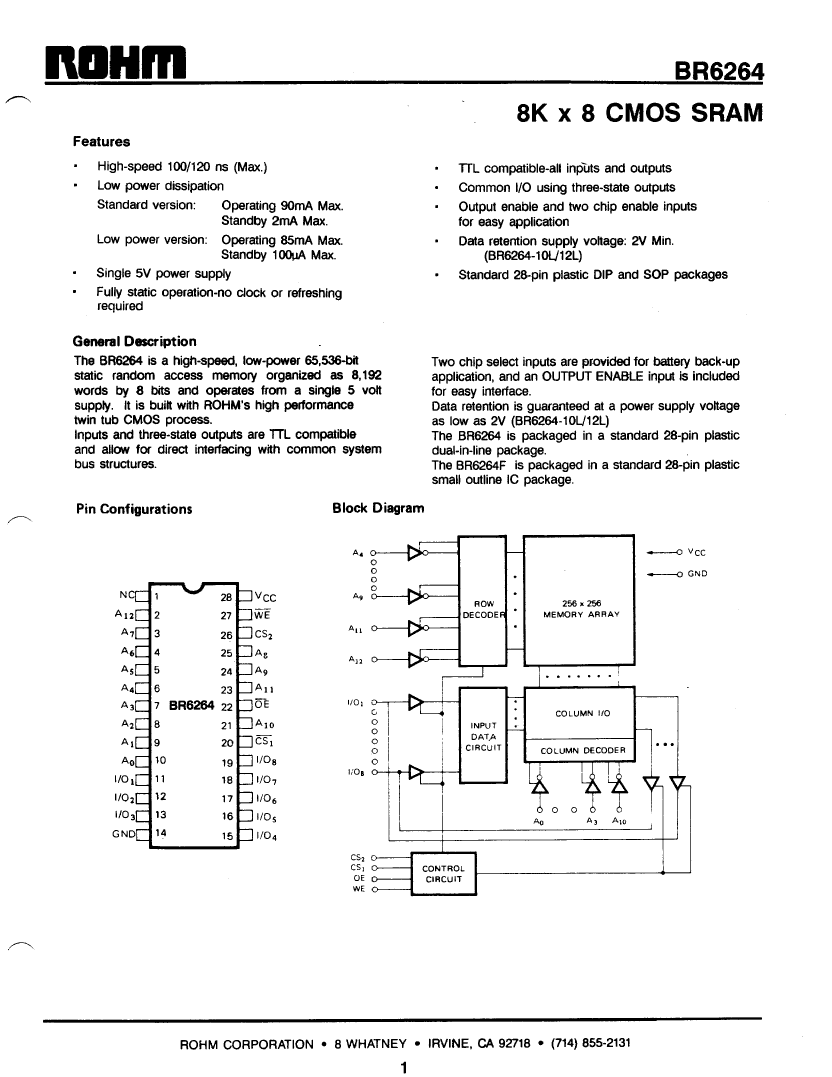

BR6264F-12L Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BR6264F-12L Related Products

	BR6264F-12L	BR6264-10	BR6264-10L	BR6264-12	BR6264-12L	BR6264F-10L
Description	Standard SRAM, 8KX8, 120ns, CMOS, PDSO28, SOP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 120ns, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 120ns, CMOS, PDIP28, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDSO28, SOP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP28,.5	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	SOP, SOP28,.5
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown
Maximum access time	120 ns	100 ns	100 ns	120 ns	120 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	17.8816 mm	36.75 mm	36.75 mm	36.75 mm	36.75 mm	17.8816 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	SOP
Encapsulate equivalent code	SOP28,.5	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	SOP28,.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.6416 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	2.6416 mm
Maximum standby current	0.00005 A	0.002 A	0.00005 A	0.002 A	0.00005 A	0.00005 A
Minimum standby current	2 V	4.5 V	2 V	4.5 V	2 V	2 V
Maximum slew rate	0.085 mA	0.09 mA	0.085 mA	0.09 mA	0.085 mA	0.085 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	8.4074 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	8.4074 mm
Maker	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-
