HY29F400TT-45E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HY29F400TT-45E

HY29F400TT-45E: DescriptionFlash, 256KX16, 45ns, PDSO48, TSOP-48; Categorystorage storage; File Size3MB，39 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HY29F400TT-45E Overview

Flash, 256KX16, 45ns, PDSO48, TSOP-48

HY29F400TT-45E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1164067852
package instruction	TSOP1, TSSOP48,.8,20
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum access time	45 ns
Spare memory width	8
startup block	TOP
command user interface	YES
Data polling	YES
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	1,2,1,7
Number of terminals	48
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256KX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP48,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	1.2 mm
Department size	16K,8K,32K,64K
Maximum standby current	0.00002 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
switch bit	YES
type	NOR TYPE
width	12 mm

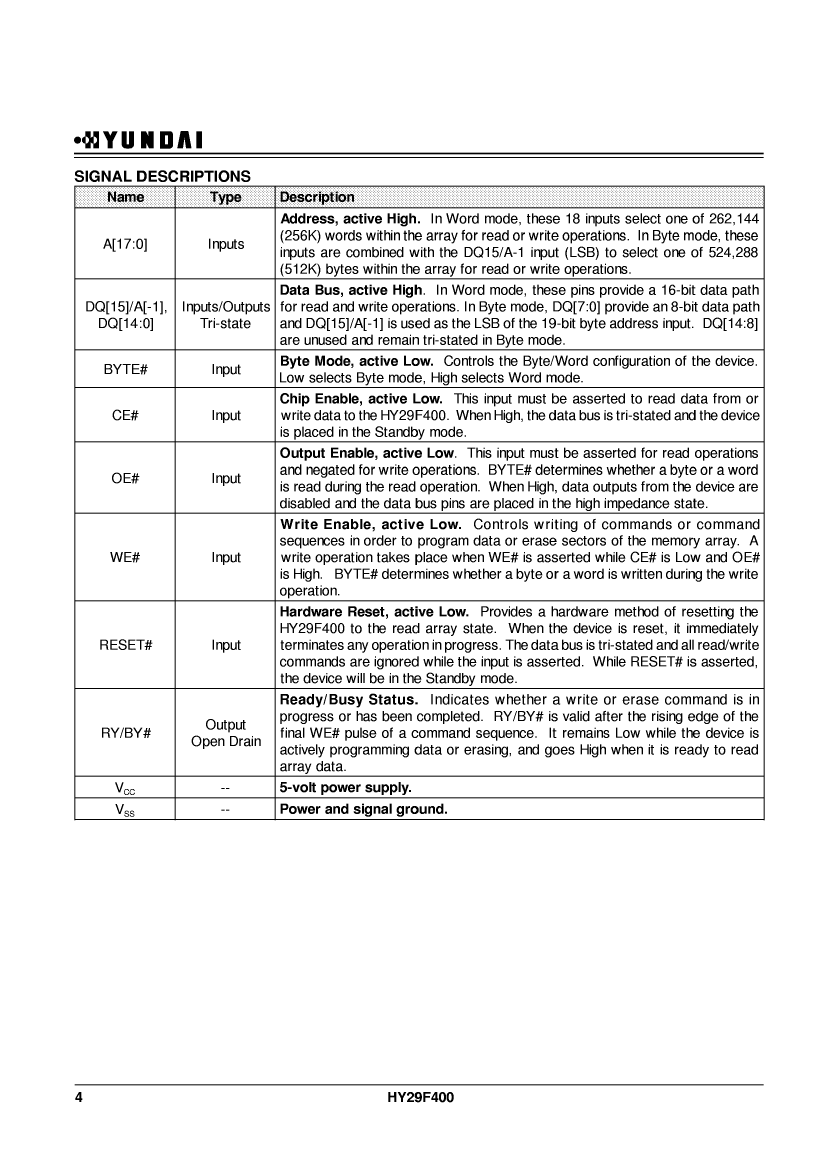

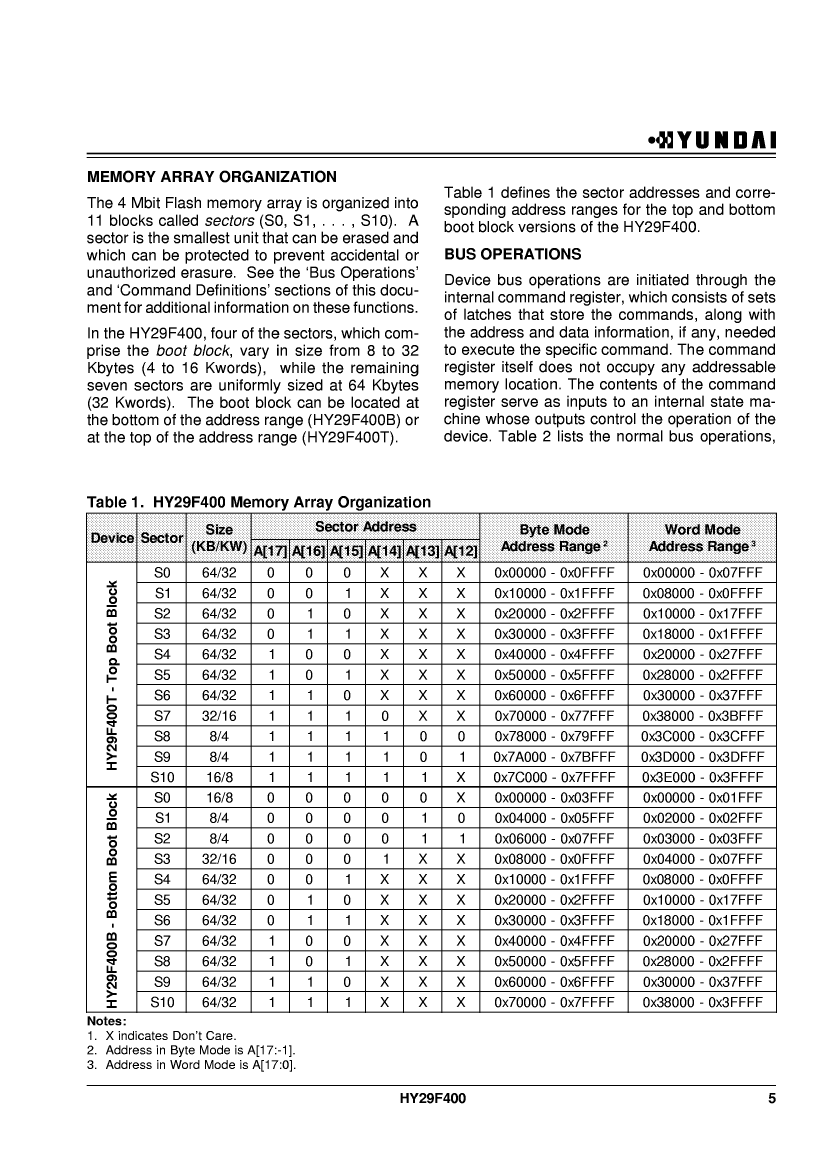

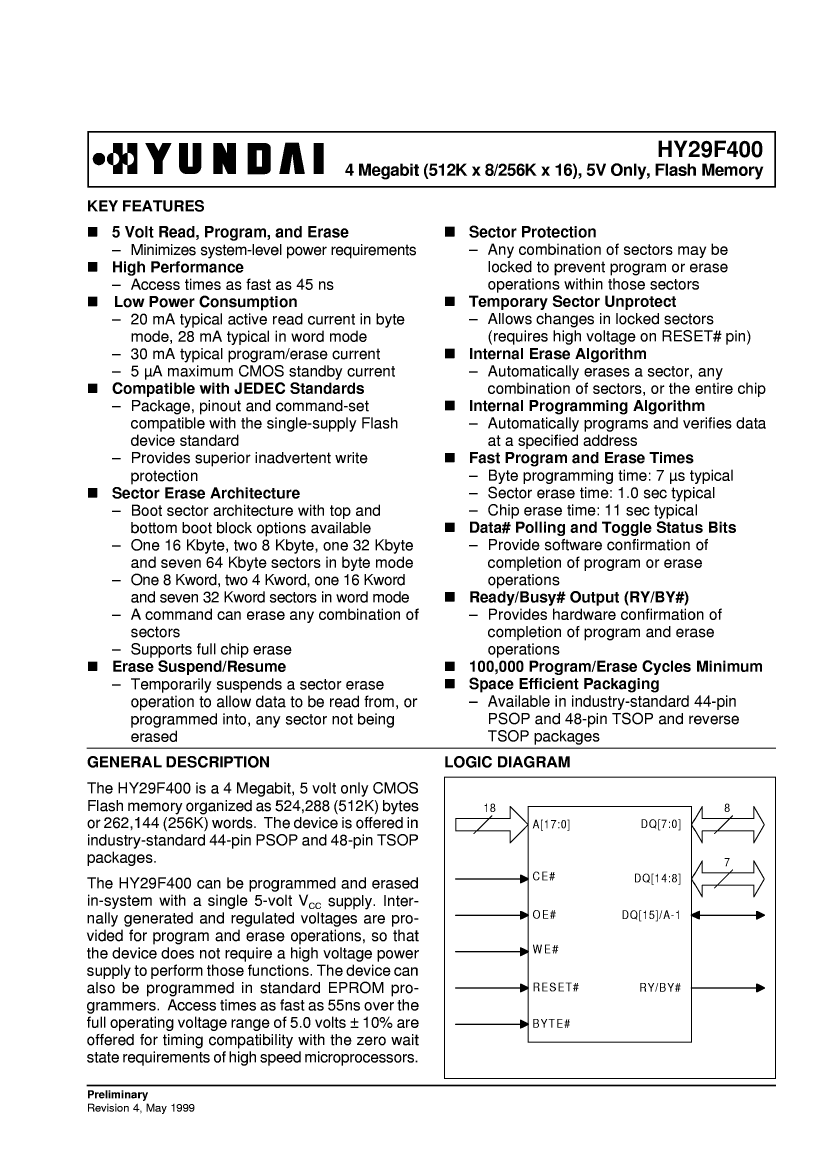

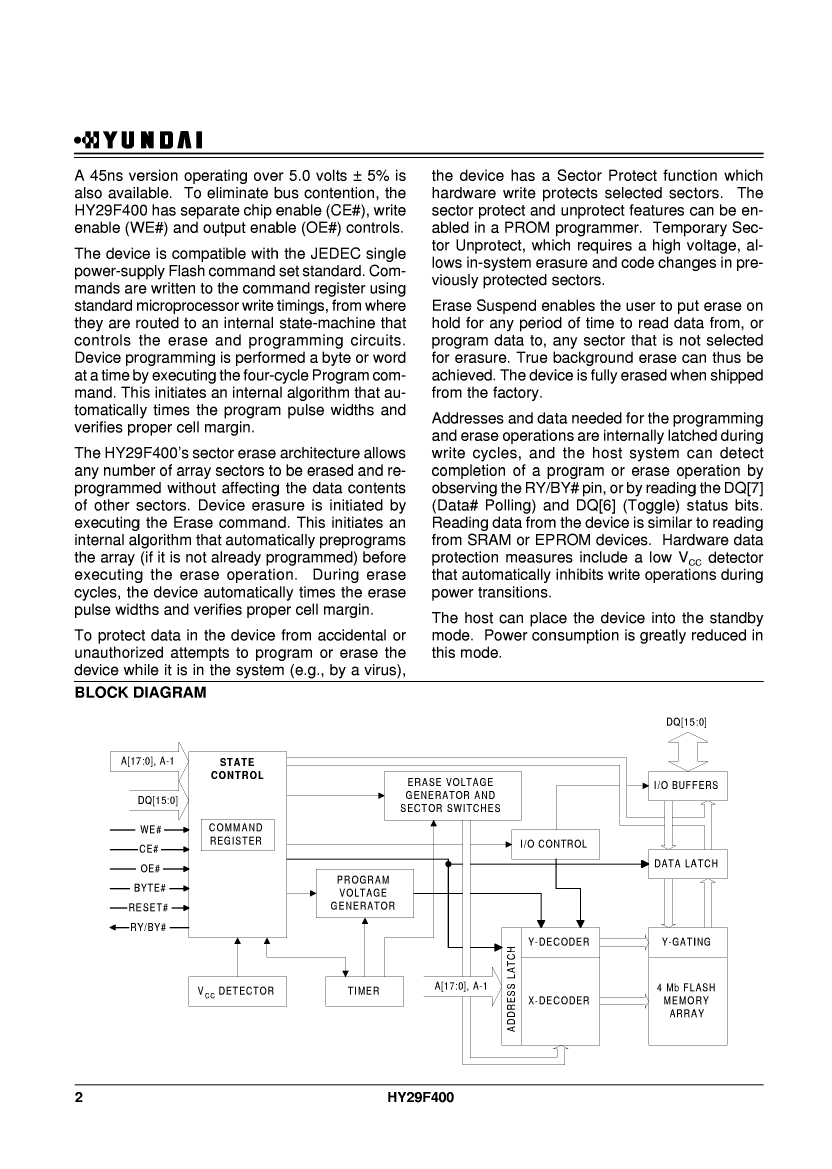

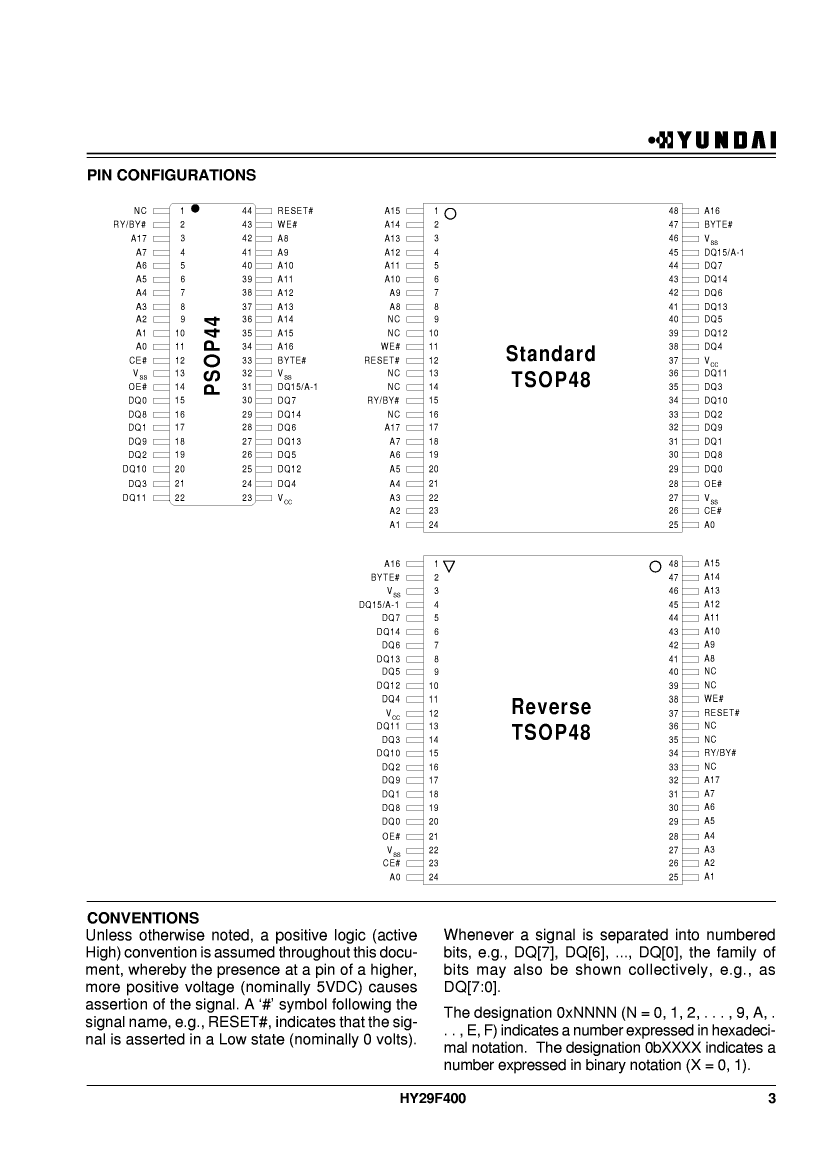

Preview

Download Datasheet

View All

HY29F400TT-45E Related Products

	HY29F400TT-45E	HY29F400BR-45E	HY29F400BR-55E	HY29F400BR-70E	HY29F400BT-70E	HY29F400TG-45E	HY29F400TG-55E	HY29F400BG-45E	HY29F400BG-55E	HY29F400BT-45E
Description	Flash, 256KX16, 45ns, PDSO48, TSOP-48	Flash, 256KX16, 45ns, PDSO48, TSOP-48	Flash, 256KX16, 55ns, PDSO48, TSOP-48	Flash, 256KX16, 70ns, PDSO48, TSOP-48	Flash, 256KX16, 70ns, PDSO48, TSOP-48	Flash, 256KX16, 45ns, PDSO44, SOP-44	Flash, 256KX16, 55ns, PDSO44, SOP-44	Flash, 256KX16, 45ns, PDSO44, SOP-44	Flash, 256KX16, 55ns, PDSO44, SOP-44	Flash, 256KX16, 45ns, PDSO48, TSOP-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSOP1, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	TSOP1, TSSOP48,.8,20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Maximum access time	45 ns	45 ns	55 ns	70 ns	70 ns	45 ns	55 ns	45 ns	55 ns	45 ns
Spare memory width	8	8	8	8	8	8	8	8	8	8
startup block	TOP	BOTTOM	BOTTOM	BOTTOM	BOTTOM	TOP	TOP	BOTTOM	BOTTOM	BOTTOM
command user interface	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Data polling	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	28.2 mm	28.2 mm	28.2 mm	28.2 mm	18.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bi
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	16	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of departments/size	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7
Number of terminals	48	48	48	48	48	44	44	44	44	48
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1-R	TSOP1-R	TSOP1-R	TSOP1	SOP	SOP	SOP	SOP	TSOP1
Encapsulate equivalent code	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	TSSOP48,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ready/busy	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	2.8 mm	2.8 mm	2.8 mm	2.8 mm	1.2 mm
Department size	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K
Maximum standby current	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
switch bit	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	12 mm	12 mm	12 mm	12 mm	12 mm	13.3 mm	13.3 mm	13.3 mm	13.3 mm	12 mm
Base Number Matches	-	1	1	1	1	1	1	-	-	-
