272216201572 datasheet, PDF - EEWORLD Datasheet

272216201572: DescriptionRF/Microwave Isolator/Circulator, 400 MHz - 470 MHz RF/MICROWAVE 3 PORT CIRCULATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

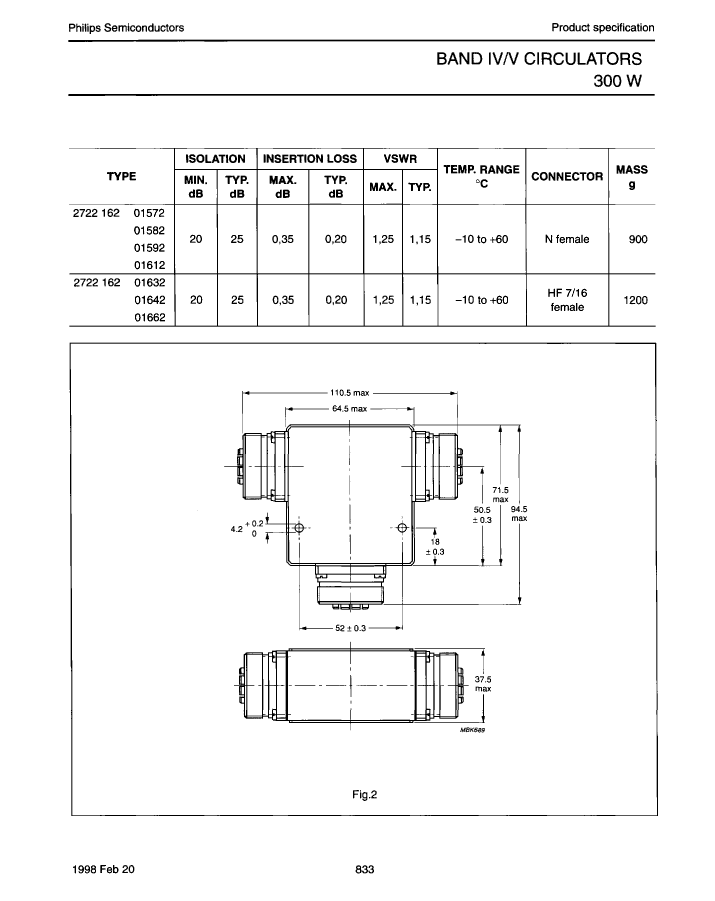

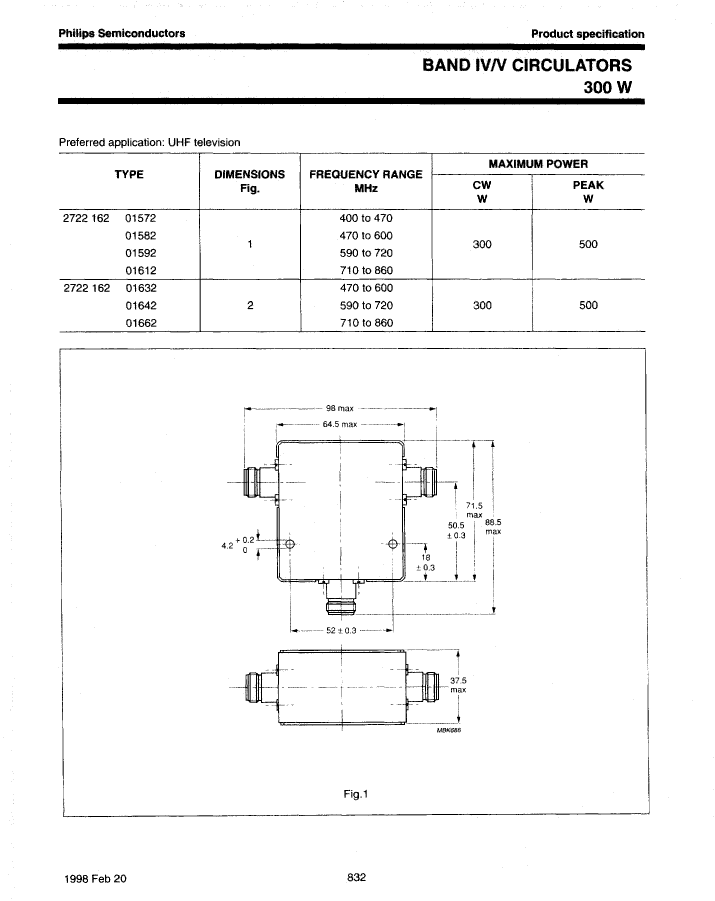

272216201572 Overview

RF/Microwave Isolator/Circulator, 400 MHz - 470 MHz RF/MICROWAVE 3 PORT CIRCULATOR

Parameter Name	Attribute value
Reach Compliance Code	unknow
structure	MODULE
Maximum input power (CW)	54.77 dBm
Maximum insertion loss	0.35 dB
Maximum operating frequency	470 MHz
Minimum operating frequency	400 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

	272216201572	272216201582	272216201662	272216201592	272216201642	272216201612	272216201632
Description	RF/Microwave Isolator/Circulator, 400 MHz - 470 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 470 MHz - 600 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 710 MHz - 860 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 590 MHz - 720 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 590 MHz - 720 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 710 MHz - 860 MHz RF/MICROWAVE 3 PORT CIRCULATOR	RF/Microwave Isolator/Circulator, 470 MHz - 600 MHz RF/MICROWAVE 3 PORT CIRCULATOR
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown	unknow
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	54.77 dBm	54.77 dBm	54.77 dBm	54.77 dBm	54.77 dBm	54.77 dBm	54.77 dBm
Maximum insertion loss	0.35 dB	0.35 dB	0.35 dB	0.35 dB	0.35 dB	0.35 dB	0.35 dB
Maximum operating frequency	470 MHz	600 MHz	860 MHz	720 MHz	720 MHz	860 MHz	600 MHz
Minimum operating frequency	400 MHz	470 MHz	710 MHz	590 MHz	590 MHz	710 MHz	470 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
RF/Microwave Device Types	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Base Number Matches	1	1	1	1	1	1	-
Maker	-	-	-	NXP	NXP	NXP	NXP
