DTS26F11-35PD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DTS26F11-35PD

Preview

DTS26F11-35PD: Description13 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, PLUG; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

DTS26F11-35PD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTS26F11-35PD	-	-	View	Buy Now

DTS26F11-35PD Overview

13 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, PLUG

DTS26F11-35PD Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
Factory Lead Time	23 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	11
Termination type	CRIMP
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

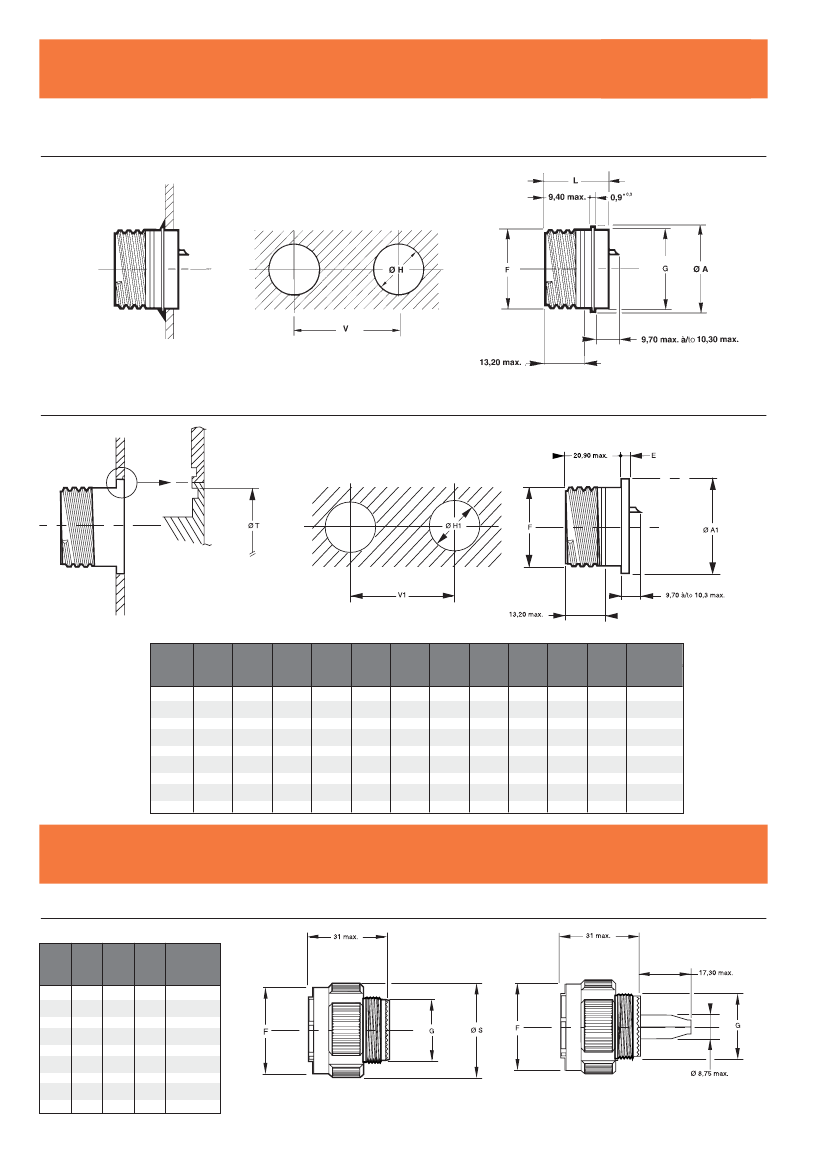

Embases hermétiques

Hermetic receptacles

■

Collerette à braser /

Hard solder receptacle -

TYPE 25

MODE DE FIXATION /

MOUNTING STYLES

DTS

Perçage panneau /

Panel cutout

■

Collerette à souder /

Soldered box mounting -

TYPE 27

MODE DE FIXATION /

MOUNTING STYLES

Perçage panneau /

Panel cutout

Taille

Size

09

11

13

15

17

19

21

23

25

A

max.

19,40

21,80

25,10

28,10

31,30

33,60

36,80

40,00

43,20

A1

+ 0,3

-- 0

E

± 0,2

F

± 0,1

G

max.

17,10

19,90

23,10

26,20

29,40

31,80

35,00

38,20

41,30

H

+ 0,

-- 0,25

H1

mini.

25,06

28,16

31,36

34,56

36,76

40,46

44,06

48,26

50,46

L

max.

23,80

24,60

V

mini.

22,60

25,80

30,20

33,30

36,50

39,30

42,50

45,70

48,80

V1

+ 0,

-- 0,25

ØT

+ 0,

-- 0,3

Masse/Mass

max.

25,00

35,00

45,00

59,00

83,00

89,00

110,00

127,00

148,00

24,70

27,80

31,00

34,20

36,40

40,10

43,70

47,90

50,10

3,20

4,00

15,75

18,90

22,10

25,25

29,95

31,55

34,70

37,90

41,10

17,58

20,35

23,52

26,70

29,87

32,26

35,43

38,60

41,80

27,00

29,50

32,50

35,60

37,80

41,50

45,10

49,30

51,50

23,90

27,00

30,20

33,40

35,60

39,30

42,90

47,10

49,30

Fiche

Plug

■

Taille

TYPE 26

F

G

S

Masse/Mass

Alu

*

15,00

20,00

31,00

42,00

55,00

63,00

79,00

88,00

109,00

*

Poids sans contact /

Mass without contact

Size

max. max. max.

09

11

13

15

17

19

21

23

25

18,40

21,10

25,40

28,70

32,20

34,90

38,10

41,10

44,30

11,90

14,90

17,90

21,90

24,90

27,90

30,90

33,90

36,90

21,80

25,00

29,40

32,50

35,70

38,50

41,70

44,90

48,00

Manchon avec “tétine”, voir pages 16 et 17

With protect sleeves, see pages 16 and 17

12
