SZ2-24: DescriptionPOWER TRANSFORMER Printed Circuit Mount; File Size312KB，2 Pages; ManufacturerPowerVolt, Inc.; Websitehttps://www.powervolt.com/

Download Datasheet View All

SZ2-24 Overview

POWER TRANSFORMER Printed Circuit Mount

Preview

Download Datasheet

View All

1.

Electrical Specifications

A.

B.

C.

D.

E.

F.

Maximum Power: 1.1VA

Input Voltage and Frequency: 115V @ 50/60Hz

Voltage Regulation: 25% TYP @ Full Load to No Load

Temperature Class B - 130 C

Insulation Resistance: > 1 MEG ohm

Hi-Pot: 2500Vrms 1 minute @ Pri to Sec

2500Vrms 1 minute @ Pri to Core

1500Vrms 1 minute @ Sec to Core

2.

3.

Marking: Powervolt, Inc., part number (see table), date code,

terminal numbers

Safety:

UL/cUL 5085-2 Recognized (File 180353)

Single Primary (6 Pin)

Part Number

115V

SZ2-24

Series Connection

24VCT @ 0.045A

Parallel Connection

12V @ 0.09A

●

Indicates Like Polarity

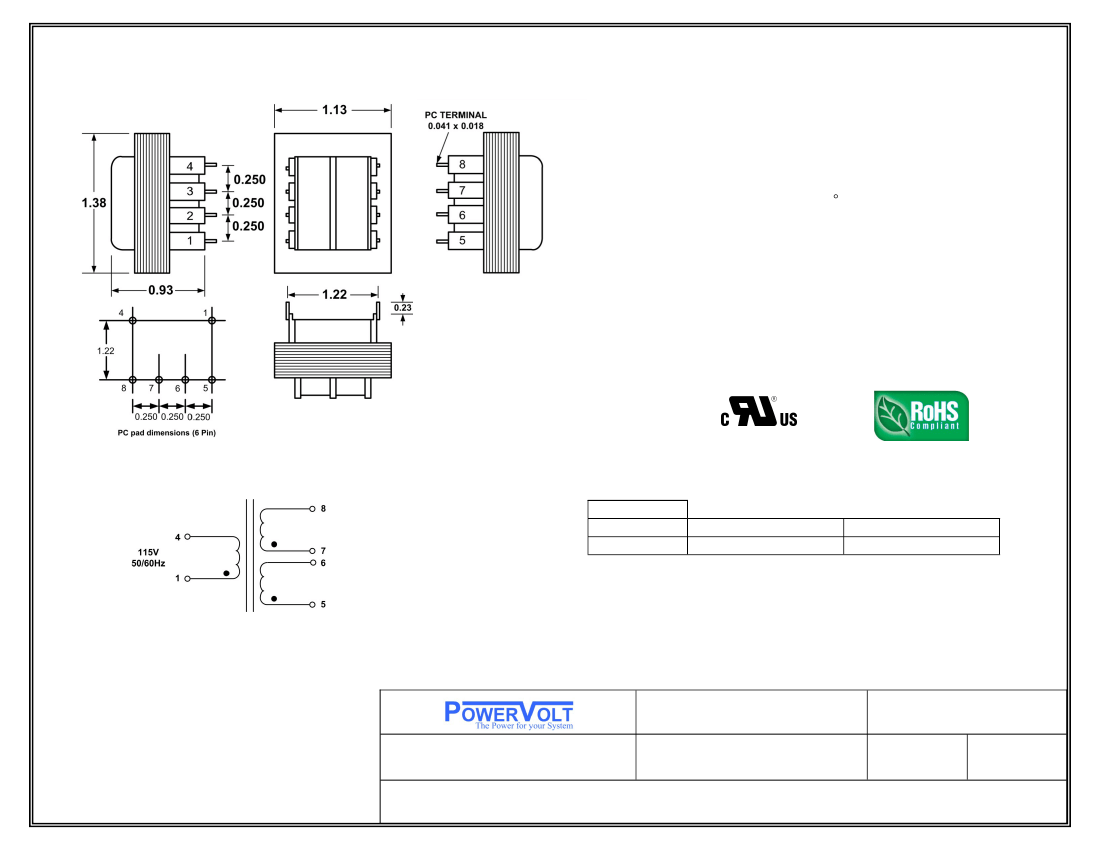

POWER TRANSFORMER

Printed Circuit Mount

CONTENTS OF THIS DRAWING ARE SUBJECT TO

CHANGE WITHOUT PRIOR NOTICE

Part Number:

SZ2-24

Dim: Inches

Sheet 1 of 1

Powervolt, Inc.

300 W Factory Rd., Addison, IL 60101

PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH POWERVOLT

RETAINS THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSID-

ERATION BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
