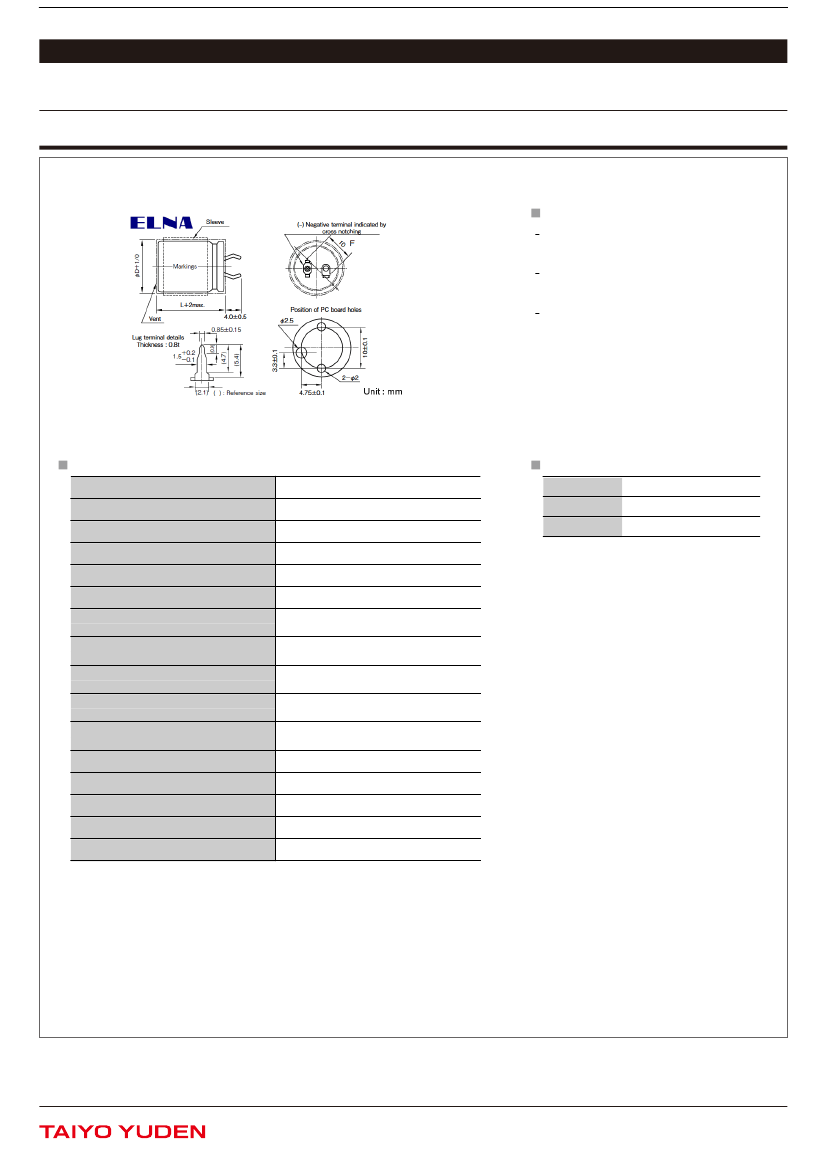

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS[LTZ]
LTZ-80V562MS46#B
Features
Item Summary
5600uF±20%, 80V, φ30x45mm, Leaded
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
50
Products characteristics table
Capacitance
Rated Voltage
tanδ (max)
Operating Temp. Range
Leakage current (min)
Rated Ripple (max)
Impedance ratio
___[-25℃/+20℃]
Impedance ratio
___[-40℃/+20℃]
Endurance
___[Test time]
Endurance
___[Capacitance change]
Endurance
___[tanδchange]
Shape
Type
RoHS Compliance (10 subst.)
REACH Compliance (191 subst.)
Soldering
Snap-in
Long life
Yes
Yes
Flow
200% or less of initial specified value
Within ±20% of initial value
3000 hr at 105 ℃
15
5600 uF ± 20 %
80 V
0.2
-40 to +105 ℃
2007 uA at 5 min
3740 mArms at 120 Hz / 105 ℃
4
External Dimensions
Dimension φD
Dimension L
Dimension P (F)
φ30 +1/-0 mm
Max 45 +2 mm
Typ 10 mm
2019.06.03
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
