TCPWC EMI Filters SMD Choke
SMD EMI Filters
Common Mode Choke
Preview

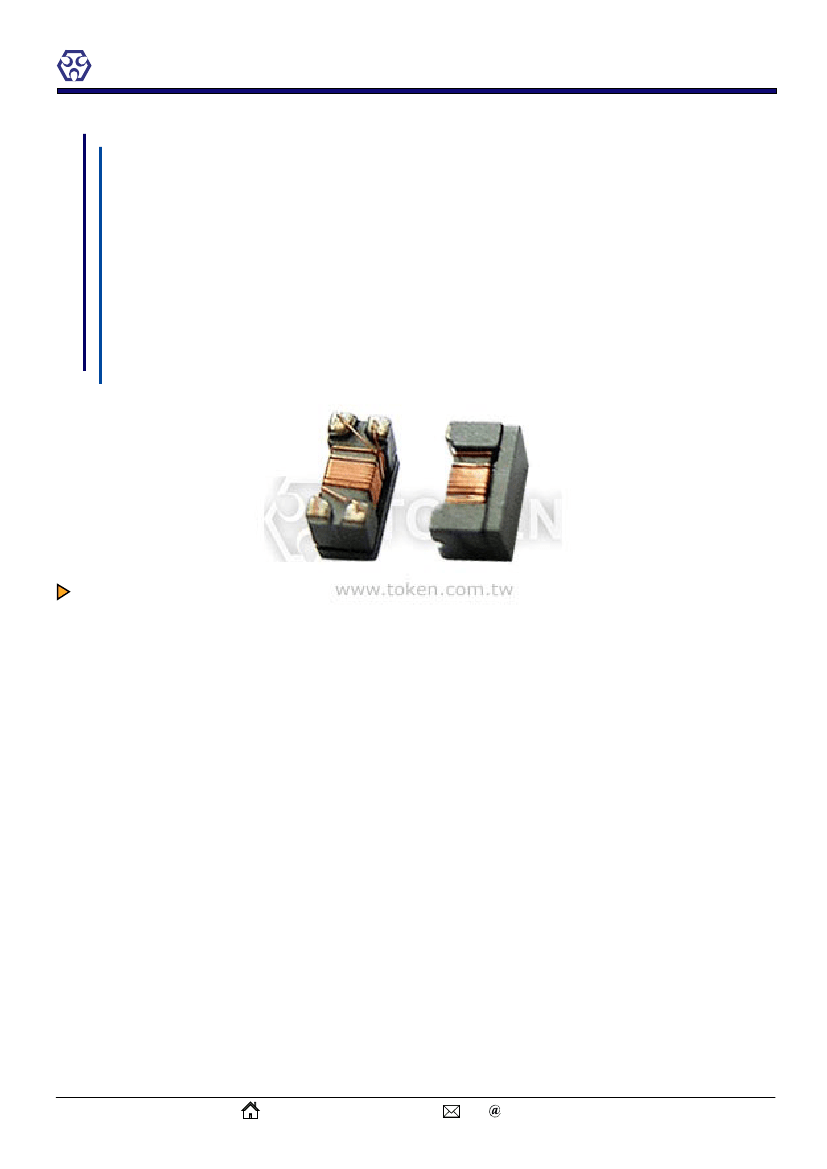

Token EMI filters SMD common mode choke TCPWC series are primarily designed for choking power lines and
conform to the RoHS compliant and Lead-free. SMD choke EMI filters feature with ultra-compact size, wide
inductance selection, and low-resistance coils. SMD TCPWC can be customed designs and tighter tolerances
available on request.
Token’s TCPWC taking advantage of the latest winding technology consists ferrite core and a pair lines enabling
the most effective in noise suppression designs. Feature high common-mode impedance at noise band and low
differential-mode impedance at signal band. Low differential-mode impedance with high coupling factor, there is
almost no distortion on high speed signal.
Application of SMD choke EMI filters specific designs also available including different inductance values and
Q specifications adjusted to frequency requirements.
Token will also produce devices outside these specifications to meet customer requirements, with comprehensive
application engineering and design support available for customers worldwide.
Applications :
- USB Line for Personal Computers and Peripheral.
- IEEE 1394 Line for Personal Computers ,DVC ,STB.
- LCD Panels. Low-Voltage Differential Signal (LVDS).
- EMI Radiation Noise Suppression for Any Electronic Device.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 06
TOKEN

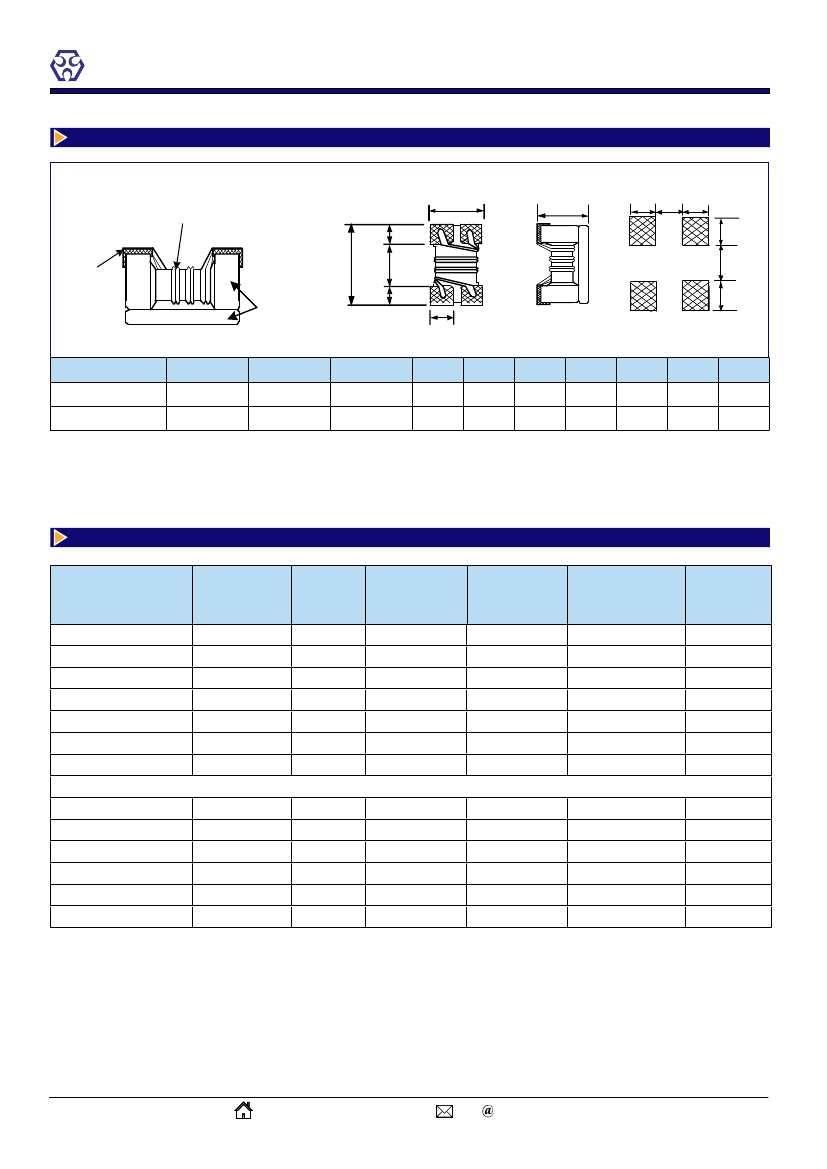

Configurations & Dimensions
TCPWC EMI Filters SMD Choke
TCPWCH
Enamel-insulated wire
Terminal
TYPE
TCPWCH05
TCPWCH06
A
2.0±0.2
3.2±0.2
Electrical Characteristics
Part Number
TCPWCH05MT670
TCPWCH05MT900
TCPWCH05MT121
TCPWCH05MT181
TCPWCH05MT201
TCPWCH05MT261
TCPWCH05MT371
TCPWCH06MT900
TCPWCH06MT161
TCPWCH06MT261
TCPWCH06MT601
TCPWCH06MT102
TCPWCH06MT222
Impedance
(Ω) 100MHz
67
90
120
180
200
260
370
90
160
260
600
1000
2200
DCR
(Ω)(max)
0.25
0.35
0.30
0.35
0.35
0.40
0.40
0.30
0.40
0.50
0.80
1.00
1.20
02 of 06
B
E
A
F
E
G
B
1.2±0.2
1.6±0.2
C
1.2±0.2
1.8±0.2
E
0.45
0.60
F
1.2
2.0
G
0.4
0.6
C
K
H
K
I
J
I
Note:
Operating Temp.: -40°C+85°C.
Ferrite
H
0.8
1.6
I
0.4
0.6
J
0.4
0.4
K
0.90
1.05
Rated Current Rated Voltage
Withstanding
(mA)(max)
(V)(DC)
Voltage (V)(DC)
400
330
370
330
330
300
280
370
340
310
260
230
200
50
50
50
50
50
50
50
50
50
50
50
50
50
125
125
125
125
125
125
125
125
125
125
125
125
125
Insulation
Resistance
(MΩ)(min)
10
10
10
10
10
10
10
10
10
10
10
10
10
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN

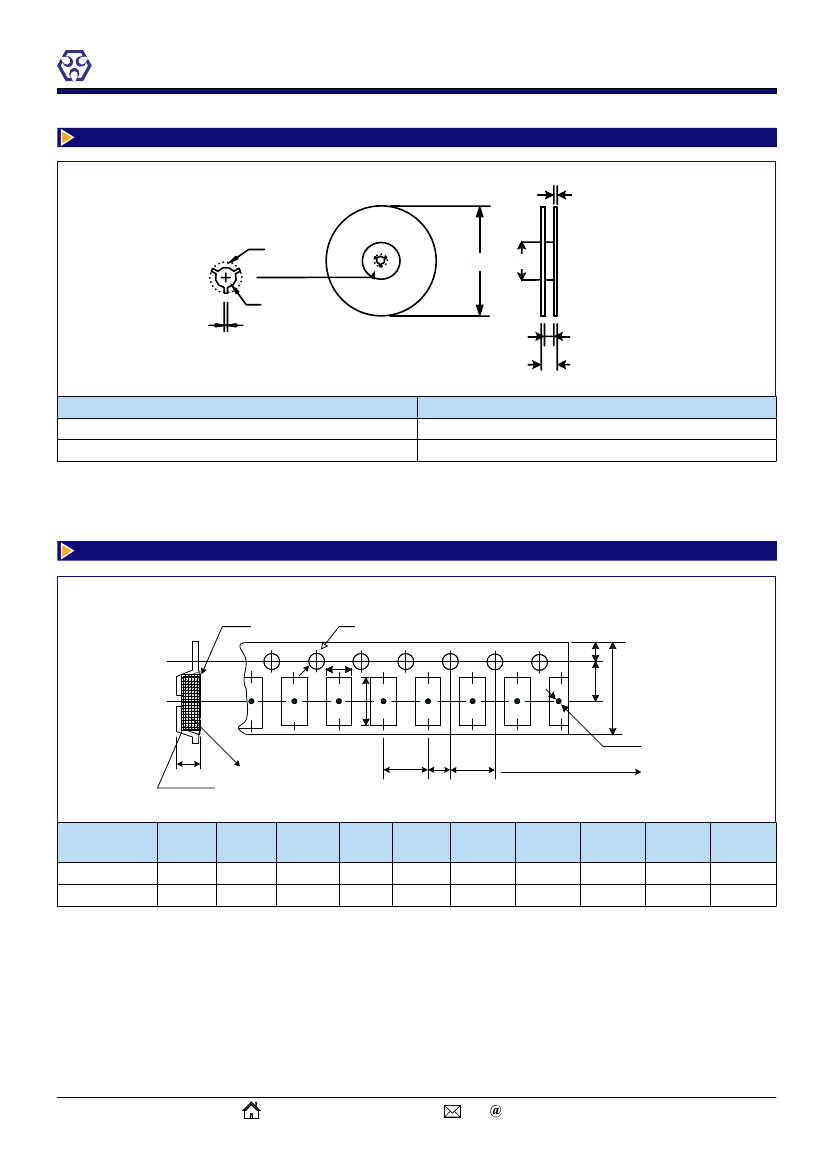

Packaging Quantity & Reel Specifications
TCPWC EMI Filters SMD Choke
1.2±0.2
D:21.8±0.8
Label
180
-3
60
+1
-0
D:13.0±0.3
2.0±0.5
Reel Specifications
9.5±0.50
11.4±1.0
Type
TCPWCH05
TCPWCH06
Emboss Plastic Tape (PCS)
2000
2000
+0
Emboss Plastic Tape Specifications
Top Tape
A
Φ D
0
E
B
F
W
Resistor
Emboss Tape
A
±0.10
1.40
1.90
B
±0.05
2.55
3.50
W
±0.20
8.0
8.0
E
±0.10
1.75
1.75
T
P
1
P
2
P
0
Φ D
1
1.5min
direction of unreeling
Codes
TCPWCH05
TCPWCH06
F
±0.10
3.5
3.5
P0
±0.10
4.00
4.00
P1
±0.10
4.00
4.00
P2
±0.10
2.00
2.00
ΦD0
+0.10
1.50
1.50
t ±0.10
1.35
2.10
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 06
TOKEN
Leader / Tape
TCPWC EMI Filters SMD Choke
Trailer End
Leader
Trailer(80mm min)
Empty Compartments with
Cover Tape (80mm min)
Cover Tape Only
450mm min
Peel-off Force
160~180°
Top cover tape
Base tape
The force for tearing off cover tape is 0.05 ~ 0.69(N)
in the arrow direction at the following conditions:
Temperature: 5 ~ 35°C.
Humidity: 45 ~ 85%.
Atmospheric pressure: 860 ~ 1060 hpa.
(TCB4F - 617DB) Electrical Characteristics C
Port1
Port2
50Ω
50Ω
04 of 06
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
Environmental Characteristics
Test Items
Specifications
TCPWC EMI Filters SMD Choke
Test Conditions / Test Methods
LCR Meter HP 4291B
Micro-Ohm meter (GOM-801G)
Test Voltage: 2.5 Times Rated Voltage; Testing Time: 60 sec.
Charge Current: 0.5mA
Test Voltage: Rated Voltage; Testing Time: 1 to 5 sec;
Charge Current: 1mA
Charge Current: 1 minute
10M ohm min
The component should be soldered (232°C±5°C for 10 sec.)
totinned copper substrate. Applied force gauge to the side of
component It must withstand force of 2 or 4 pounds without
failure of the component.
Dropping chip by each side and corner; Drop 10 times in total
Drop height:100cm; Drop weight:125g
The component shall be dipped in a melted solder bath
at 235°C±5°C for 5 seconds.
1. Amplitude: 1.5 m/m; 2. Frequency: 10-55-10 Hz(1min);
3. Direction: X, Y, Z; 4. Duration: 2 Hrs/X, Y, Z.
1. Temp: -40°C±C2°C; 2. Time: 1000±48 Hours; 3. Component
should be tested after 1 hour at room temperature.
Electrical Performance Test
Impedance
Refer to standard
DC Resistance (RDC) electrical characteristic spec.
Withstand Voltage
(VDC)
Rated Voltage
(VDC)
Insulation
Resistance (I.R.)
Mechanical Performance Test
Base: 0805 ≥ 2 Lbs
Component
Cover: 0805 ≥ 1 Lbs
Adhesion
Base: 1206 ≥ 4 Lbs
(push Test)
Cover: 1206 ≥ 2 Lbs
Component should not be
Drop Test
damaged
The terminal should at least be
Solderability Test
90% covered with solder
Vibration Test
Component should not be
(Low Frequency)
damaged
Climatic Test
Low Temperature
Storage Test
Thermal Shock Test
High Temperature
Storage Test
Humidity Test
High Temperature
Load Life Test
Low Temperature
Load Life Test
Impedance change:
Within±20%
Without distinct damage in
ppearance.
Component should not be
damaged
There should be no evidence of
short or open circuit
Total: 5 Cycles
1. Temp: 85°C±2°C; 2. Time: 1000±48 Hours;
3. Component should be tested after 1 hour at room temperature.
1. Temp: 40°C±2°C; 2. R.H.: 90%~95%; 3. Time: 48±2 Hours
1. Temp: 85°C±2°C; 2. Time: 96±12 Hours;
3. Load: Allowed DC Current
1. Temp: -40°C±2°C; 2. Time: 96±12 Hours;
3. Load: Allowed DC Current
ROOM TEMP
15MINS
-25±2°C
30MINS
ROOM TEMP
15MINS
-85±2°C
30MINS
Note:
Storage Temperature: 25±3°C; Humidity:<80%RH
Version 2010
http://www.token.com.tw/
rfq token.com.tw
05 of 06
