TCRB Coil Choke Inductors Radial
Coil Choke Inductors

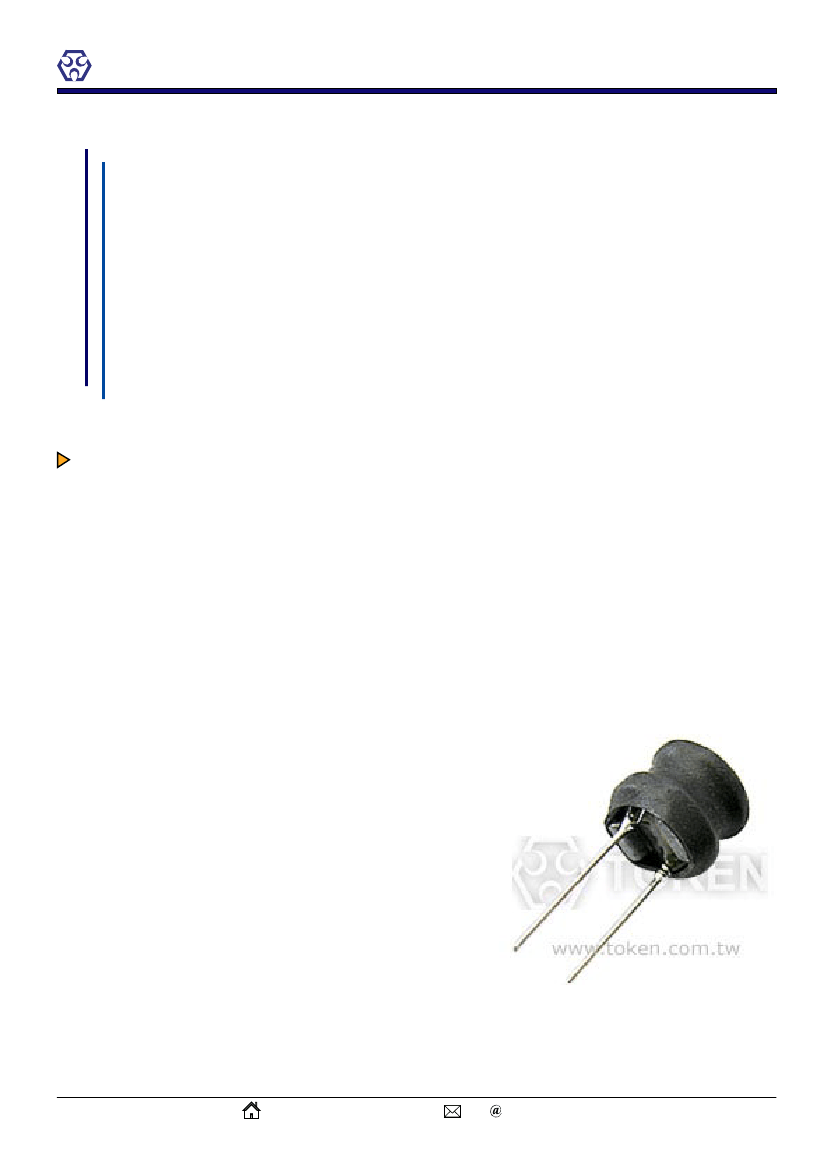

Radial Choke Coils with open magnetic circuit
construction design makes better TCR (TCRB)
Preview
Token TCRB series structure with open magnetic circuit construction design and protect by UL or PVC Heat-
shrinkable tube. The TCRB features with small size, space savings, low cost, wide inductance range, high Q
value, high availability of a large induced current, high self-resonance frequency, small magnetic flux leakage
and so on.
Choke coils, also known as: Choke, differential mode inductors, is used to limit the alternating current through
the coil, high-frequency and low frequency choke coils.
The TCRB is idael for broadband modems, game consoles, lighting equipment, notebook computers, inkjet
printers, photocopying machines, color TV, VCR, camera, microwave ovens, display monitors, mobile phones,
automotive electronics products.
Token will also produce devices outside these specifications to meet specific customer requirements, please
contact our sales for more information.
Features :
- Open magnetic circuit construction
- Low cost and high reliability
Applications :
- Video Camera, Video Tape Recorder,
- Notebook, Inkjet Printer, Copying Machine,
- Display Monitor, Cellular Phone, ADSL Modem,
- Microwave Oven, Lighting and Car Electronics.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 07
TOKEN
Configurations & Dimensions
TCRB Coil Choke Inductors Radial
C
E
B
A
F
Type
TCRB0605
TCRB0606
TCRB0805
TCRB0807
TCRB0809
ΦA(max)
6.5
6.5
8.3
8.3
8.3
B(max)
5.5
6.5
5.5
7.5
9.5
C ± 1.0
4.0
4.0
5.0
5.0
5.0
E ± 0.05
0.50
0.50
0.65
0.65
0.65
F ± 0.5
4.0
4.0
5.0
5.0
5.0
Note:
Design as Customer’s Requested Specifications.
TCRB0605) Electrical Characteristics
Part Number
TCRB0605 - 220M
TCRB0605 - 270M
TCRB0605 - 330M
TCRB0605 - 390M
TCRB0605 - 470M
TCRB0605 - 560M
TCRB0605 - 680M
TCRB0605 - 820M
TCRB0605 - 101M
TCRB0605 - 121M
TCRB0605 - 151M
TCRB0605 - 181M
TCRB0605 - 221M
TCRB0605 - 271M
TCRB0605 - 331M
TCRB0605 - 391M
TCRB0605 - 471M
TCRB0605 - 561M
TCRB0605 - 681M
TCRB0605 - 821M
TCRB0605 - 102M
Inductance (µH)
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
270.00
330.00
390.00
470.00
560.00
680.00
820.00
1000.00
Test Freq. (KHz)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
DCR (Ω)(max)
0.180
0.210
0.270
0.290
0.340
0.420
0.480
0.550
0.680
0.770
0.950
1.150
1.300
1.550
2.180
2.470
2.920
3.970
4.570
5.280
7.060
IDC (A)(max)
0.90
0.81
0.74
0.68
0.62
0.57
0.51
0.47
0.42
0.39
0.35
0.32
0.29
0.26
0.23
0.21
0.20
0.18
0.16
0.15
0.13
Note: Test Freq.: 1KHz / 0.25V.
Operating Temp.: -40°C ~ +85°C
Inductance drop = 10% typ. at IDC.
02 of 07
http://www.token.com.tw/
rfq token.com.tw
Version 2010
