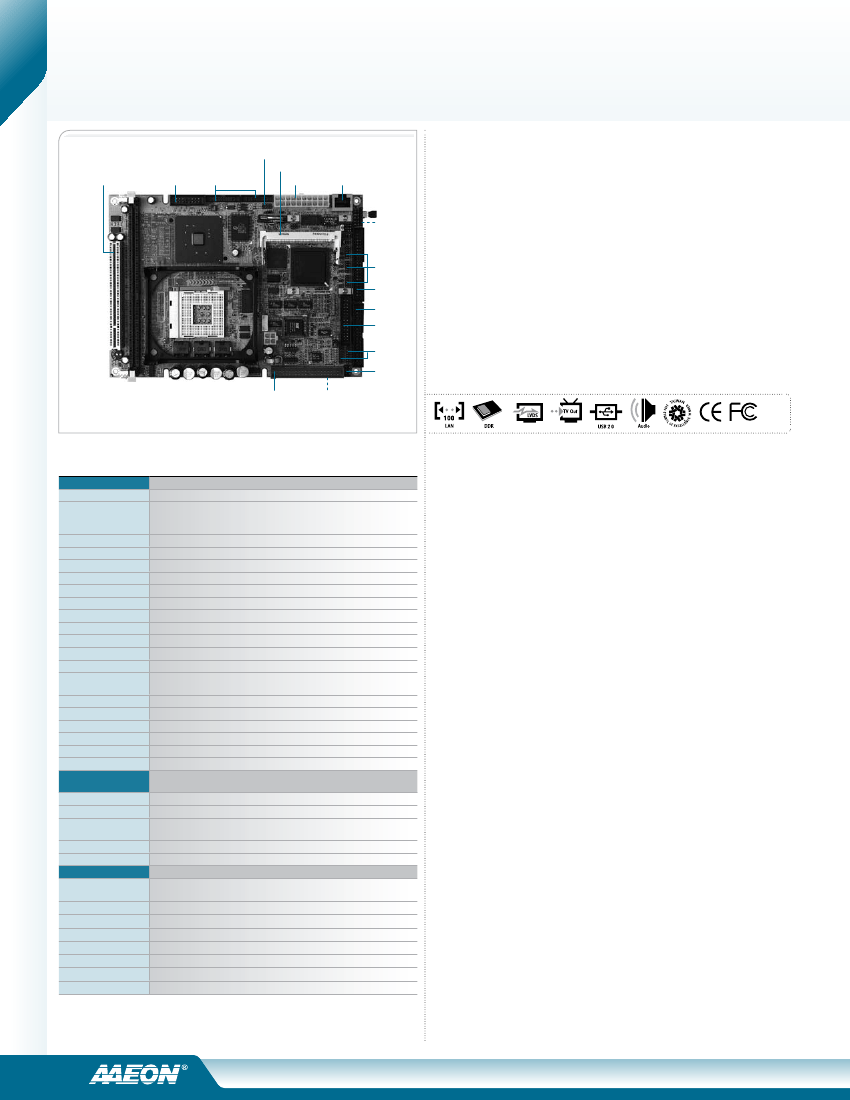

Compact Boards
PCM-8500
Compact Board with Intel® Pentium® 4/ Celeron® Processors
TV-out
Type III Mini-PCI
Power Input
Ethernet RJ-45
Features
Intel®
Socket-478M-based Pentium® 4, Celeron®
Processors
Intel®
845GV + ICH4
DIMM
DDR 266/333, Up To 1 GB
10/100Base-TX
Ethernet x 1
Up
To 24-bit Dual-channel LVDS LCD, CRT
AC97
5.1CH Audio
Type
II CompactFlash™ x 1, EIDE x 1, Floppy Disk Drive x 1
COM
x 4, USB2.0 x 6, 16-bit Digital I/O x 1
Type
II PCMCIA x 2, Mini-PCI x 1, PCI x 1
ATX
PCI
CRT
LVDS LCD
Type II
PCMCIA
(Back)
USB
COM
Parallel
Floppy
Disk Drive
Audio
Keyboard &
Mouse
40-pin IDE
CompactFlash™ (Back)
Specifications
System
Form Factor
Processor
System Memory
Chipset
I/O Chipset
Ethernet
BIOS
Wake On LAN
Watchdog Timer
H/W Status Monitoring
Expansion Interface
Battery
Power Requirement
Power Consumption
(Typical)
Board Size
Gross Weight
Storage Temperature
Operating Humidity
MTBF (Hours)
Display
Chipset
Memory
Resolutions
LCD Interface
TV-out
I/O
Storage
Serial Port
Parallel Port
USB
PS/2 Port
Digital I/O
IrDA
Audio
EIDE x 1 (UDMA 100 for two devices), Type II CompactFlash™ x 1, Floppy
Disk Drive x 1
RS-232 x 3, RS-232/422/485 x 1
SPP/ EPP/ ECP mode
USB2.0 x 6
Keyboard x 1, Mouse x 1
Supports 16-bit (Programmable)
One IrDA Tx/Rx header
Mic-in, Line-in, Line-out, Speaker-out, 5.1CH
5.25”
Intel® Socket-478M-based Pentium® 4 processor/ Intel® Pentium® 4
processor M (.13µ/ .18µ)/ Intel® Celeron® (.13µ/ .18µ) processor supports up
to 2.8 GHz with FSB 400/533 MHz
184-pin DDR DIMM x 1, Max. 1 GB(DDR 266/333)
Intel® 845GV + ICH4
ITE IT8712
Intel® 82562, 10/100Base-TX, RJ-45 x 1
Award 512 KB FLASH ROM
Yes
Generates a time-out system reset
Supports power supply voltages, fan speed and temperature monitoring
Mini-PCI x 1, PCI x 1, PCMCIA x 2
Lithium battery
ATX
Intel® Pentium® 4 2.4 GHz, DDR 333 512 MB
3.6A@+12V, 0.4A@+5V
8”(L) x 5.75”(W) (203mm x 146mm)
1.2 lb (0.5 kg)
-40°F ~176°F (-40°C ~ 80°C)
0% ~ 90% relative humidity, non-condensing
40,000
Supports CRT/ LCD simultaneous display
Supports screen image rotation
Intel® 845GV + Chrontel 7017
Shared system memory up to 64 MB with DVMT
Up to 1600x1200@32bpp colors for CRT
Up to 1280x1024@24bpp colors for LCD
Up to 24-bit dual-channel LVDS TFT LCD
Supports NTSC and PAL standard, S-Terminal and Composite Video
Packing List
•
9657666600
•
Quick Installation Guide
•
Utility CD
•
PCM-8500
Jumper Cap
Ordering Information
•
TF-PCM-8500-A11
5.25” Board, Socket Pentium
®
4 Desktop 478, LCD-TV, DDR, LAN, Audio, 4COM, USB2.0,
CompactFlash™, Mini-PCI, ATX, Rev.A1.1
Optional Accessories
•
1759200153
CPU Cooler Fan + Heat Sink, Socket-478M,
3P, 12V, 2U Low Profile (43mm height), up to
P4 3.2 GHz
•
TF-PER-C10L-A10-02
Mini-PCI 10/100Base-TX Ethernet Module with
Intel
®
82551QM
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)
•
1759200154
CPU Cooler Fan + Heat Sink, Socket-478M,
3P, 12V, 1U Low Profile (24mm height), up to
P4 2.2GHz
•
TF-PER-C10L-A10-03
Mini-PCI 10/100/1000Base-TX Ethernet Module
with Intel
®
82541GI
•
TF-PER-C30F-A10
Mini-PCI 3-port IEEE 1394a Module
•
TF-PER-0101
Cable Kit for PCM-8500
•
TF-PER-V30C-A11
Mini-PCI Single Channel Capture Module with
Philips SAA7135
•
TF-PER-C10L-A10
Mini-PCI 10/100Base-TX Ethernet Module with
Realtek 8100C
•
TF-PER-C40C-A10
Mini-PCI 2-port RS-232 Module Rev. A1.0
•
TF-PER-C10L-A10-01
Mini-PCI 10/100/1000Base-TX Ethernet Module
with Realtek 8110S
•
TF-PER-C40C-A10-01
Mini-PCI 4-port RS-232 Module Rev. A1.0
02-5
Note: All specifications are subject to change without notice.
