BHR10HTAGY datasheet, PDF - EEWORLD Datasheet

BHR10HTAGY: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size355KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

BHR10HTAGY Overview

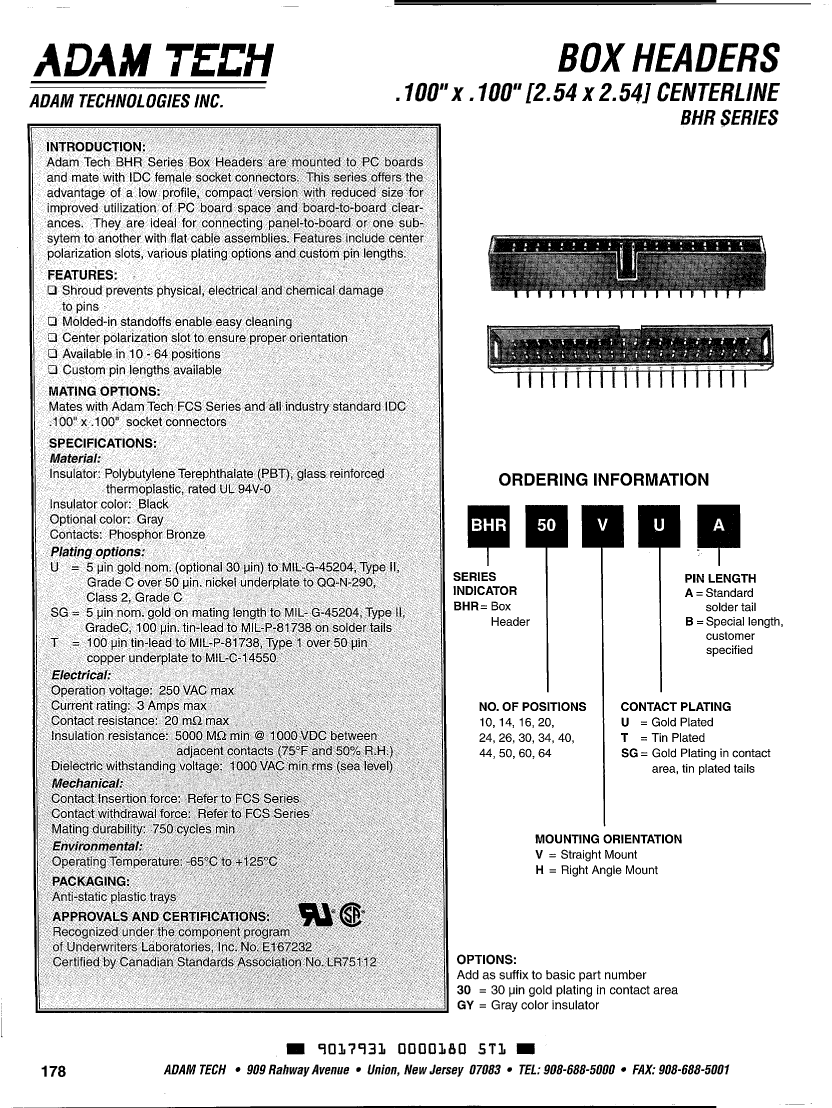

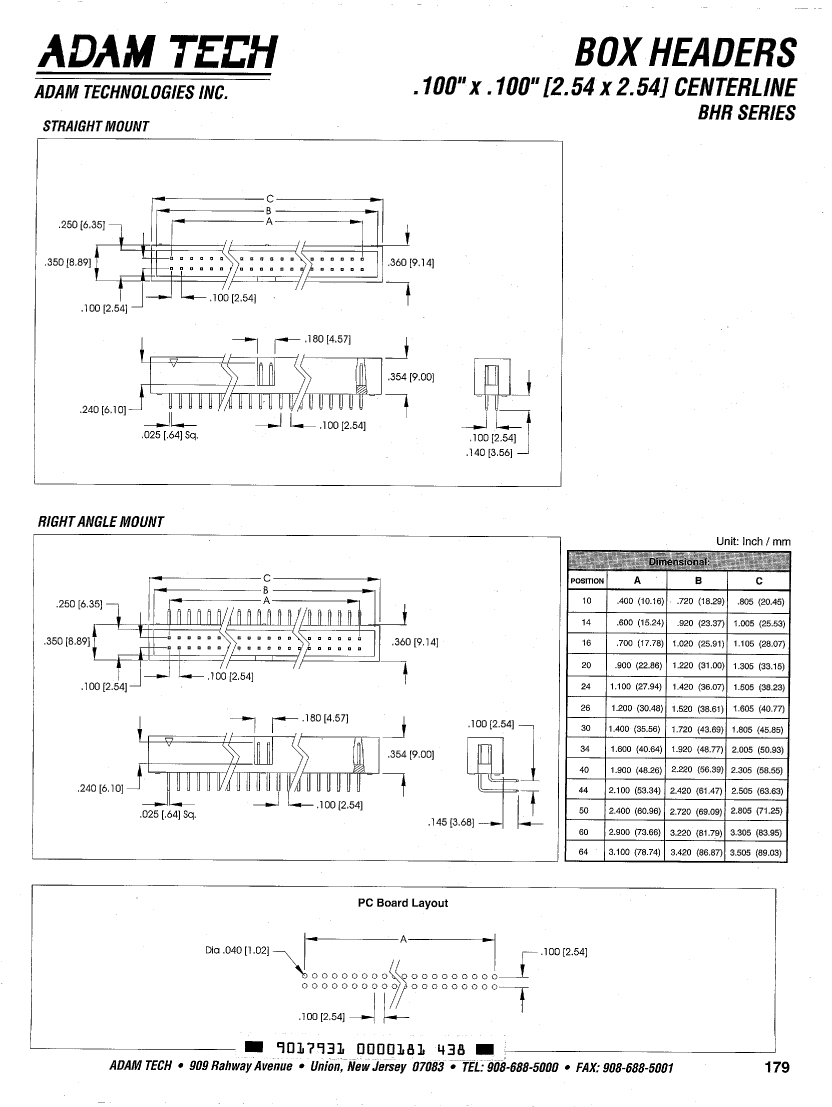

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	301504943
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.36 inch
body length	0.805 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BHR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
polarization key	CENTER
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.417 N
