5962-01-293-6609 datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-01-293-6609

5962-01-293-6609: DescriptionIC,SRAM,2KX8,CMOS,DIP,24PIN,PLASTIC; Categorystorage storage; File Size286KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

5962-01-293-6609 Overview

IC,SRAM,2KX8,CMOS,DIP,24PIN,PLASTIC

5962-01-293-6609 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1125526200
package instruction	DIP, DIP24,.6
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum access time	120 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T24
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Humidity sensitivity level	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0005 A
Minimum standby current	2 V
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

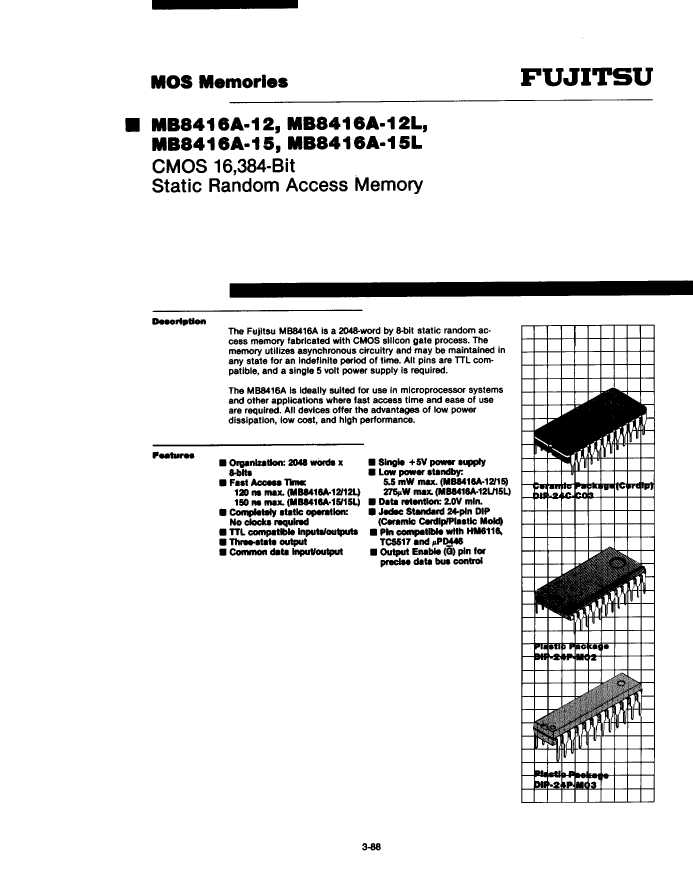

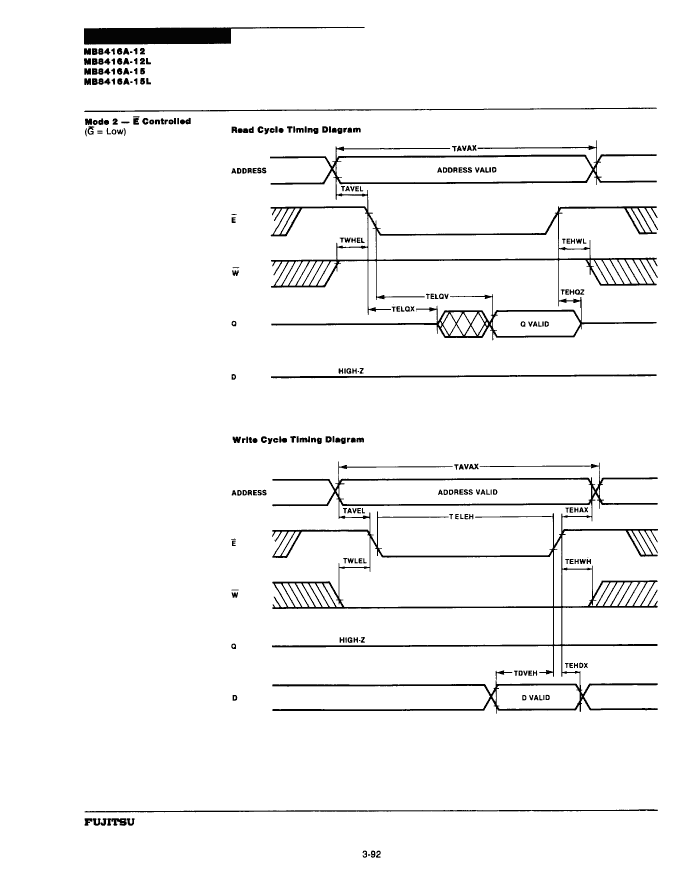

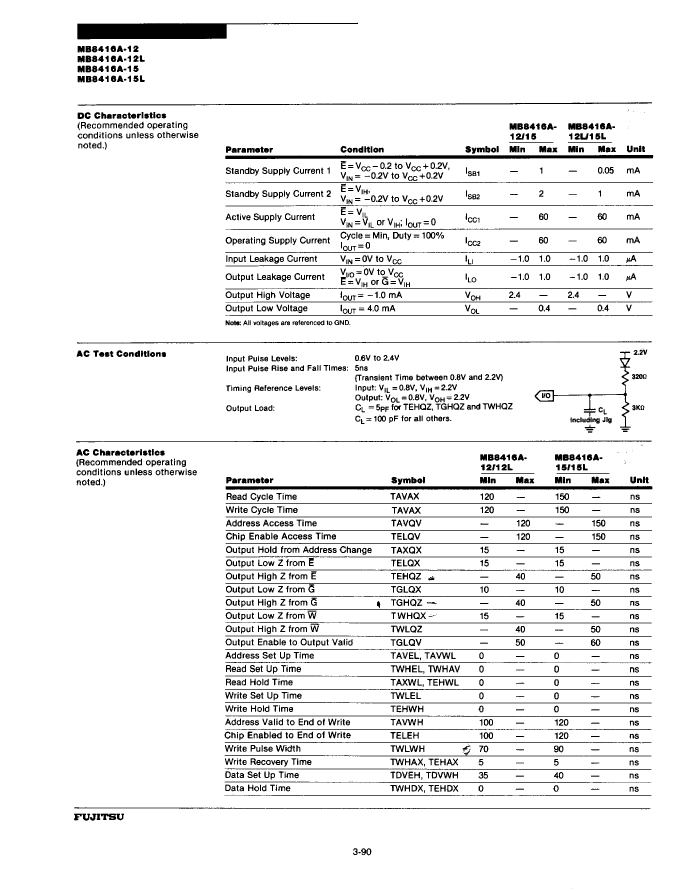

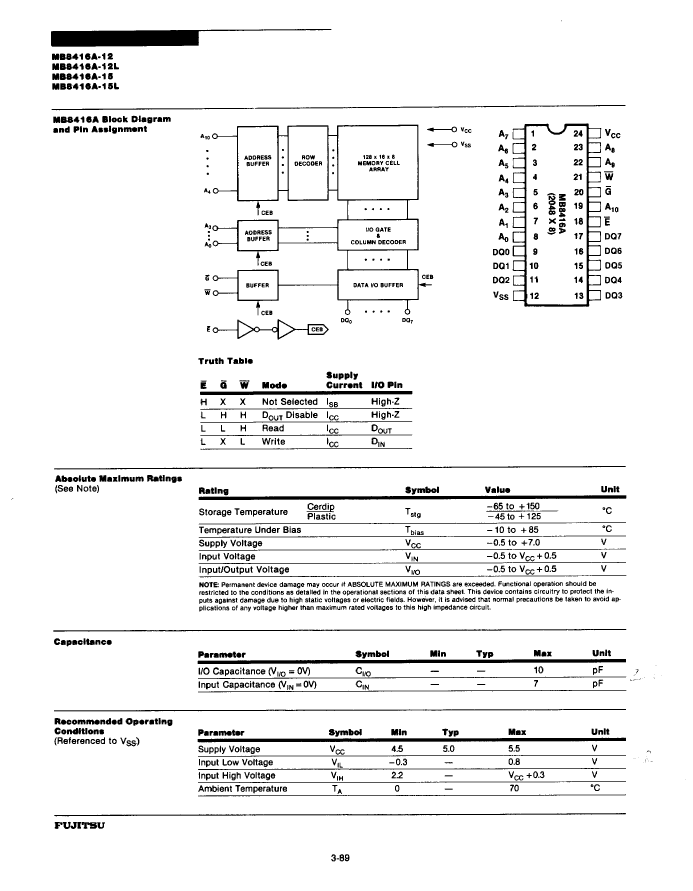

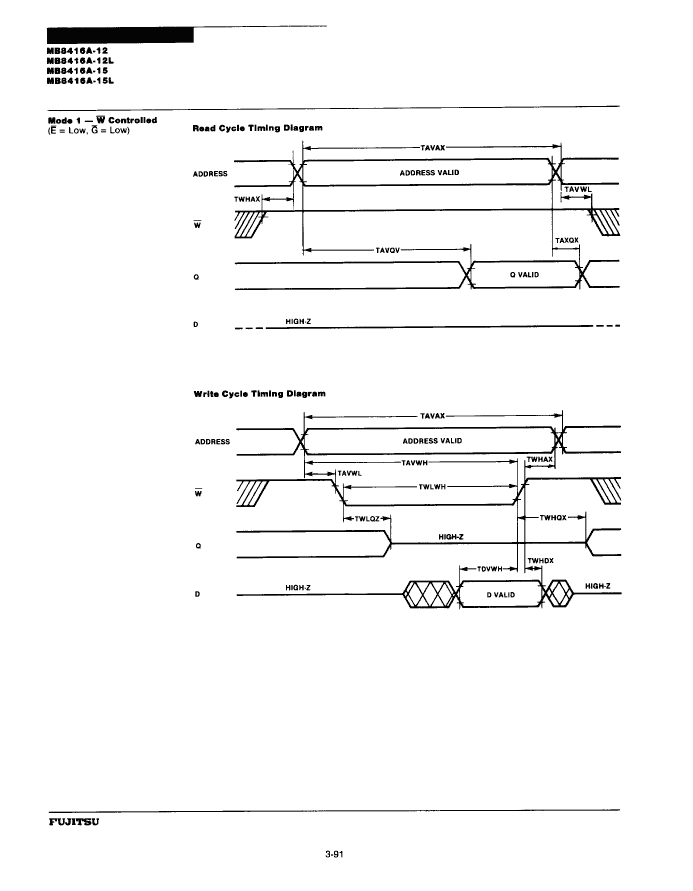

Preview

Download Datasheet

View All

5962-01-293-6609 Related Products

	5962-01-293-6609	5962-01-312-1996	MB8416-20PF	MB8416-25-WZ	MB8416A-15M	MB8416-25-WCV
Description	IC,SRAM,2KX8,CMOS,DIP,24PIN,PLASTIC	Standard SRAM, 2KX8, 200ns, CMOS, CDIP24,	Standard SRAM, 2KX8, 200ns, CMOS, PDSO24	Standard SRAM, 2KX8, 250ns, CMOS, CDIP24	Standard SRAM, 2KX8, 150ns, CMOS, PDIP24	Standard SRAM, 2KX8, 250ns, CMOS, CQCC32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	SOP, SOP24,.4	DIP, DIP24,.6	DIP, DIP24,.6	QCCN, LCC32,.45X.55
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown	unknown
Maximum access time	120 ns	200 ns	200 ns	250 ns	150 ns	250 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDIP-T24	R-XDIP-T24	R-PDSO-G24	R-XDIP-T24	R-PDIP-T24	R-XQCC-N32
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of terminals	24	24	24	24	24	32
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	85 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-55 °C	-	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP	DIP	QCCN
Encapsulate equivalent code	DIP24,.6	DIP24,.6	SOP24,.4	DIP24,.6	DIP24,.6	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0005 A	0.000001 A	0.00001 A	0.0003 A	0.0005 A	0.0003 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.065 mA	0.06 mA	0.065 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	INDUSTRIAL	MILITARY	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD
Objectid	1125526200	-	-	101230583	1942151448	101232067
ECCN code	3A001.A.2.C	-	-	3A001.A.2.C	EAR99	3A001.A.2.C
JESD-609 code	-	-	e0	e0	e0	e0
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
