5962-9466401MEX datasheet, PDF

5962-9466401MEX: DescriptionPHASE LOCKED LOOP, 1.4MHz, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size851KB，17 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

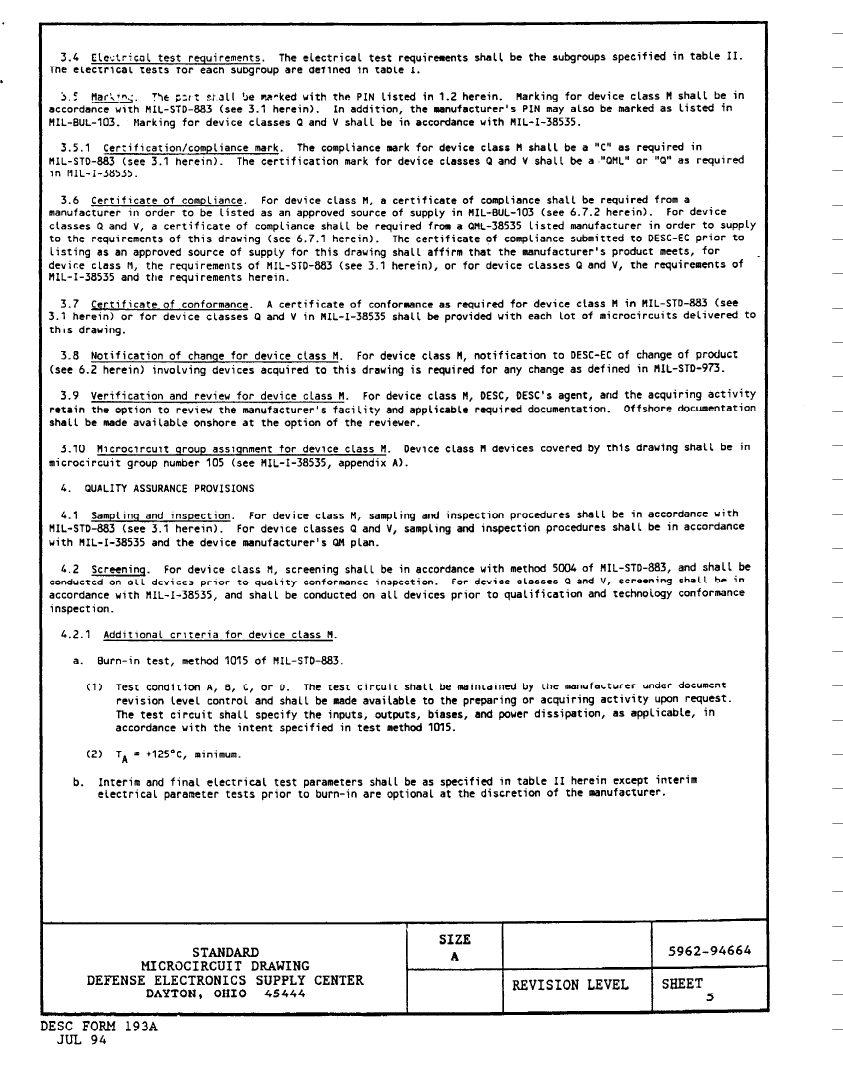

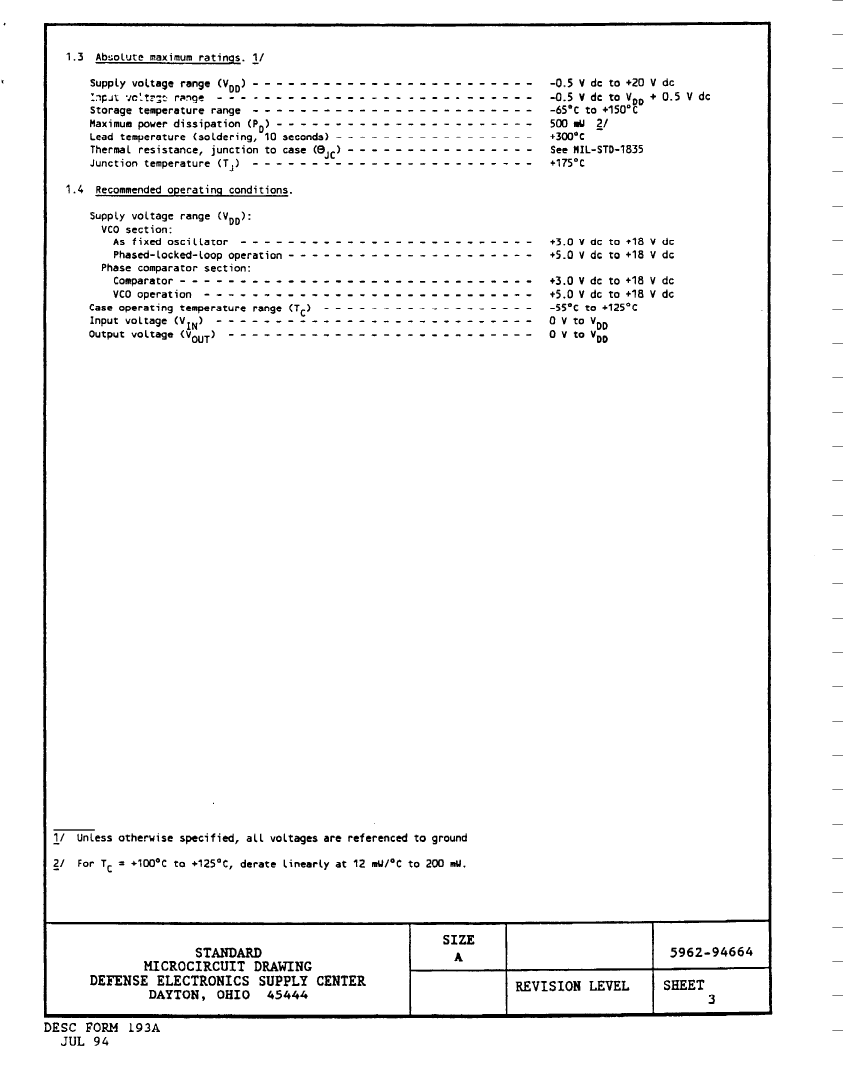

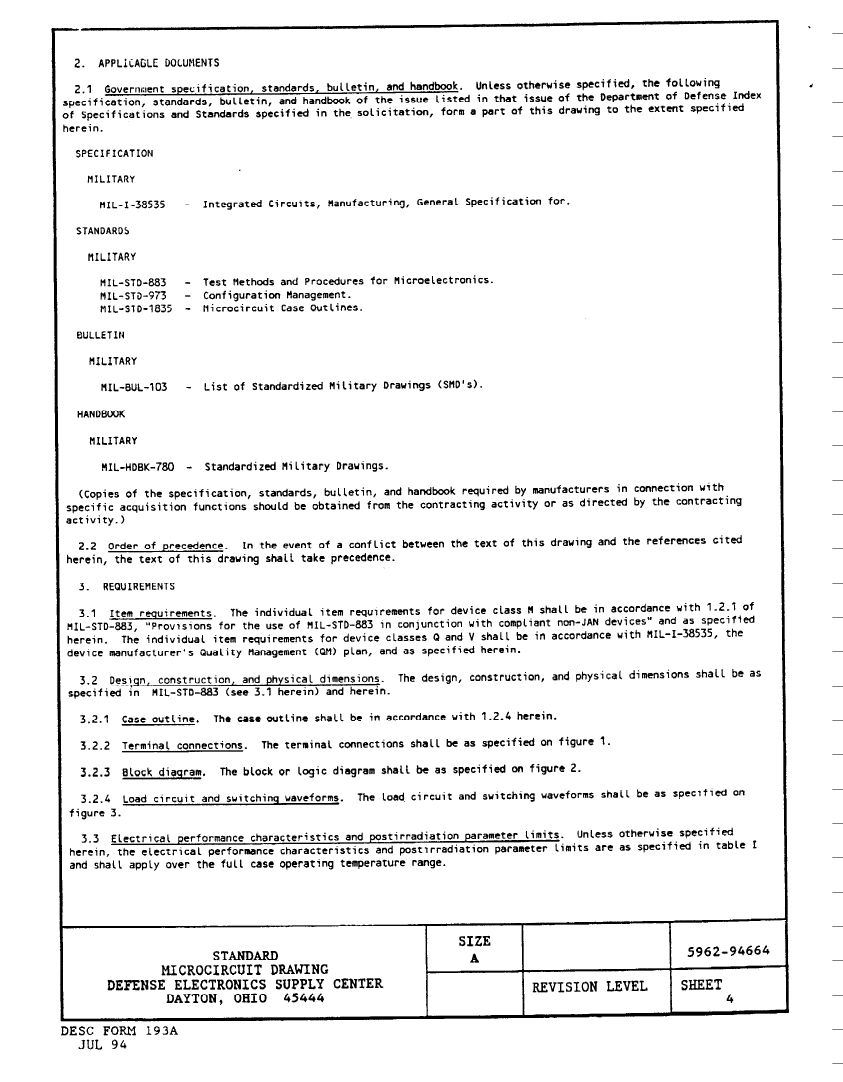

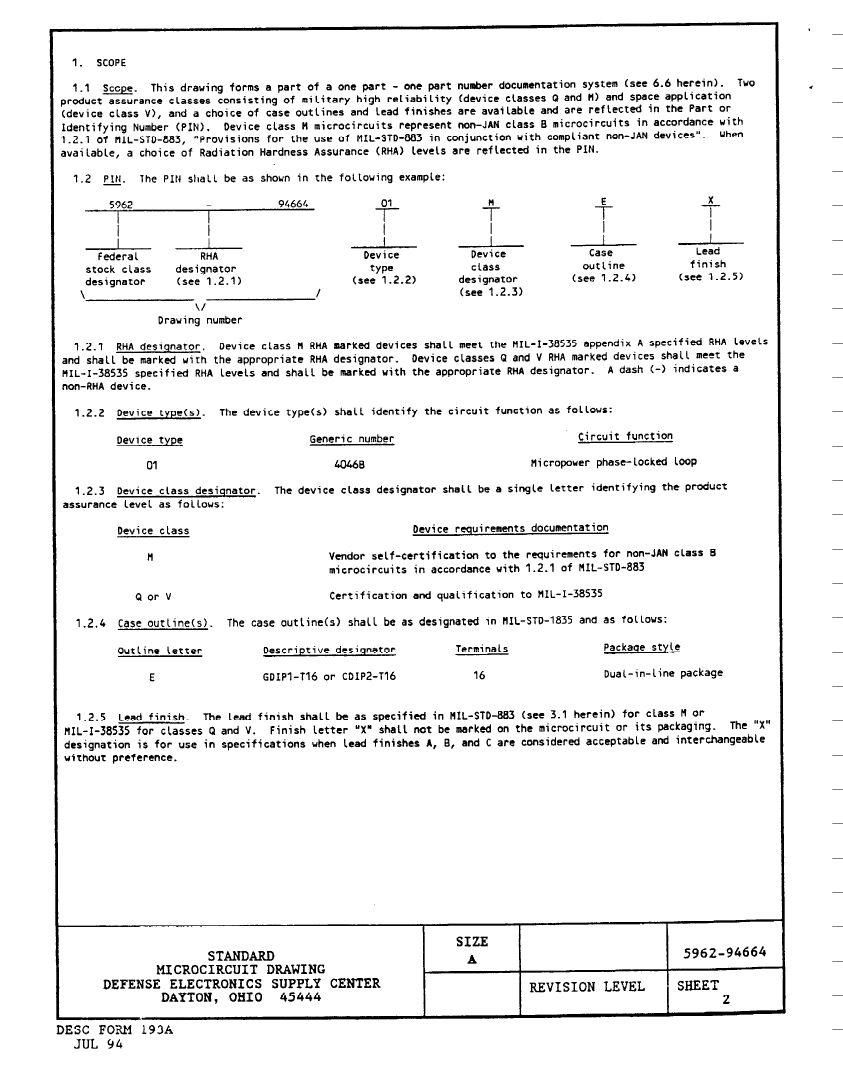

5962-9466401MEX Overview

PHASE LOCKED LOOP, 1.4MHz, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Objectid	1900173072
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP
JESD-30 code	R-GDIP-T16
length	19.56 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	10 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
