5962R9666401VEC

Description
PHASE LOCKED LOOP, 1.4MHz, CDIP16
CategoryAnalog mixed-signal IC    The signal circuit
File Size453KB,11 Pages
ManufacturerIntersil ( Renesas )
Websitehttp://www.intersil.com/cda/home/
Download Datasheet Parametric View All

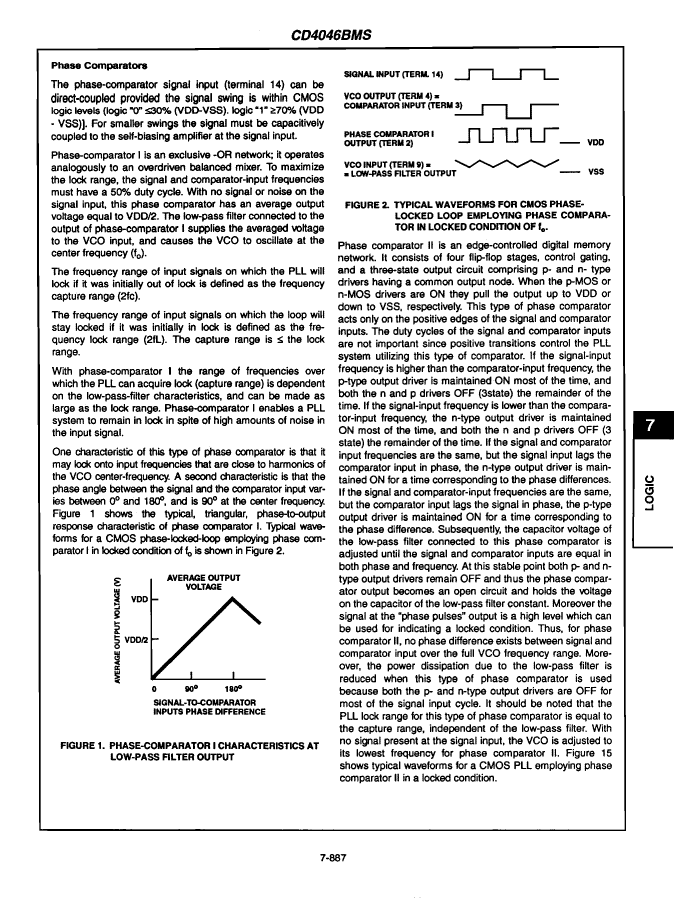

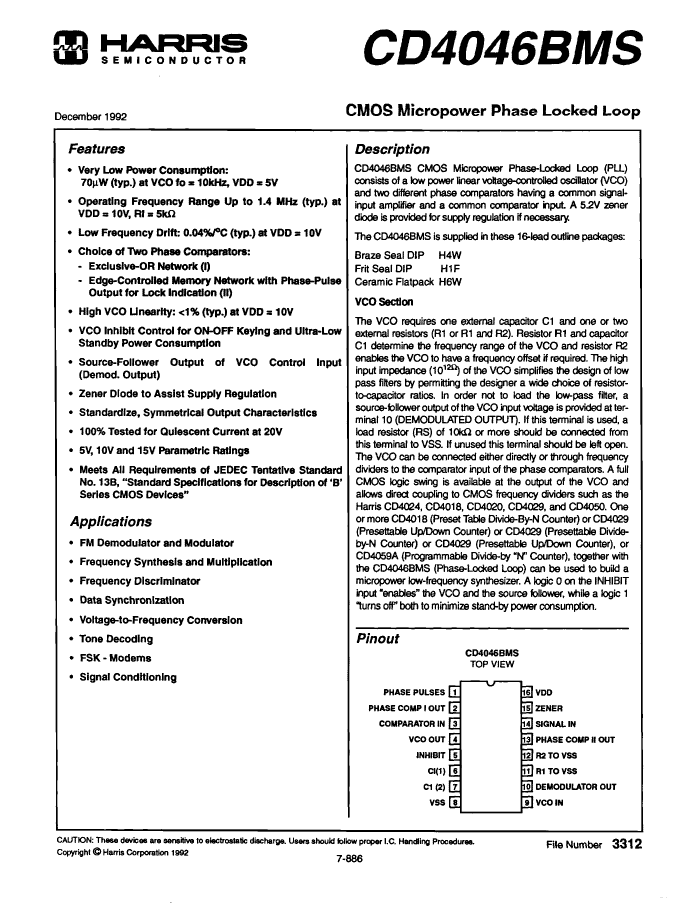

5962R9666401VEC Overview

PHASE LOCKED LOOP, 1.4MHz, CDIP16

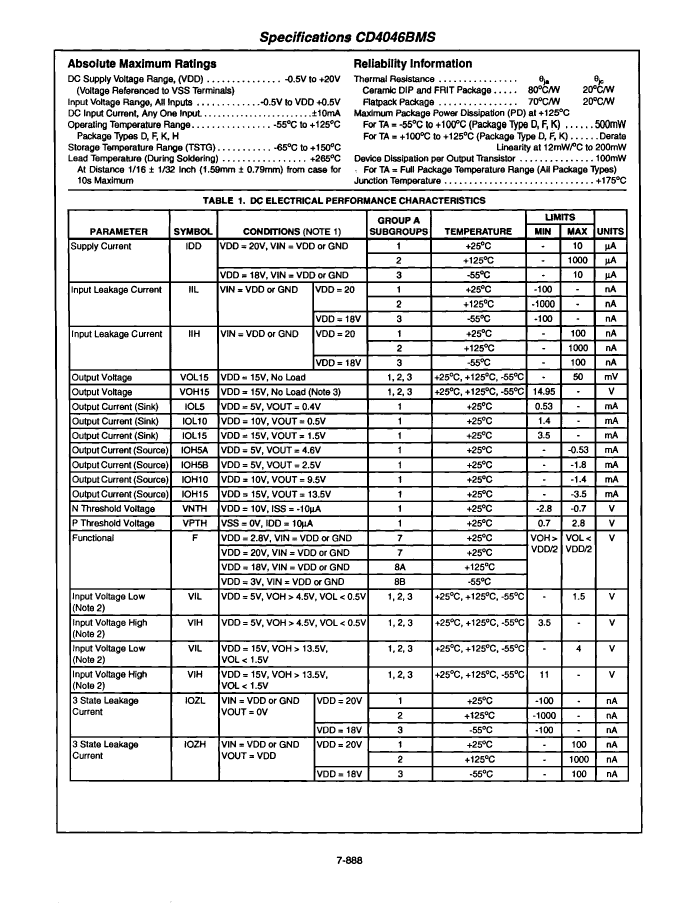

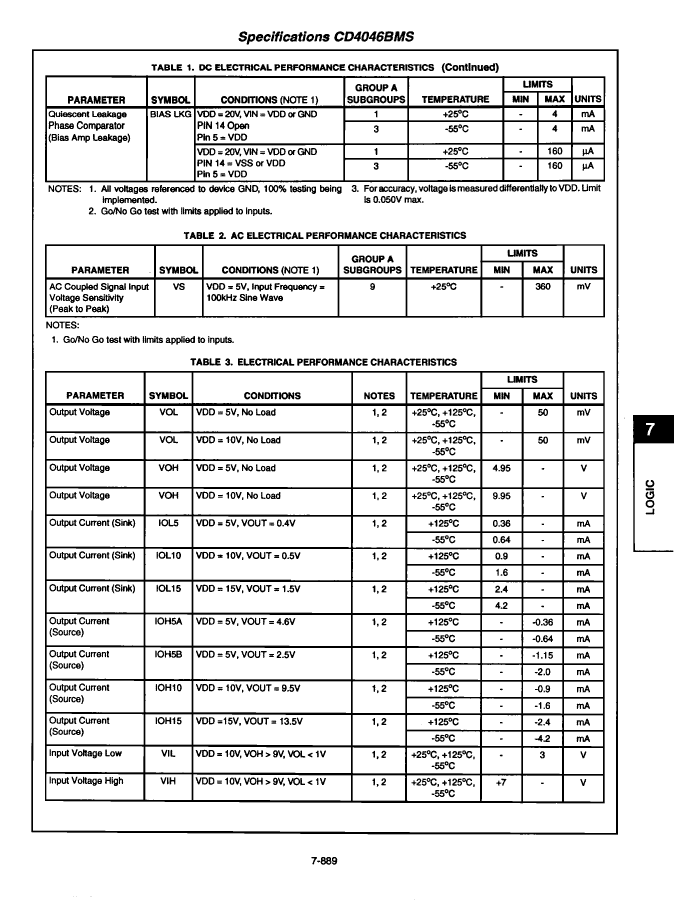

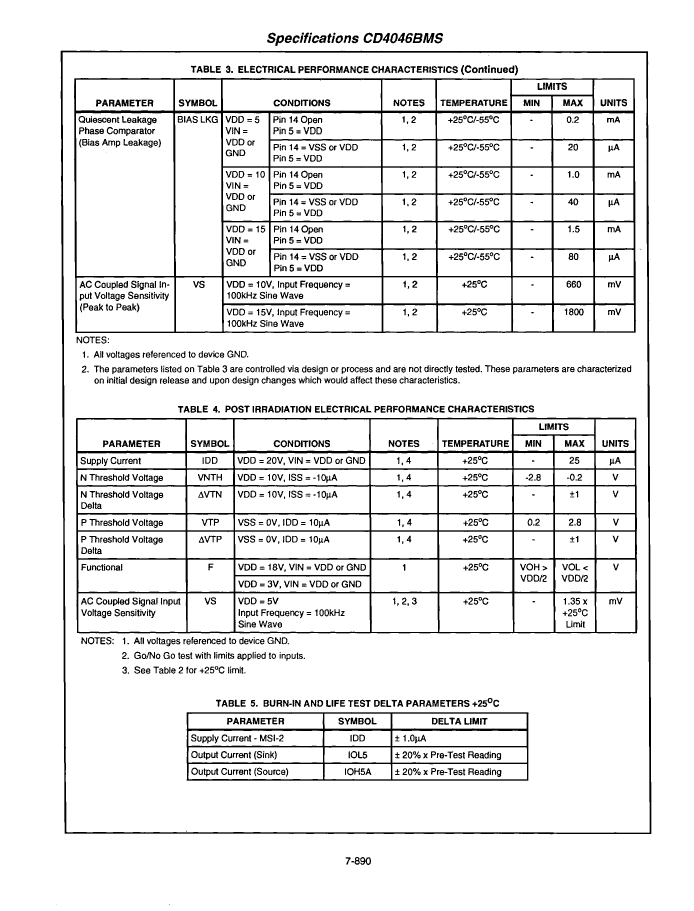

5962R9666401VEC Parametric

Parameter NameAttribute value
Objectid1532326276
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesPHASE LOCKED LOOP
JESD-30 codeR-CDIP-T16
JESD-609 codee4
length19.05 mm
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5/15 V
Certification statusNot Qualified
Filter levelMIL-PRF-38535 Class V
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)18 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
total dose100k Rad(Si) V
width7.62 mm
