L7C161DMB8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> L7C161DMB8

L7C161DMB8: DescriptionStandard SRAM, 16KX4, 8ns, CMOS, CDIP28; Categorystorage storage; File Size783KB，6 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

L7C161DMB8 Overview

Standard SRAM, 16KX4, 8ns, CMOS, CDIP28

L7C161DMB8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101201785
package instruction	DIP, DIP28,.3
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	8 ns
I/O type	SEPARATE
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	4
Humidity sensitivity level	3
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.00025 A
Minimum standby current	2 V
Maximum slew rate	0.21 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

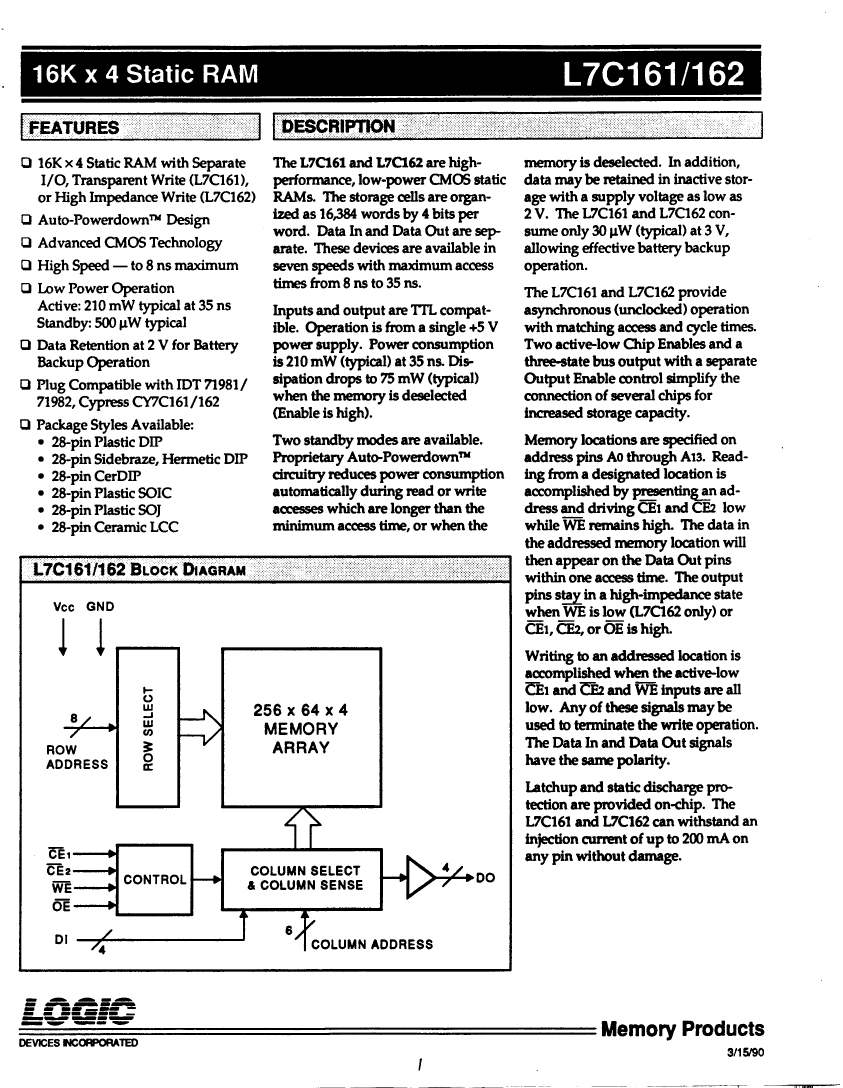

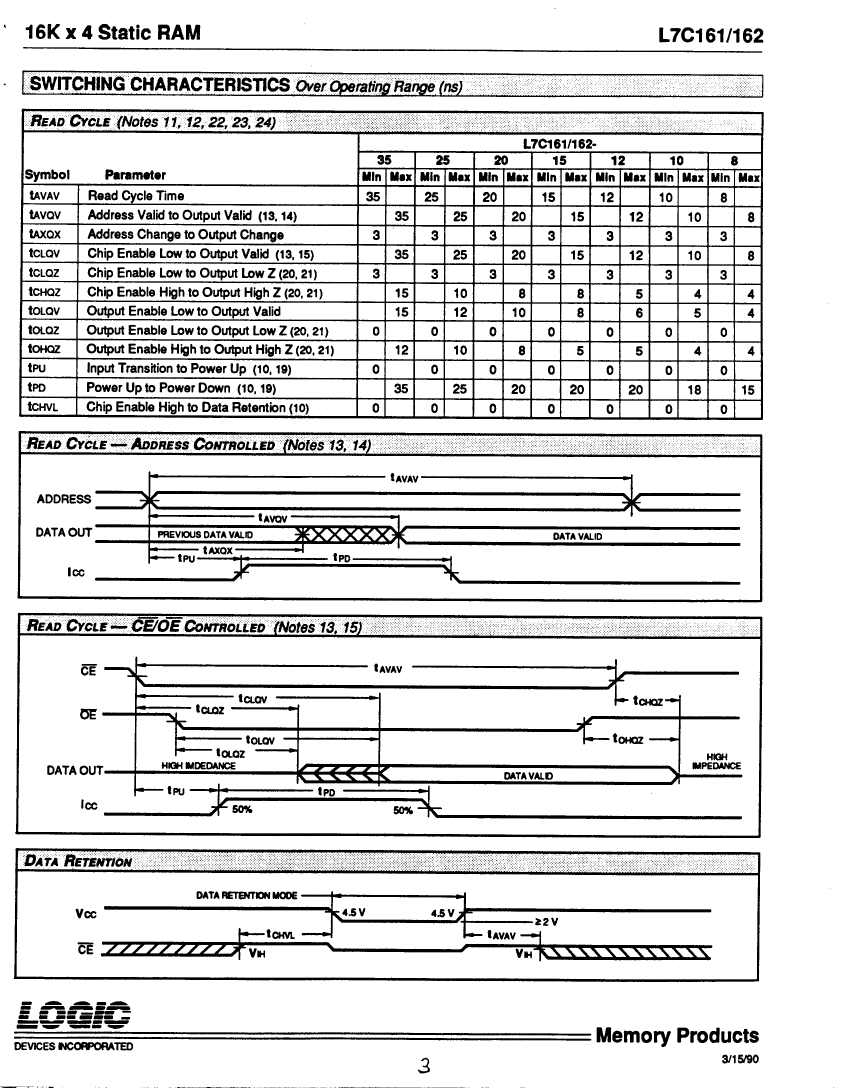

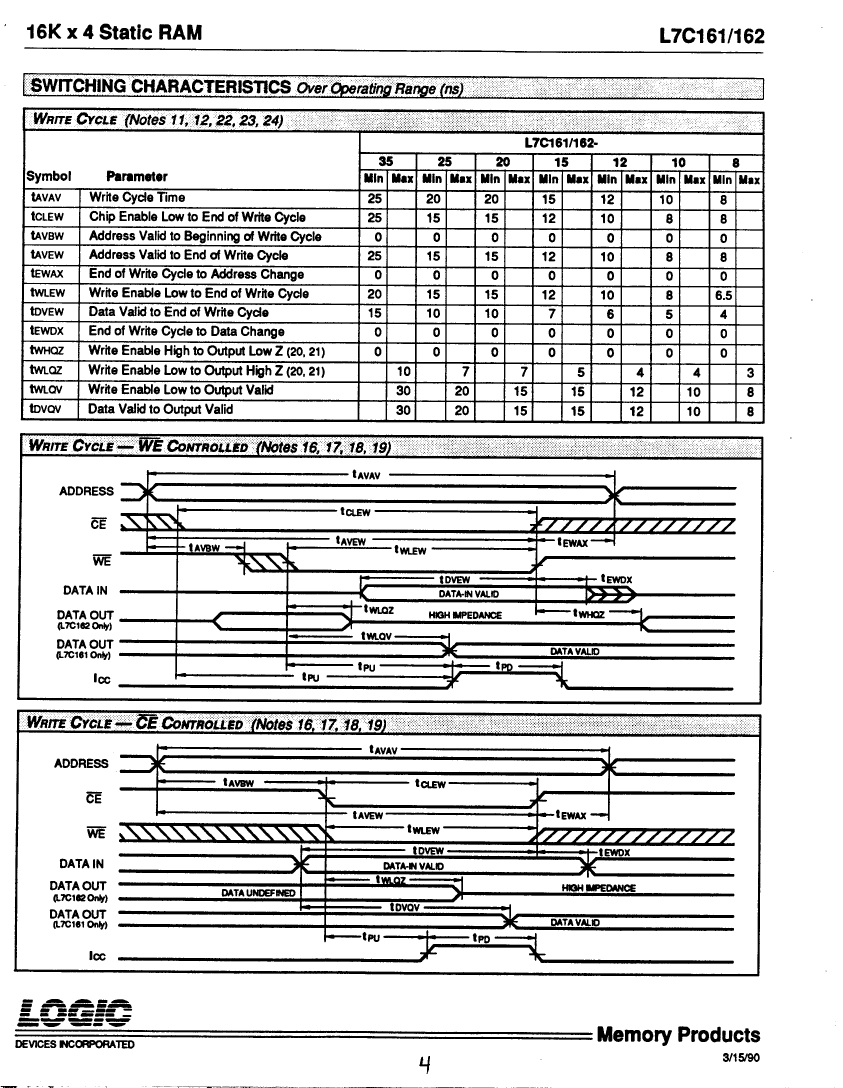

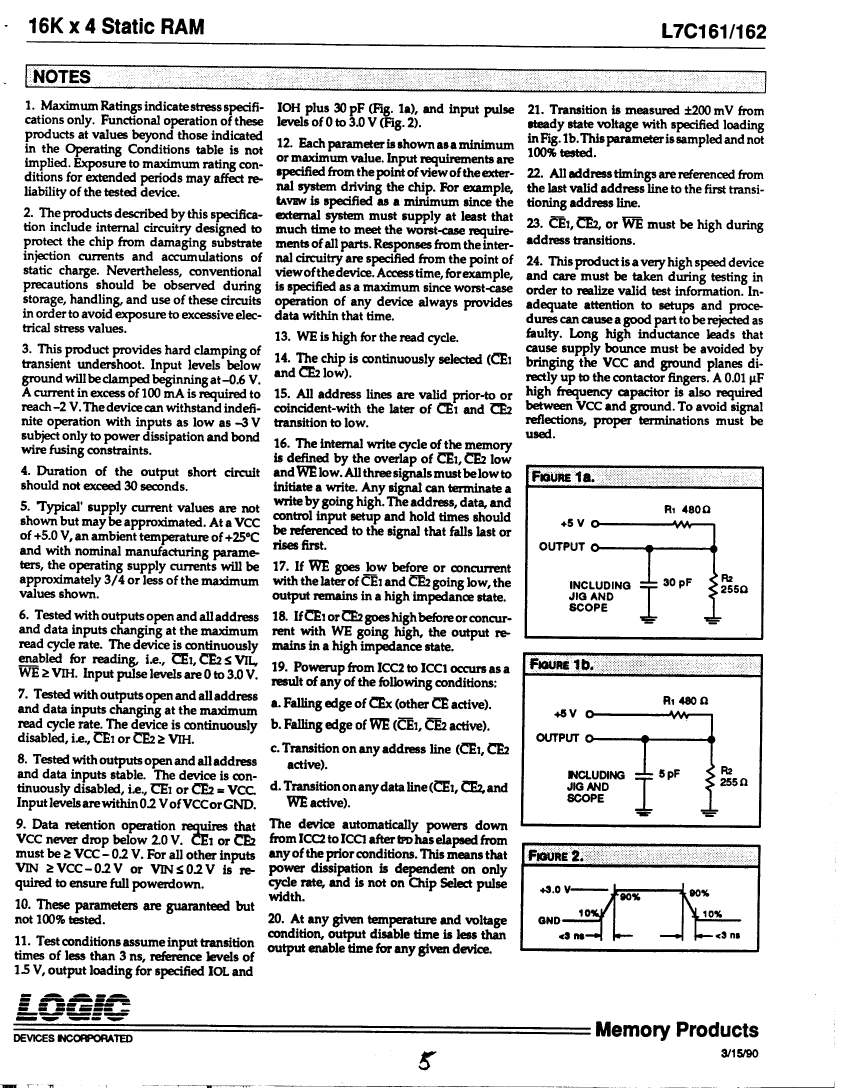

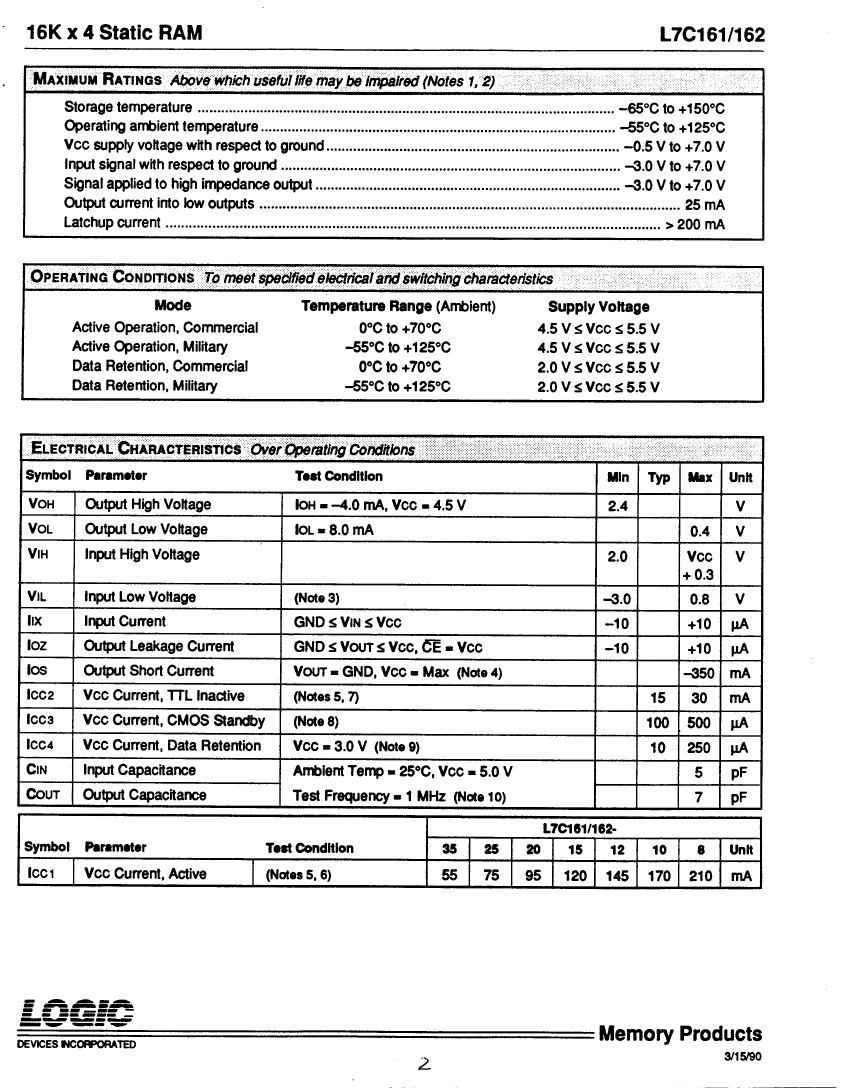

Preview

Download Datasheet

View All

L7C161DMB8 Related Products

	L7C161DMB8	L7C161CC45	L7C161CC85	L7C161DC45	L7C161DC85	L7C161CMB8
Description	Standard SRAM, 16KX4, 8ns, CMOS, CDIP28	Standard SRAM, 16KX4, 45ns, CMOS, CDIP28	Standard SRAM, 16KX4, 85ns, CMOS, CDIP28	Standard SRAM, 16KX4, 45ns, CMOS, CDIP28	Standard SRAM, 16KX4, 85ns, CMOS, CDIP28	Standard SRAM, 16KX4, 8ns, CMOS, CDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	8 ns	45 ns	85 ns	45 ns	85 ns	8 ns
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4
Humidity sensitivity level	3	3	3	3	3	3
Number of terminals	28	28	28	28	28	28
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.3	DIP28,.3	DIP28,.3	DIP28,.3	DIP28,.3	DIP28,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00025 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00025 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.21 mA	0.07 mA	0.045 mA	0.07 mA	0.045 mA	0.21 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	-
