TLM.32.
Vishay Semiconductors
Power SMD LED PLCC-4
FEATURES
• Available in 8 mm tape
• Luminous intensity and color categorized
per packing unit
e3
• Luminous intensity ratio per packing unit
I
Vmax
/I
Vmin
≤
1.6
• ESD-withstand voltage: up to 2 kV according to
JESD22-A114-B
• Suitable for all soldering methods according to
CECC 00802 and J-STD-020C
• Preconditioning: acc. to JEDEC level 2a
• Lead (Pb)-free device
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
APPLICATIONS
• Interior and exterior lighting
• Indicator and backlighting purposes for audio,
video, LCDs, switches, symbols, illuminated
advertising etc.
• Illumination purpose, alternative to incandescent
lamps
• General use
19210
DESCRIPTION
The TLM.32. is an advanced development in terms of
heat dissipation.
The leadframe profile of this PLCC-4 SMD package is
optimized to reduce the thermal resistance.
This allows higher drive current and doubles the light
output compared to Vishay’s high intensity SMD LED
in PLCC-2 package.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: SMD PLCC-4
• Product series: power
• Angle of half intensity: ± 60°
PARTS TABLE
PART
TLMK32T2V1-GS18
TLMK32U2AA-GS18
TLMK32T2AA-GS18
TLMS32S2U1-GS18
TLMS32T1U2-GS18
TLMS32S2V1-GS18
TLMO32U2AA-GS18
TLMO32T2V1-GS18
TLMO32U1AA-GS18
TLMY32T2V1-GS18
TLMY32U2AA-GS18
TLMY32T2AA-GS18
COLOR, LUMINOUS INTENSITY
Red, I
V
= (355 to 900) mcd
Red, I
V
= (560 to 1400) mcd
Red, I
V
= (355 to 1400) mcd
Super red, I
V
= (224 to 560) mcd
Super red, I
V
= (280 to 710) mcd
Super red, I
V
= (224 to 900) mcd
Soft orange, I
V
= (560 to 1400) mcd
Soft orange, I
V
= (355 to 900) mcd
Soft orange, I
V
= (450 to 1400) mcd
Yellow, I
V
= (355 to 900) mcd
Yellow, I
V
= (560 to 1400) mcd
Yellow, I
V
= (355 to 1400) mcd
TECHNOLOGY
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
Document Number 81284
Rev. 1.0, 22-Feb-08
www.vishay.com
1
TLM.32.
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
1)
TLMK32., TLMS32., TLMO32., TLMY32.
PARAMETER
Reverse voltage
Forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Thermal resistance junction/ambient
mounted on PC board FR4
optional paddesign
mounted on PC board FR4
recommended paddesign
2)
TEST CONDITION
SYMBOL
V
R
I
F
P
tot
T
j
T
amb
T
stg
R
thJA
R
thJA
VALUE
5
70
180
125
- 40 to + 100
- 40 to + 100
290
270
UNIT
V
mA
mW
°C
°C
°C
K/W
K/W
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
Driving the LED in reverse direction is suitable for short term application
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMK32., RED
PARAMETER
Luminous intensity
2)
Luminous flux
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
3)
Reverse current
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
TLMK32..
TEST CONDITION
I
F
= 50 mA
PART
TLMK32T2V1
TLMK32U2AA
TLMK32T2AA
SYMBOL
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
1.85
612
MIN.
355
560
355
3
617
624
18
± 60
2.1
0.01
2.55
10
624
TYP.
MAX.
900
1400
1400
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmax
/I
Vmin
≤
1.6
3)
Forward voltage is tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMS32., SUPER RED
PARAMETER
Luminous intensity
2)
Luminous flux
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
3)
Reverse current
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
TEST CONDITION
I
F
= 50 mA
PART
TLMS32S2U1
TLMS32T1U2
TLMS32S2V1
SYMBOL
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
1.85
626
MIN.
224
280
224
3
630
641
17
± 60
2.1
0.01
2.55
10
638
TYP.
MAX.
560
710
900
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmax
/I
Vmin
≤
1.6
3)
Forward voltage is tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
www.vishay.com
2
Document Number 81284
Rev. 1.0, 22-Feb-08
TLM.32.
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMO32., SOFT ORANGE
PARAMETER
Luminous intensity
2)
Luminous flux
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
3)
Reverse current
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
TEST CONDITION
I
F
= 50 mA
PART
TLMO32T2V1
TLMO32U2AA
TLMO32U1AA
SYMBOL
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
1.85
600
MIN.
355
560
450
3
605
611
17
± 60
2.1
0.01
2.55
10
609
TYP.
MAX.
900
1400
1400
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmax
/I
Vmin
≤
1.6
3)
Forward voltage is tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMY3214, YELLOW
PARAMETER
Luminous intensity
2)
Luminous flux
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
3)
Reverse current
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
TEST CONDITION
I
F
= 50 mA
PART
TLMY32T2V1
TLMY32U2AA
TLMY32T2AA
SYMBOL
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
1.85
580
MIN.
355
560
355
3
588
590
18
± 60
2.1
0.01
2.55
10
595
TYP.
MAX.
900
1400
1400
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmax
/I
Vmin
≤
1.6
3)
Forward voltage is tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
S
T
U
V
A
1
2
1
2
1
2
1
2
A
LIGHT INTENSITY (MCD)
OPTIONAL
MIN.
180
224
280
355
450
560
710
900
1120
MAX.
224
280
355
450
560
710
900
1120
1400
Note:
Luminous intensity is tested at a current pulse duration of 25 ms and
an accuracy of ± 11 %.
The above type numbers represent the order groups which include
only a few brightness groups. Only one group will be shipped on
each reel (there will be no mixing of two groups on each reel). In
order to ensure availability, single brightness groups will not be
orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped on
any one reel.
In order to ensure availability, single wavelength groups will not be
orderable.
Document Number 81284
Rev. 1.0, 22-Feb-08
www.vishay.com
3
TLM.32.
Vishay Semiconductors
COLOR CLASSIFICATION
YELLOW
GROUP
MIN.
1
2
3
4
5
6
581
583
585
587
589
591
MAX.
584
586
588
590
592
594
600
602
604
606
608
603
605
607
609
611
SOFT ORANGE
MIN.
MAX.
DOM. WAVELENGTH (NM)
CROSSING TABLE
VISHAY
TLMK32T2V1
TLMK32U2AA
TLMK32T2AA
TLMS32S2U1
TLMS32T1U2
TLMS32S2V1
TLMO32U2AA
TLMY32T2V1
TLMY32U2AA
TLMY32T2AA
OSRAM
LAE67BT2V1
LAE67BU2AA
LAE67BT2AA
LSE67AS2U1
LSE67AT1U2
LSE67AS2V1
LOE67BU2AA
LYE67BT2V1
LYE67BU2AA
LYE67BT2AA
Note:
Wavelengths are tested at a current pulse duration of 25 ms and an
accuracy of ± 1 nm.

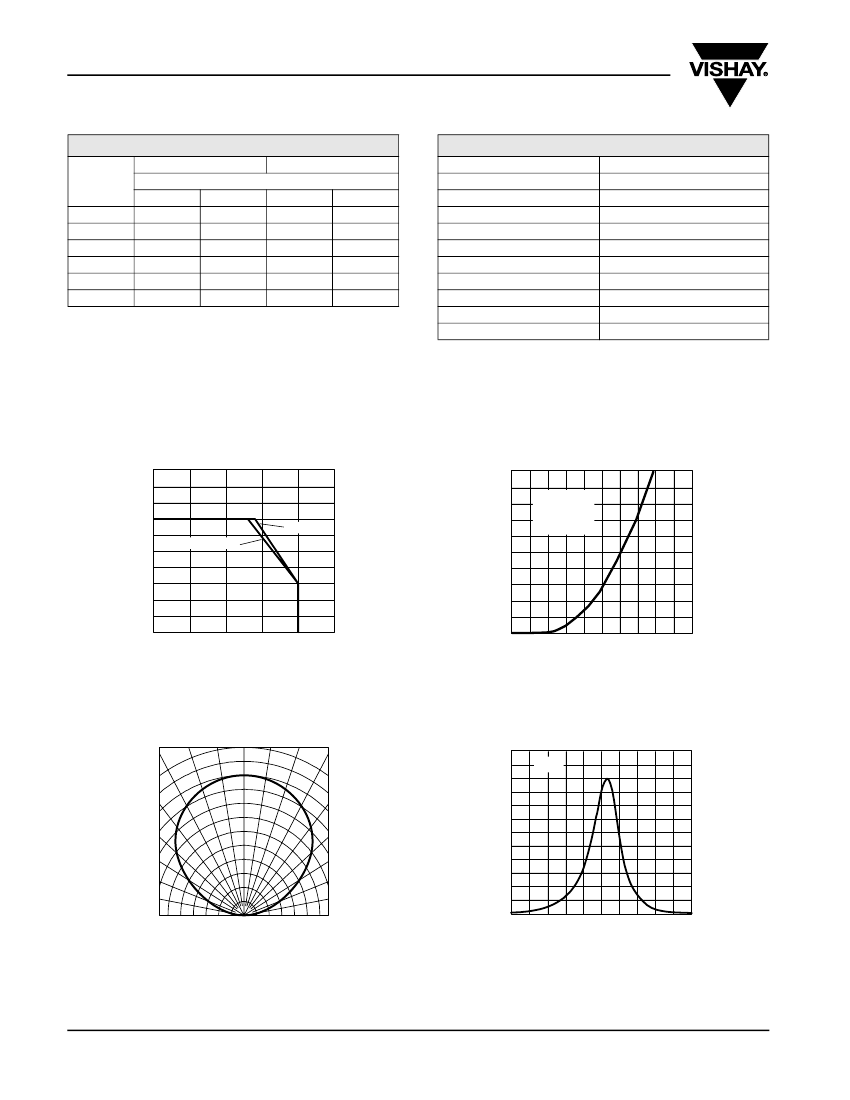

TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
100
90
100
90
80
70
60
50
40
30
20
10
0
1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5
17046
I
F
- Forward Current (mA)
70
60
50
40
30
20
10
0
0
25
50
75
100
T
amb
- Ambient Temperature (°C)
125
270 K/W
R
thJA
= 290 K/W
I
F
- Forward Current (mA)
80
yellow
soft orange
red
super red
18568
V
F
- Forward
Voltage
(V)
Figure 1. Forward Current vs. Ambient Temperature
Figure 3. Forward Current vs. Forward Voltage
0°
10°
20°
30°
1.2
I
V
rel
- Relative Luminous Intensity
I
V
rel
- Relative Luminous Intensity
red
1.0
0.8
0.6
0.4
0.2
0.0
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.2
0.4
0.6
95 10319
570
16007
590
610
630
650
670
λ
-
Wavelength
(nm)
Figure 2. Rel. Luminous Intensity vs. Angular Displacement
Figure 4. Relative Intensity vs. Wavelength
www.vishay.com
4
Document Number 81284
Rev. 1.0, 22-Feb-08
TLM.32.
Vishay Semiconductors
V
F
- Change of Forward
Voltage
(mV)
250
I
V
rel
- Relative Luminous Intensity
10
red
200
150
100
50
0
- 50
- 100
- 150
- 200
- 50
- 25
0
25
50
75
100
10 mA
30 mA
50 mA
red
1
0.1
0.01
1
17037
17034
T
amb
- Ambient Temperature (°C)
10
I
F
- Forward Current (mA)
100
Figure 5. Change of Forward Voltage vs. Ambient Temperature
Figure 8. Relative Luminous Intensity vs. Forward Current
2.5
I
V
rel
- Relative Luminous Intensity
red
2.0
1.5
1.0
0.5
0.0
- 50
17035
- Change of Dom.
Wavelength
(nm)
1.5
red
1.0
0.5
0.0
- 0.5
- 1.0
- 1.5
- 25
0
25
50
75
100
17038
d
T
amb
- Ambient Temperature (°C)
10 20 30 40 50 60 70
80
90 100
I
F
- Forward Current (mA)
Figure 6. Relative Luminous Intensity vs. Ambient Temperature
Figure 9. Change of Dominant Wavelength vs. Forward Current
- Change of Dom.
Wavelength
(nm)
6
red
4
2
0
-2
-4
-6
- 50
I
V
rel
- Relative Luminous Intensity
- 25
0
25
50
75
100
1.2
1.1
super red
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
600
620
d
640
660
680
700
17036
T
amb
- Ambient Temperature (°C)
17045
λ
-
Wavelength
(nm)
Figure 7. Change of Dominant Wavelength vs.
Ambient Temperature
Figure 10. Relative Intensity vs. Wavelength
Document Number 81284
Rev. 1.0, 22-Feb-08
www.vishay.com
5
京公网安备 11010802033920号
EEWORLD
