85824-208 datasheet, PDF - EEWORLD Datasheet

85824-208: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

85824-208 Overview

Board Connector, 96 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Objectid	1177536305
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TUBE PACKAGING
body width	0.543 inch
subject depth	1.207 inch
body length	1.888 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	85824
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	79u inch
polarization key	POLARIZING PEG
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.107 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	96

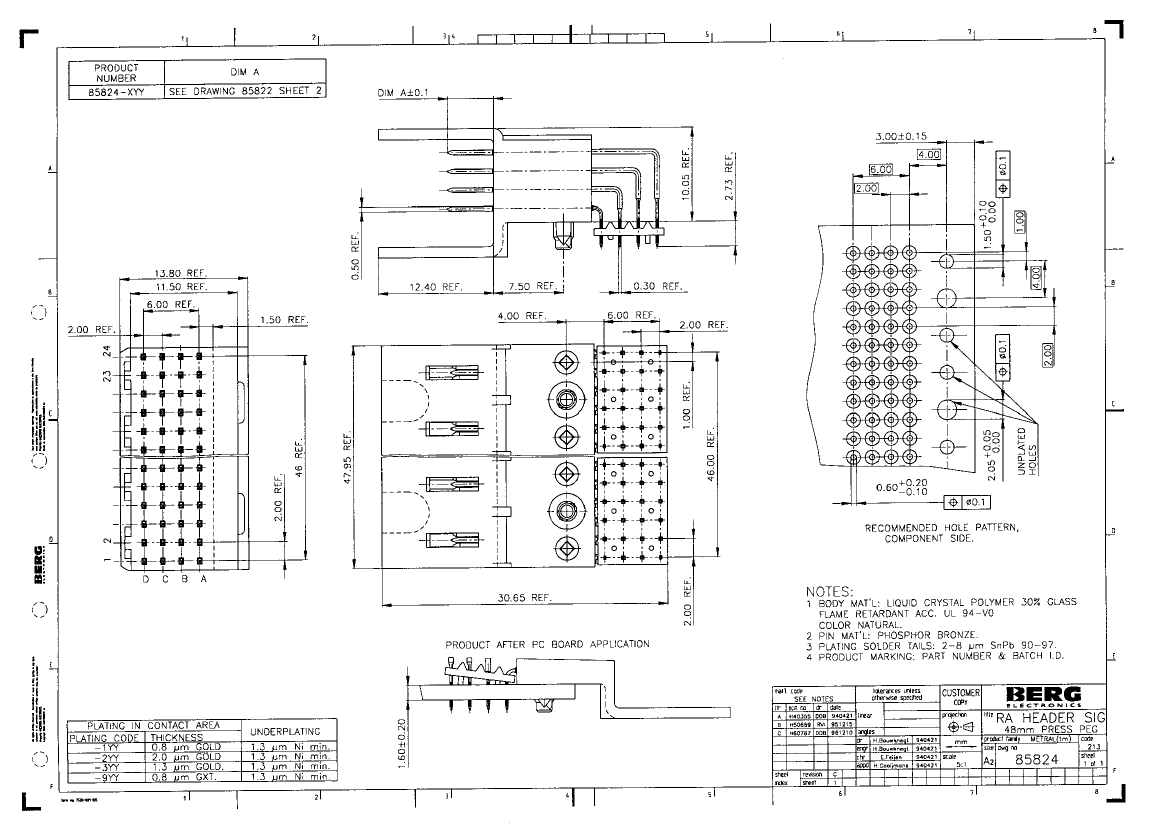

PDM: Rev:C

STATUS:

Released

Printed: Apr 16, 2002
